KKS_YG12_PL - 第10页
2 3 Feeder Holder (24) Feeder Holder KKS-101 1 1 1 13 28 4 12 33 28 5 10 7 28 32 22 6 1 2 20 26 34 3 29 18 24 8 31 27 25 19 28 30 27 9 20 31 24 21 15 14 17 17 17 16 23 28 36 35 No. Part No. Part Name Q'ty Remarks Co…
1
3
Feeder Holder (60)
Feeder Holder
KKS-1011
28
11
13
5
12
36
33
4
21
10
35
10
23
24
27
31
8
29
32
19
25
30
7
1
2
26
34
28
28
OLD
28
3
6
22
29
32
18
9
20
32
23
27
31
29
24
15
17
14
16
17
17
17
17
17
23
18
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date

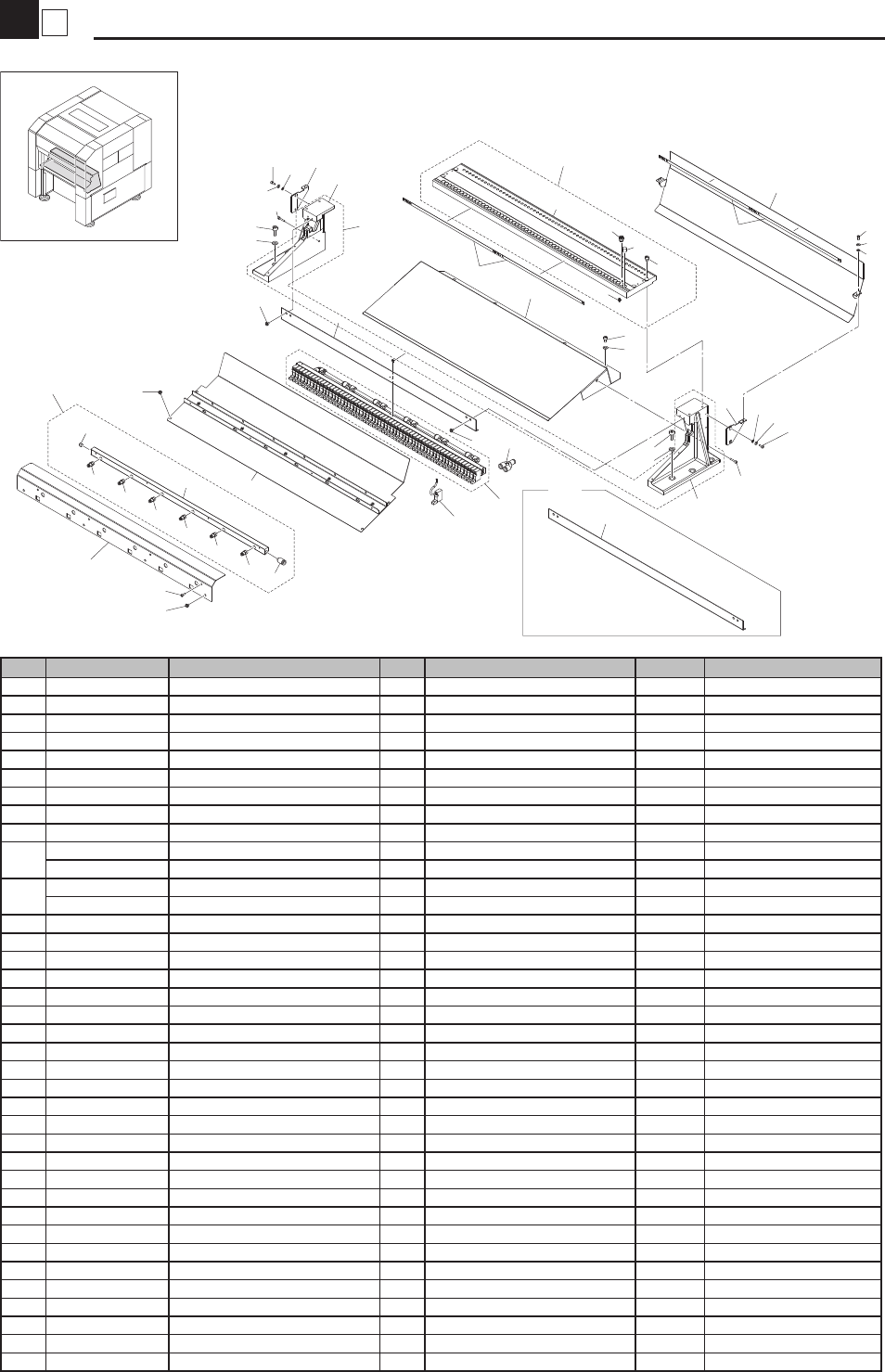

1 KKS-M3401-C0 FEEDER PLATE ASSY.60 1
2 KJV-M3401-01 PLATE,FEEDER 60 1
3 KJV-M3407-A0 JOINT ASSY 59
4 $BF4BU JOINT 59
5 KJV-M3402-00 GUIDE 1,TAPE 1
6 KJV-M3403-01 GUIDE 2,TAPE 1
7 KJV-M3404-00 GUIDE 3,TAPE 1
8 KJV-M3405-00 STAND,1 1
9 KJV-M3406-00 STAND,2 1
10
KJV-M3408-01 BRACKET,VALVE 1 Height 37mm NG MG50094-2010/5/25
KJV-M3408-00 BRACKET,VALVE 1 Height 33mm
11
KJV-M3409-01 COVER,VALVE 1 OK MG20030-2010/2/10
KJV-M3409-00 COVER,VALVE 1
12 KJV-M3410-10 VALVE ASSY,60-R 1
13 KHY-M3410-10 MANIFOLD ASSY 2 1
14 KHY-M3411-00 MANIFOLD 1
15 K40-M8598-00 PLUG 1 1
16 $TSH8-01 JOINT 1
17 $TSS4-01 JOINT 6
18 KHY-M3430-20 LABEL,FEEDER 60-12P 1
19 KJV-M3411-00 GUIDE TAPE BRACKET,R 1
20 KJV-M3412-00 GUIDE TAPE BRACKET,L 1
21 91312-03006 BOLT HEX.SOCKET HEAD 6 M3X6
22 91312-04008 BOLT HEX.SOCKET HEAD 2 M4X8
23 91312-04010 BOLT HEX.SOCKET HEAD 8 M4X10
24 91312-04020 BOLT HEX.SOCKET HEAD 2 M4X20
25 91312-06010 BOLT HEX.SOCKET HEAD 4 M6X10
26 91312-06022 BOLT HEX.SOCKET HEAD 4 M6X8
27 91312-08020 BOLT HEX.SOCKET HEAD 6 M8X20
28 90990-12J001 SCREW BIN.HEAD W/W 12
29 92902-04200 WASHER PLAIN 6
30 92902-06200 WASHER PLAIN 4
31 92902-08600 WASHER PLAIN 6
32 90172-00J040 WASHER,EXTL.TOOTHED 6
33 KGA-M37P0-00 VALVE KIT 1 Spare
34 KKS-M3413-00 PLUG JOINT 1
35 KJV-M3405-S0 STAND,1/2 SET 1 OK MG30148-2010/4/5
36 $UYD10-6 JOINT 1 OK MF90115-209/9/18
2
3
Feeder Holder (24)
Feeder Holder
KKS-1011
11
13
28
4
12
33
28
5
10
7
28
32
22
6
1
2
20
26
34
3
29
18
24
8
31
27
25
19
28
30
27
9
20
31
24
21
15
14
17
17
17
16
23
28
36
35
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1

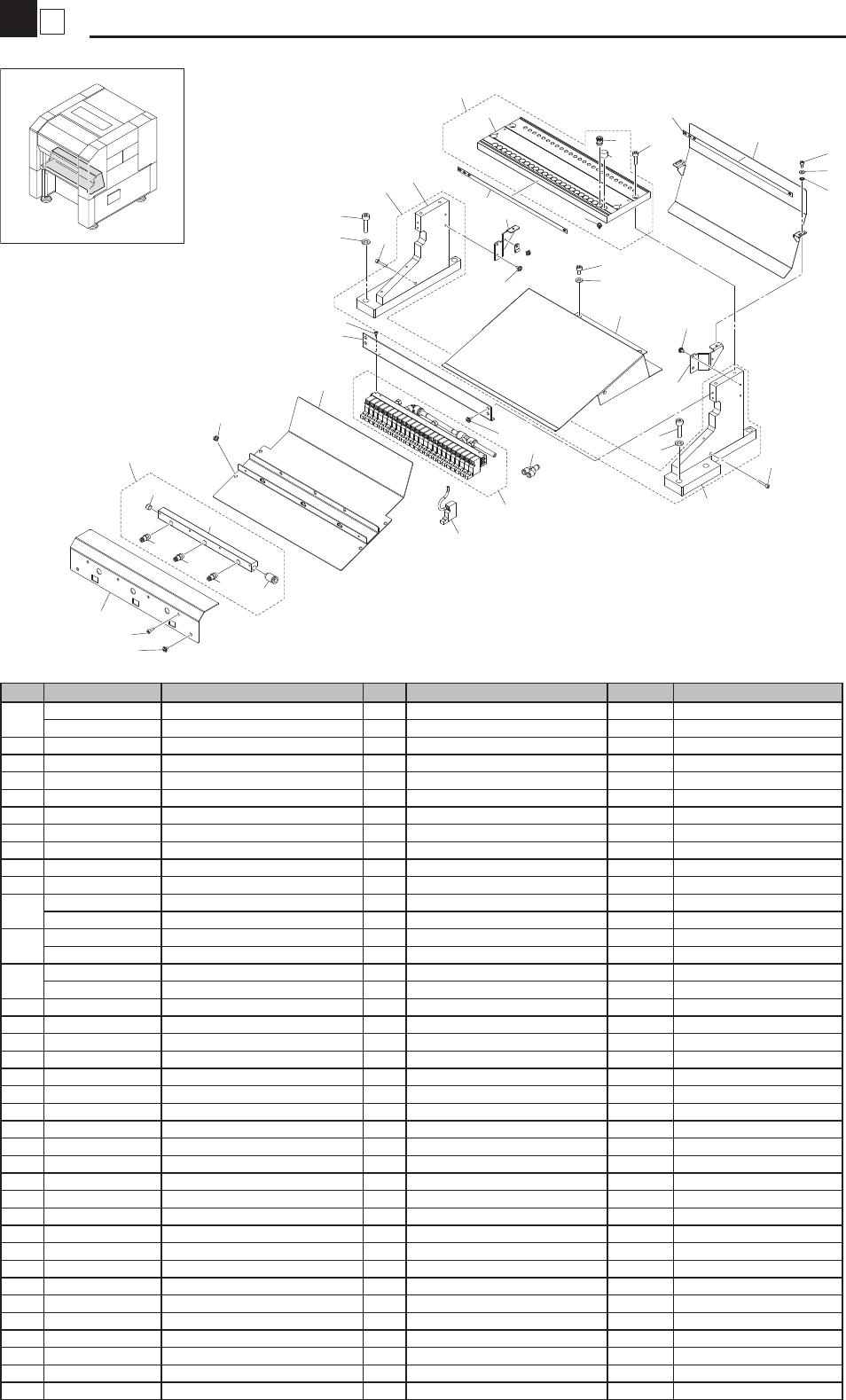

KKS-M3401-A0 FDR.PLATE ASSY.24-R 1 R
KKS-M3401-B0 FDR.PLATE ASSY.24-L 1 L
2 KKS-M3401-00 PLATE,FEEDER 24 1
3 KJV-M3407-A0 JOINT ASSY 24
4 $BF4BU JOINT 24
5 KKS-M3402-00 GUIDE 1,TAPE 1
6 KKS-M3403-00 GUIDE 2,TAPE 1
7 KKS-M3404-00 GUIDE 3,TAPE 1
8 KKS-M3405-00 STAND,1 1
9 KKS-M3406-00 STAND,2 1
10 KKS-M3408-00 BRACKET,VALVE 1
11
KKS-M3409-01 COVER,VALVE 1 OK MG20030-2010/2/10
KKS-M3409-00 COVER,VALVE 1
12
KKS-M3410-00 VALVE ASSY,24-R 1 R
KKS-M3410-10 VALVE ASSY,24-L 1 L
13
KJH-M3410-10 MANIFOLD ASSY 1 R
KKJ-M3410-00 MANIFOLD ASSY 1 L
14 KJH-M3411-00 MANIFOLD 1
15 K40-M8598-00 PLUG 1 1
16 $TSH8-01 JOINT 1
17 $TSS4-01 JOINT 3
18 KKS-M3411-00 GUIDE TAPE BRACKET,R 1
19 KKS-M3412-00 GUIDE TAPE BRACKET,L 1
20 KHY-M3430-00 LABEL,FEEDER 24-12P 1
21 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
22 91312-04008 BOLT HEX.SOCKET HEAD 2 M4X8
23 91312-04010 BOLT HEX.SOCKET HEAD 4 M4X10
24 91312-04022 BOLT HEX.SOCKET HEAD 2 M4X22
25 91312-06010 BOLT HEX.SOCKET HEAD 2 M6X10
26 91312-06020 BOLT HEX.SOCKET HEAD 4 M6X20
27 91312-08030 BOLT HEX.SOCKET HEAD 6 M8X30
28 90990-12J001 SCREW BIN.HEAD W/W 14
29 92902-04200 WASHER PLAIN 2
30 92902-06200 WASHER PLAIN 2
31 92902-08600 WASHER PLAIN 6
32 90172-00J040 WASHER,EXTL.TOOTHED 2
33 KGA-M37P0-00 VALVE KIT 1 Spare
34 KKS-M3413-00 PLUG JOINT 1
35 KKS-M3405-S0 STAND,1/2 SET 1 OK MG30148-2010/4/5
36 $UYD10-6 JOINT 1 OK MF90115-209/9/18
3
3
Reel Holder
Feeder Holder
KKS-1011
7
8
8
8
8
4
20
23
22
1
3
2
20
23
22
19
19
9
10
20
23
19
19
19
24
22
20
23
10
12
11
12
17
18
12
12
14
13
13
16
21
21
15
4
39
39
39
39
39
39
39
39
6
6
5
5
OLD
25
26
26
28
28
29
34
23
36
36
35
34
34
35
34
23
31
38
23
20
32
33
32
33
32
33
32
30
28
OLD
28
36
29
27
27
37
20
24
22
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KJV-M3S00-00 REEL HOLDER 60 ASSY 1
2 KHY-M3R01-00 SIDE PLATE,R 1
3 KHY-M3R02-00 SIDE PLATE,L 1
4
KHY-M3S06-03 STOPPER PLATE 1 NG MF00041-2009/10/14
KHY-M3S06-02 STOPPER PLATE 1
5
KHY-M3S0A-01 STAY,SHAFT 3 NG MF00041-2009/10/14
KHY-M3S0A-00 STAY,SHAFT 3
6 KHY-M3S07-01 TRIM 2
7 KHY-M3S08-00 UNDER COVER 1
8 KHY-M3S09-00 SHAFT,ROLLER 4
9 KHY-M3R10-02 REEL PUT 30
10 KHY-M3R14-00 COLLAR 2
11 KHW-M1385-00 SPACER 32
12 KHY-M3R15-00 ROLLER 98
13 KHY-M3S15-00 ROLLER 2 2
14 KHY-M3R16-00 PARTITION 15
15 KHY-M3R22-00 GUIDE,PARTITION 7
16 KHY-M3S22-00 GUIDE 2,PARTITION 1
17 KHY-M3R23-00 COLLAR,PARTITION 29
18 KHY-M3S23-00 COLLAR 2,PARTITION 1
19 91312-06012 BOLT HEX.SOCKET HEAD 8 M6X12
20 91312-04008 BOLT HEX.SOCKET HEAD 6 M4X8
21 91312-03014 BOLT,HEX.SOCKET HEAD 16 M3X14
22 91312-03005 BOLT HEX.SOCKET HEAD 12 M3X5
23 92902-04200 WASHER PLAIN 10
24 92902-03200 WASHER PLAIN 8
25 KJV-M3S21-00 FRAME 1,REEL HOL. 1
26
KJV-M3S22-00 FRAME 2,REEL HOL. 2 OK MG30166-2010/4/8
KKA-M3S22-00 FRAME 2,REEL HOL. 2
27 KJV-M3S23-00 FRAME 3,REEL HOL. 2
28
KJV-M3S24-01 STAY,REEL HOL. 2 NG MG10078-2010/1/20
KJV-M3S24-00 STAY,REEL HOL. 2
29 KJV-M3S25-00 GUIDE,REEL HOL. 2
30 KJV-M3S26-00 GUIDE 1,TAPE 1
31 KHY-M373C-10 CHAIN 1
32 KHY-M374C-00 CASTER 4
33 91312-06010 BOLT HEX.SOCKET HEAD 16 M6X10
34 91312-05010 BOLT HEX.SOCKET HEAD 20 M5X10
35 91312-04010 BOLT HEX.SOCKET HEAD 4 M4X10
36 91312-04006 BOLT HEX.SOCKET HEAD 10 M4X6
37 92902-04600 WASHER PLAIN 4 MG10072-2010/1/19
38 90172-00J040 WASHER,EXTL.TOOTHED 1
39 92902-06600 WASHER PLAIN 8 MG10072-2010/1/19
