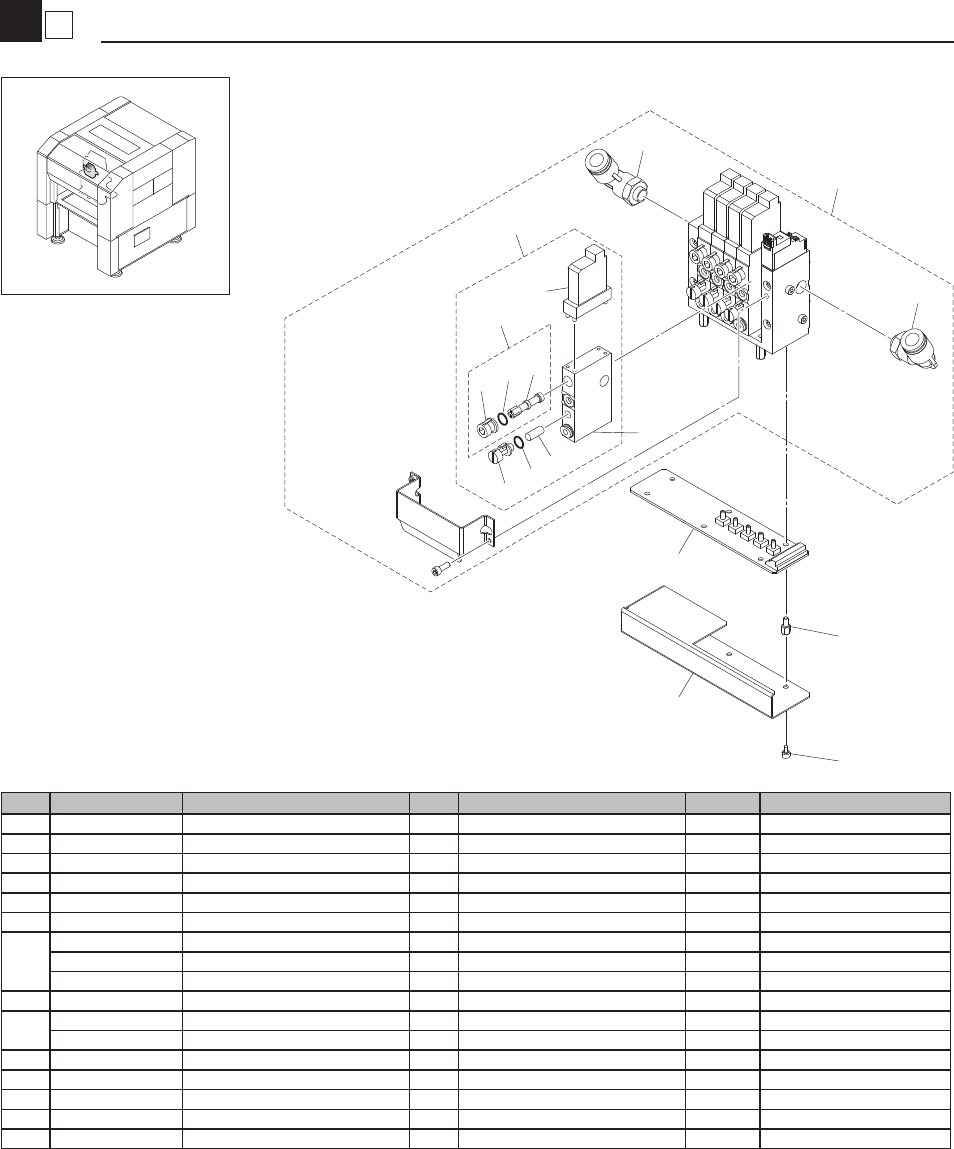

KKS_YG12_PL - 第22页
5 5 Z-axis Head KKS-101 1 7 10 1 1 1 3 3 2 2 4 6 9 9 6 5 9 9 12 1 1 13 13 8 1 1 1 1 1 1 1 1 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KHY -M71G5-A0 Z UNIT ASSY . 3 2 KHY -M71G5-A5 Z UNIT ASSY …
4
5
Ejector
Head
KKS-1011
7
1
4
4
5
3
2
6
8
9
12
*
13
10
13
11
14
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KKD-M7151-00 EJECTOR,RESIN 1
2 KHY-M4592-10 VAC5 SENS BRD ASSY 1
3 KKD-M71CA-00 COVER,VAC SENSOR 1
4 $TL10-01 JOINT 2
5 90563-23J060 SPACER 4
6 91312-03005 BOLT HEX.SOCKET HEAD 4
7
KHY-M8C04-10 EJECTOR SET 5 1 5 SET of parts numbers H019710-2014/8/22
KHY-M7152-02 EJECTOR 5 OK MK00121-2013/11/01
KHY-M7152-01 EJECTER 5
8 KHY-M7153-00 VALVE 5
9
KHY-M8C06-00 BIT SET 5 1 5 SET of parts numbers H020054-2014/11/03
KHY-M7154-01 BIT 5
10 KHY-M7155-00 FILTER CAP 5
11 KHY-M7156-01 BIT CAP 5
12 K46-M8527-C0 FILTER 5
13 90990-17J010 ORING 10
14 KHY-M7158-00 BIT RETROFIT KIT 5 spare
* Plase talk about the exchange with the store.
5
5
Z-axis
Head
KKS-1011
7
10
1
1
1
3
3
2
2
4
6
9
9
6
5
9
9
12
11
13
13
8
11
11
11
11
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHY-M71G5-A0 Z UNIT ASSY. 3
2 KHY-M71G5-A5 Z UNIT ASSY. 2
3 KKD-M71G7-A0 DUMMY BASE ASSY. 5
4 KHY-M71G1-00 SIDE PLATE,R 1
5 KHY-M71G2-00 SIDE PLATE,L 1
6 KHY-M71G3-00 SHAFT 1 2
7 KHY-M71G6-00 PLATE,HARNESS 1
8
K94-M220A-10 TAPE X-AXIS 60mm OK MG90026-2010/9/10
KHY-M71H3-00 TAPE,Z-UNIT 5
9 90990-28J078 WASHER,PLAIN 4
10 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
11 91312-05014 BOLT HEX.SOCKET HEAD 8 M5X14
12 99480-04008 PIN,PARALLEL:4X8 2
13 90K41-000720 LABEL,ALERT 2
1
6
Nozzle
Nozzle
KKS-1201
11
1
3>27
5
2
4
14
5
15
4
16
18
5
17
4
19
18
5
20
4
21
3
5
22
4
6
3>28
5
7
4
8
10
3
5
9
4
12
3
5
13
4
NOZZLE 301A ASSY. NOZZLE 302A ASSY.
NOZZLE 303A/314A ASSY. NOZZLE 304A/315A ASSY.
NOZZLE 306A/317A ASSY. NOZZLE 307A/318A ASSY.
NOZZLE 310A ASSY.
NOZZLE 311A ASSY.
NOZZLE 312A ASSY.
NOZZLE 313A ASSY.
23
25
26
24
OLD
3>28
Narrow adjacent Type
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KHN-M7710-A4 NOZZLE 301A ASSY. 1 TYPE 301A OK MHX0059-2011/11/25
KHN-M7710-A3 NOZZLE 301A ASSY. 1 OK MG60126-2010/7/8
KHN-M7710-A2 NOZZLE 301A ASSY. 1
2
KHN-M7711-05 BODY,NOZZLE 301 1 OK MHX0059-2011/11/25
KHN-M7711-04 BODY, NOZZLE 301 1 OK MG60126-2010/7/8
KHN-M7711-03 BODY, NOZZLE 301 1
3 KHN-M7713-00
SPRING
1 Black
4 KHN-M7714-00 PIN 1
5 KHN-M7715-00 CLIP 1
6
KHN-M7720-A3 NOZZLE 302A ASSY. 1 TYPE 302A OK MHX0059-2011/11/25
KHN-M7720-A2 NOZZLE 302A ASSY. 1 OK MG60126-2010/7/8
KHN-M7720-A1 NOZZLE 302A ASSY. 1
7
KHN-M7721-04 BODY, NOZZLE 302 1 OK MHX0059-2011/11/25
KHN-M7721-03 BODY, NOZZLE 302 1 OK MG60126-2010/7/8
KHN-M7721-02 BODY, NOZZLE 302 1
8 KHY-M7740-A0 NOZZLE 303A/314A ASSY. 1 TYPE 303A/314A
9 KHY-M7741-00 BODY, NOZZLE 303/314 1
10 KHY-M7750-A0 NOZZLE 304A/315A ASSY. 1 TYPE 304A/315A
11 90990-17J013 O-RING 5
12 KHY-M7770-A0 NOZZLE 306A/317A ASSY. 1 TYPE 306A/317A
13 KHY-M7771-00 BODY, NOZZLE 306/317 1
14 KHY-M77A0-A0 NOZZLE 310A ASSY. 1 TYPE 310A
15 KHY-M77A1-00 BODY, NOZZLE 310 1
16
KHY-M7710-A4 NOZZLE 311A ASSY. 1 TYPE 311A (Narrow adjacent Type) OK MHX0059-2011/11/25
KHY-M7710-A3 NOZZLE 311A ASSY. 1 OK MG60126-2010/7/8
KHY-M7710-A2 NOZZLE 311A ASSY. 1 NG MFX0107-2010/1/28
KHY-M7710-A1 NOZZLE 311A ASSY. 1
17
KHY-M7711-03 BODY, NOZZLE 311 1 OK MHX0059-2011/11/25
KHY-M7711-02 BODY, NOZZLE 311 1 OK MG60126-2010/7/8
KHY-M7711-01 BODY, NOZZLE 311 1 NG MFX0107-2010/1/28
KHY-M7711-00 BODY, NOZZLE 311 1
18 KHN-M7713-10 SPRING 1
19
KHY-M7720-A3 NOZZLE 312A ASSY. 1 TYPE 312A (Narrow adjacent Type) OK MHX0059-2011/11/25
KHY-M7720-A2 NOZZLE 312A ASSY. 1 OK MG60126-2010/7/8
KHY-M7720-A1 NOZZLE 312A ASSY. 1
20
KHY-M7721-02 BODY,NOZZLE 312 1 OK MHX0059-2011/11/25
KHY-M7721-01 BODY, NOZZLE 312 1 OK MG60126-2010/7/8
KHY-M7721-00 BODY, NOZZLE 312 1
21
KHY-M7730-A2 NOZZLE 313A ASSY. 1 TYPE 313A (Narrow adjacent Type) OK MHX0059-2011/11/25
KHY-M7730-A1 NOZZLE 313A ASSY. 1 OK MG60126-2010/7/8
KHY-M7730-A0 NOZZLE 313A ASSY. 1
22
KHY-M7731-02 BODY,NOZZLE 313 1 OK MHX0059-2011/11/25
KHY-M7731-01 BODY, NOZZLE 313 1 OK MG60126-2010/7/8
KHY-M7731-00 BODY, NOZZLE 313 1
23 KHY-M7780-A0 NOZZLE 307A/318A ASSY. 1 TYPE 307A/318A
24 KHY-M7781-00 BODY, NOZZLE 307/318 1
25 KGS-M7742-00 LABEL,NOZZLE 1
26 90990-17J014 O-RING 5
27 KHN-M7713-10 SPRING 1 White (Same as No.18) OK MH30013-2011/3/9
28 KHN-M7713-10 SPRING 1 White (Same as No.18) OK MH90007-2011/9//7
