1 6 Nozzle Nozzle KKS-1201 1 1 1 3>27 5 2 4 14 5 15 4 16 18 5 17 4 19 18 5 20 4 21 3 5 22 4 6 3>28 5 7 4 8 10 3 5 9 4 12 3 5 13 4 NO ZZL E 3 01 A ASS Y . NOZ ZLE 30 2A AS SY . NO ZZL E 3 03 A/3 14A ASS Y . NOZ ZLE …
5
5

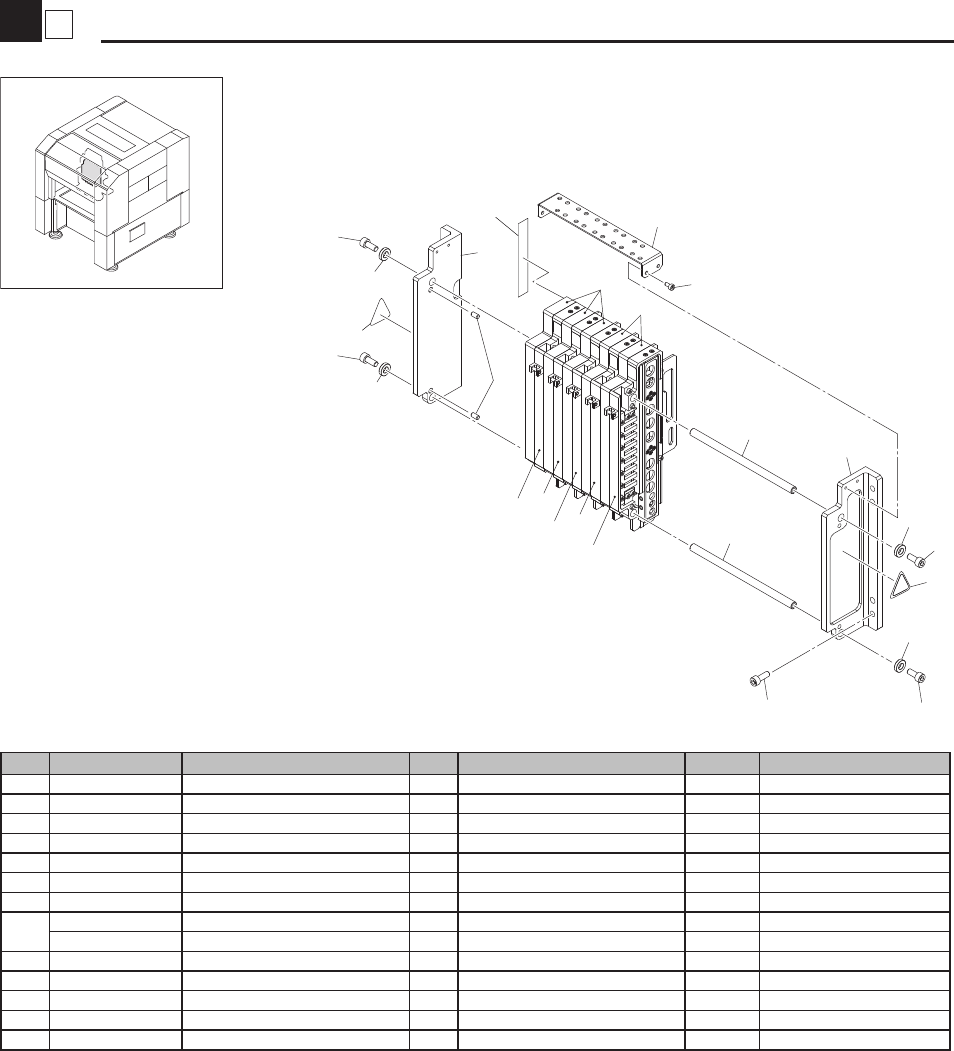

Z-axis
Head
KKS-1011
7
10
1
1
1
3
3
2
2
4
6
9
9
6
5
9
9
12
11
13
13
8
11
11
11
11
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHY-M71G5-A0 Z UNIT ASSY. 3
2 KHY-M71G5-A5 Z UNIT ASSY. 2
3 KKD-M71G7-A0 DUMMY BASE ASSY. 5
4 KHY-M71G1-00 SIDE PLATE,R 1
5 KHY-M71G2-00 SIDE PLATE,L 1
6 KHY-M71G3-00 SHAFT 1 2
7 KHY-M71G6-00 PLATE,HARNESS 1
8
K94-M220A-10 TAPE X-AXIS 60mm OK MG90026-2010/9/10
KHY-M71H3-00 TAPE,Z-UNIT 5
9 90990-28J078 WASHER,PLAIN 4
10 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
11 91312-05014 BOLT HEX.SOCKET HEAD 8 M5X14
12 99480-04008 PIN,PARALLEL:4X8 2
13 90K41-000720 LABEL,ALERT 2
1
6
Nozzle
Nozzle
KKS-1201
11
1
3>27
5
2
4
14
5
15
4
16
18
5
17
4
19
18
5
20
4
21
3
5
22
4
6
3>28
5
7
4
8
10
3
5
9
4
12
3
5
13
4

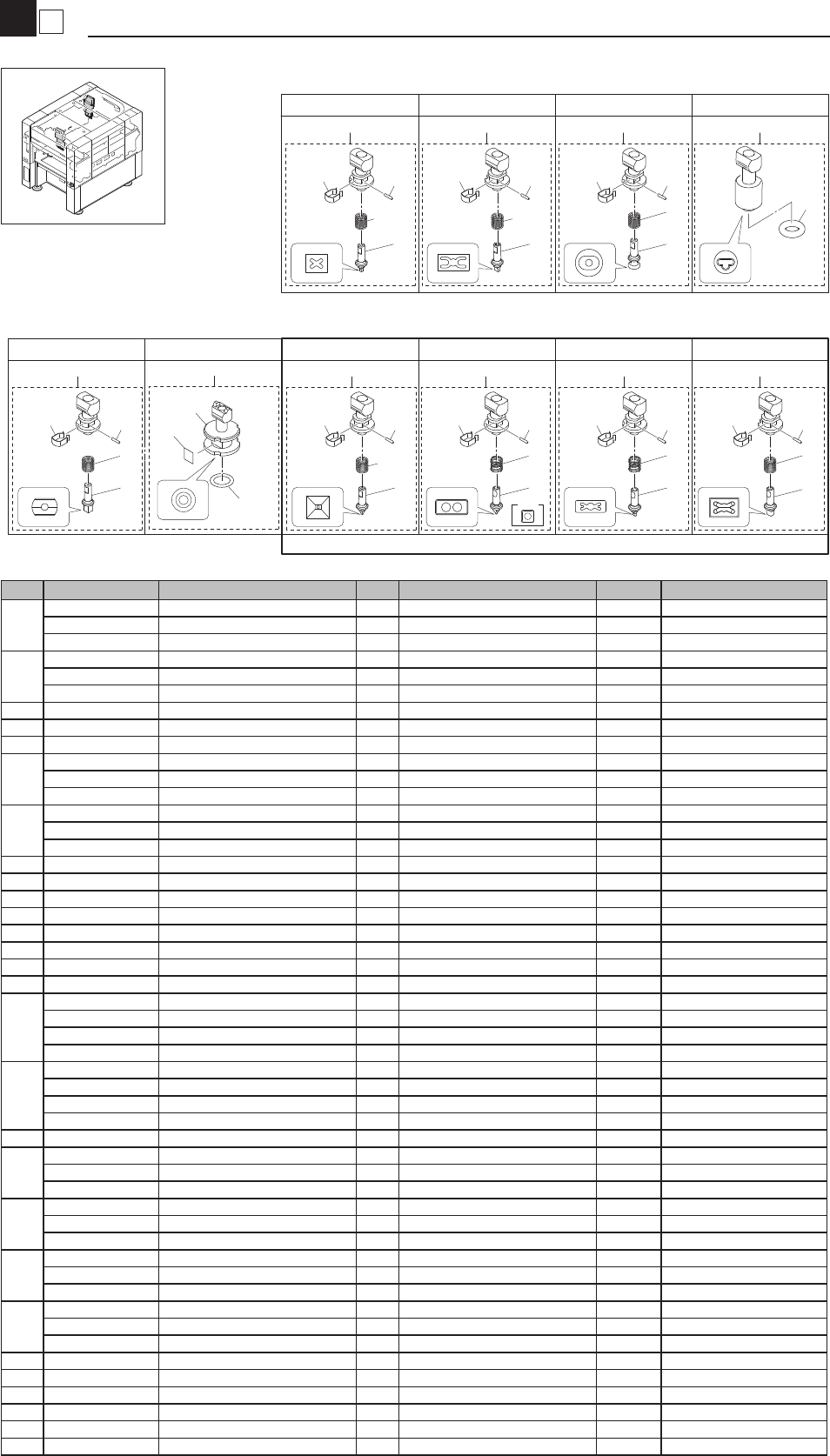

NOZZLE 301A ASSY. NOZZLE 302A ASSY.
NOZZLE 303A/314A ASSY. NOZZLE 304A/315A ASSY.
NOZZLE 306A/317A ASSY. NOZZLE 307A/318A ASSY.
NOZZLE 310A ASSY.
NOZZLE 311A ASSY.
NOZZLE 312A ASSY.
NOZZLE 313A ASSY.
23
25
26
24
OLD
3>28
Narrow adjacent Type
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KHN-M7710-A4 NOZZLE 301A ASSY. 1 TYPE 301A OK MHX0059-2011/11/25
KHN-M7710-A3 NOZZLE 301A ASSY. 1 OK MG60126-2010/7/8
KHN-M7710-A2 NOZZLE 301A ASSY. 1
2
KHN-M7711-05 BODY,NOZZLE 301 1 OK MHX0059-2011/11/25
KHN-M7711-04 BODY, NOZZLE 301 1 OK MG60126-2010/7/8
KHN-M7711-03 BODY, NOZZLE 301 1
3 KHN-M7713-00
SPRING
1 Black
4 KHN-M7714-00 PIN 1
5 KHN-M7715-00 CLIP 1
6
KHN-M7720-A3 NOZZLE 302A ASSY. 1 TYPE 302A OK MHX0059-2011/11/25
KHN-M7720-A2 NOZZLE 302A ASSY. 1 OK MG60126-2010/7/8
KHN-M7720-A1 NOZZLE 302A ASSY. 1
7
KHN-M7721-04 BODY, NOZZLE 302 1 OK MHX0059-2011/11/25
KHN-M7721-03 BODY, NOZZLE 302 1 OK MG60126-2010/7/8
KHN-M7721-02 BODY, NOZZLE 302 1
8 KHY-M7740-A0 NOZZLE 303A/314A ASSY. 1 TYPE 303A/314A
9 KHY-M7741-00 BODY, NOZZLE 303/314 1
10 KHY-M7750-A0 NOZZLE 304A/315A ASSY. 1 TYPE 304A/315A
11 90990-17J013 O-RING 5
12 KHY-M7770-A0 NOZZLE 306A/317A ASSY. 1 TYPE 306A/317A
13 KHY-M7771-00 BODY, NOZZLE 306/317 1
14 KHY-M77A0-A0 NOZZLE 310A ASSY. 1 TYPE 310A
15 KHY-M77A1-00 BODY, NOZZLE 310 1
16
KHY-M7710-A4 NOZZLE 311A ASSY. 1 TYPE 311A (Narrow adjacent Type) OK MHX0059-2011/11/25
KHY-M7710-A3 NOZZLE 311A ASSY. 1 OK MG60126-2010/7/8
KHY-M7710-A2 NOZZLE 311A ASSY. 1 NG MFX0107-2010/1/28
KHY-M7710-A1 NOZZLE 311A ASSY. 1
17
KHY-M7711-03 BODY, NOZZLE 311 1 OK MHX0059-2011/11/25
KHY-M7711-02 BODY, NOZZLE 311 1 OK MG60126-2010/7/8
KHY-M7711-01 BODY, NOZZLE 311 1 NG MFX0107-2010/1/28
KHY-M7711-00 BODY, NOZZLE 311 1
18 KHN-M7713-10 SPRING 1
19
KHY-M7720-A3 NOZZLE 312A ASSY. 1 TYPE 312A (Narrow adjacent Type) OK MHX0059-2011/11/25
KHY-M7720-A2 NOZZLE 312A ASSY. 1 OK MG60126-2010/7/8
KHY-M7720-A1 NOZZLE 312A ASSY. 1
20
KHY-M7721-02 BODY,NOZZLE 312 1 OK MHX0059-2011/11/25
KHY-M7721-01 BODY, NOZZLE 312 1 OK MG60126-2010/7/8
KHY-M7721-00 BODY, NOZZLE 312 1
21
KHY-M7730-A2 NOZZLE 313A ASSY. 1 TYPE 313A (Narrow adjacent Type) OK MHX0059-2011/11/25
KHY-M7730-A1 NOZZLE 313A ASSY. 1 OK MG60126-2010/7/8
KHY-M7730-A0 NOZZLE 313A ASSY. 1
22
KHY-M7731-02 BODY,NOZZLE 313 1 OK MHX0059-2011/11/25
KHY-M7731-01 BODY, NOZZLE 313 1 OK MG60126-2010/7/8
KHY-M7731-00 BODY, NOZZLE 313 1
23 KHY-M7780-A0 NOZZLE 307A/318A ASSY. 1 TYPE 307A/318A
24 KHY-M7781-00 BODY, NOZZLE 307/318 1
25 KGS-M7742-00 LABEL,NOZZLE 1
26 90990-17J014 O-RING 5
27 KHN-M7713-10 SPRING 1 White (Same as No.18) OK MH30013-2011/3/9
28 KHN-M7713-10 SPRING 1 White (Same as No.18) OK MH90007-2011/9//7
2
6
Nozzle Changer 1
Nozzle
KKS-0912
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KKS-M9607-00 PLATE,CLAMP 1
2 KHY-M9611-00 SHEET,GUIDE,CLAMP 2
3 91312-03020 BOLT,HEX.SOCKET HEAD 2
4 KHN-M9619-50 VALVE 1
5 $TL4-M5M JOINT 3
6 98902-03008 SCREW BINDING HEAD 16
7 $NK-2N NYLON CLIP 2
8 97602-04308 SCREW,PAN HEAD W/W 2
9 92012-04010 BOLT BUTTON HEAD 2
10 KHY-M652G-10 CYLINDER AMC ASSY 1
11 KHY-M9614-00 STOPPER,CYLINDER 1
12 KHY-M9631-00 COLLAR,FLOATING 1
13 KHY-M9632-00 BLOCK,FLOATING 1
14 KHW-M916E-00 BUSH 1
15 KHW-M916G-00 COLLAR, JOINT 1
16 KHW-M916H-00 JOINT, CYL. 1
17 $SC4-M5A SPEED CONTROLLER 2
18 91312-04016 BOLT HEX.SOCKET HEAD 1 M4X16
19 91312-04022 BOLT HEX.SOCKET HEAD 1 M4X22
20 92902-04200 WASHER PLAIN 3
1
2
8
7
7
6
9
6
3
5
5
4
17
19
20
14
10
10
15
16
18
13
12
11
