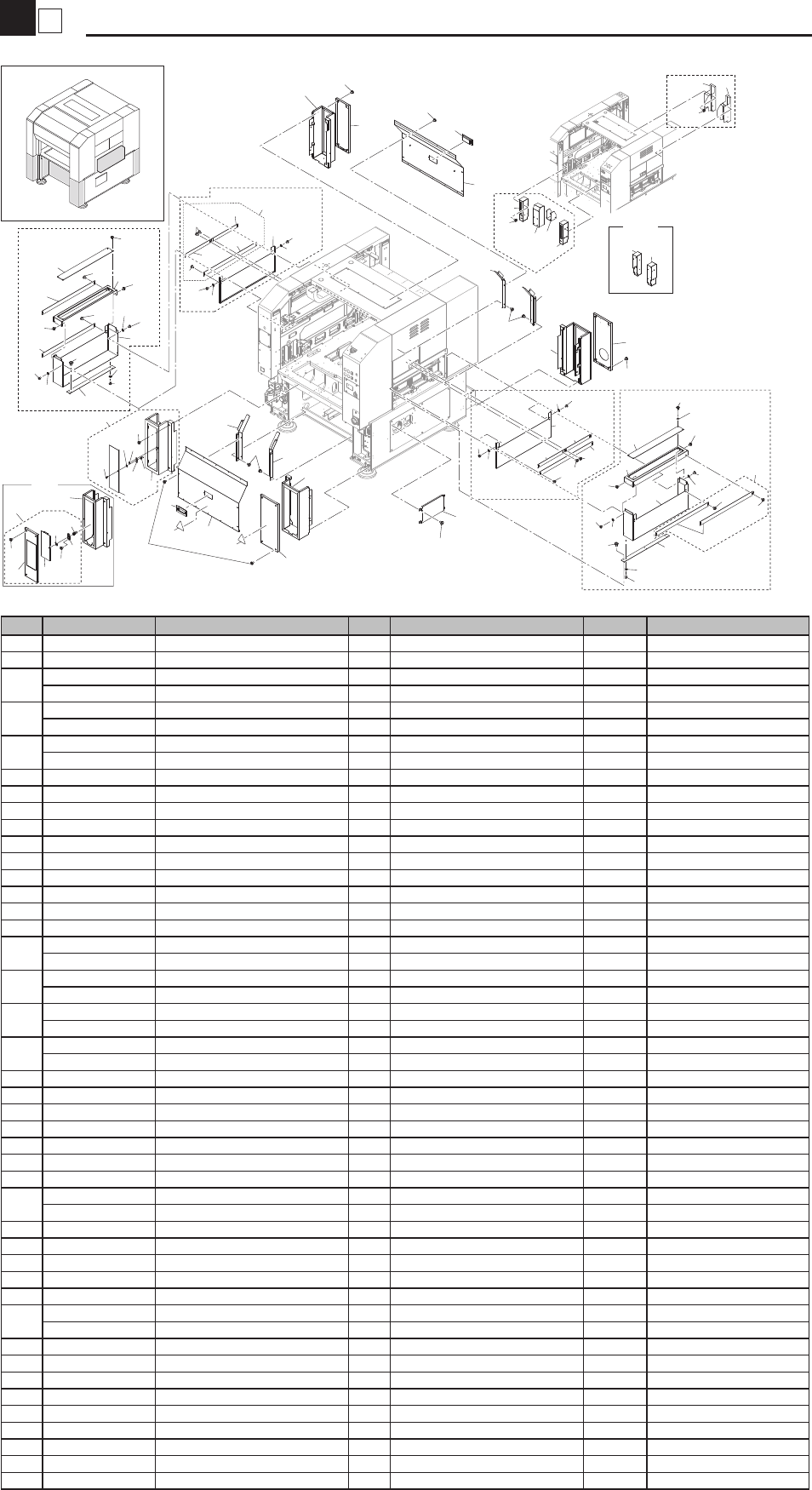

KKS_YG12_PL - 第7页
3 2 Base/Conveyor/CE Cover Cover KKS-101 1 Conveyor:1250 Conveyor:1460 Conveyor:1460 Conveyor:1250 STD STD 20 23 23 37 22 20 24 25 24 25 9 9 24 25 24 25 21 23 23 22 21 24 25 31 24 25 29 22 24 25 20 41 20 26 30 30 27 9 28…
2
2
Acryl Door
Cover
KKS-1011
Front
S-ATS
Rear
Rear
1
43
44
45
46
24
10
11
12
24
24
10
10
11
11
12
12
12
12
12
14
13
16
14
13
16
18
17
18
18
18
18
19
19
22
23
22
23
12
11
24
10
12
20
4
7
7
7
2
2
8
8
42
42
21
21
18
6
6
9
9
22
16
22
16
20
5
40
42
40
42
15
15
20
20
15
17
17
17
20
3
7
27
28
25
26
29
9
12
32
31
10
33
36
39
37
38
38
34
36
39
38
35
12
30
14
13
32
10
12
20
15
21
20
15
31
12
16
16
22
25
26
41
41
42
42
42
41
41
41
42
41
15
20
47
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KJV-M1309-A1 COVER 9 ASSY. 1
2 KJV-M1309-01 COVER 9-1 2
3 KHY-M130A-02 COVER 9-2 1
4 KJV-M1340-00 BRKT.1,COVER 9 1
5 KJV-M1341-00 BRKT.2,COVER 9 1
6 KHY-M1343-01 BRKT.4, COVER 9 2
7 KV7-M1349-00 PLATE 2,NUT 4
8 KV2-M1351-00 PLATE 2 NUT 2
9 KH2-M1324-01 GRIP 2
10 KM0-M1331-01 BRACKET GAS DAMPER 4
11 KGS-M1348-00 GAS SPRING 4
12 90990-31J006 BOLT,SHOULDER 8
13 KL0-M1373-01 BRACKET 1 SCHMEASAL 2
14 KL0-M1374-00 PLATE 1 SCHMESAL 2
15 KJJ-M1348-00 STOPPER 65 4
16 KGS-M1360-00 BOLT 8
17 90990-46J001 BOLT,THIN HEAD 14
18 90990-46J003 BOLT,THIN HEAD 6
19 91312-04006 BOLT HEX.SOCKET HEAD 4 M4X6
20 91312-04008 BOLT HEX.SOCKET HEAD 12 M4X8
21 91312-05014 BOLT HEX.SOCKET HEAD 4 M5X14
22 92902-04200 WASHER PLAIN 4
23 95302-04600 NUT HEXAGON 2
24 95302-06600 NUT HEXAGON 2
25 90K41-000420 LABEL,ALERT 1
26 90K41-000360 LABEL,ALERT 1
27 KKS-M13D6-00 SEAL 1 (YG12F) 1
28 KW7-M13D7-01 SEAL 2(YAMAHA) 1
29 KKJ-M1309-B0 COVER 9 ASSY 1 S-ATS
30 KKJ-M130A-00 COVER 9 1
31 KL3-M1348-10 GAS SPRING 2
32 95307-06600 NUT HEXAGON 2
33 KKJ-M1310-10 COVER REAR ASSY. 1 S-ATS
34 KKJ-M1316-10 COVER 16 1
35 KKJ-M131A-00 COVER 1A 1
36 KKJ-M1317-00 BRACKET,COVER 16 2
37 KKJ-M1318-00 BRACKET,COVER 16 1
38 90990-12J001 SCREW BIN.HEAD W/W 16
39 90990-46J001 BOLT,THIN HEAD 9
40 KHY-M1391-00 PLATE PROTECTOR 2
41 K46-M1374-11 HINGE 2 4
42 90990-12J002 SCREW BIN.HEAD W/W 4
43 KHY-M1309-B1 COVER 9 ASSY. 1
44 KHY-M130A-12 COVER 9-2 1
45
KHY-M1340-11 BRKT.1,COVER 9 1
KKS-M1340-10 BRKT.1,COVER 9 1 FIX 60
46
KHY-M1341-11 BRKT.2,COVER 9 1
KKS-M1341-10 BRKT.2,COVER 9 1 FIX 60
47 KHY-M139D-A0 COVER CAP ASSY. 4 MG30055-2010/5/12
3
2
Base/Conveyor/CE Cover
Cover
KKS-1011
Conveyor:1250
Conveyor:1460
Conveyor:1460
Conveyor:1250
STD
STD
20
23
23
37
22
20
24
25
24
25
9
9
24
25
24
25
21
23
23
22
21
24
25
31
24
25
29
22
24
25
20
41
20
26
30
30
27
9
28
9
28
24
25
24
25
24
31
26
29
22
30
30
22
9
9
30
1
10
2
31
14
13
31
14
13
1
10
30
11
12
35
30
36
17
16
18
19
38
39
16
17
25
9
30
15
31
32
32
34
30
30
27
OLD
6
8
7
8
9
4
5
3
3
40
6
8
7
9
5
33
30
OLD
4
42
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHU-M1117-00 PULL 2
2 KHY-M1310-02 COVER 10 1
3
KHY-M1311-A1 COVER 11 ASSY NG MG30043-2010/8/16
KHY-M132D-A0 COVER 11-1 ASSY. 1
4
KHY-M1311-03 COVER 11 1 NG MG30043-2010/8/16
KHY-M1311-02 COVER 11 1
5
KHY-M130E-01
DOOR,COVER 11 1
NG MG30043-2010/8/16
KHY-M130E-00 DOOR,COVER 11 1
6 KGJ-M1350-00 SPACER,MINI LATCH 1
7 KGJ-M1351-01 PLATE,MINI LATCH 1
8 KW3-M1349-00 MINI LATCH 1
9 90990-12J006 SCREW BIND HEAD W/W 18
10 KHY-M1312-00 COVER 12 2
11 KHY-M1313-02 COVER 13 1
12 KHY-M1315-02 COVER 15 1
13 KHY-M131A-00 BRKT.1,COVER 12 2
14 KHY-M131B-00 BRKT.2,COVER 12 2
15 KHY-M1164-00 COVER,FAN 1
16
KKS-M13F1-01 CE COVER F1 2 OK MF00113-2009/11/20
KKS-M13F1-00 CE COVER F1 2
17
KKS-M13F2-01 CE COVER F2 2 OK MF00113-2009/11/20
KKS-M13F2-00 CE COVER F2 2
18
KKS-M13A3-02 COVER CE C MAIN 1 NG MF00113-2009/11/20
KKS-M13A3-01 COVER CE C MAIN 1
19
KKS-M13A3-10 COVER CE C BRKT. 1 NG MF00113-2009/11/20
KJJ-M13A3-11 COVER CE C BRKT. 1
20 90990-12J001 SCREW BIN.HEAD W/W 12
21 KHY-M1372-01 COVER 72,CON. 2
22 KHY-M1371-00 COVER 71,CON. 4 O/P
23 KHY-M1373-00 COVER 73,CON. 4 O/P
24 98902-04006 SCREW BINDING HEAD 14
25 90172-00J040 WASHER,EXTL.TOOTHED 14
26 KHY-M1376-00 COVER 76,CON. 2
27
KJV-M1377-01 COVER 77,CON. 2 OK MG30020-2010/3/4
KHY-M1377-01 COVER 77,CON. 2
28 KHY-M1378-00 PLATE 78,CON. 2
29 KHY-M1332-00 BRKT.32,CON.COVER 2
30 90990-12J001 SCREW BIN.HEAD W/W 8
31 90990-12J004 SCREW BIN.HEAD W/W 6
32 90K41-000712 PARTS, 1-13 2
33
Delete MG30043-2010/8/16
KHY-M132D-00 COVER 11-1 1
34 KHY-M132A-00 COVER 10-1 1
35 KHY-M132B-00 COVER 13-1 1
36 KHY-M132C-00 COVER 15-1 1
37 KHY-M13K0-00 PLATE,MUZZLE ASSY 1
38 KKS-M13F3-00 SE COVER F3 1 MF00113-2009/11/20
39 KKS-M13F4-00 SE COVER F4 1 MF00113-2009/11/20
40 90990-12J007 SCREW BIN.HEAD W/W 4
41 KHY-M13K0-10 PLATE MUZZLE ASSY. 1
42 90990-41J134 COLLAR 4 MK30113-2013/6/10
4
2
LCD Stay Assy
Cover
KKS-1011
18
19
14
20
23
26
4
13
27
8
19
10
6
5
3
9
5
5
3
9
25
5
22
17
26
27
2
5
6
18
5
6
18
9
9
25
5
22
12
26
7
27
27
16
21
24
1
11
15
15
21
24
21
24
2
5
6
18
30
29
26
28
27
27
16
Rear
21
15
15
21
24
21
24
24
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHW-M1381-00 BODY.STAND 1
2 KHY-M1382-00 BRACKET 1 2
3 KHW-M1383-00 BRACKET 2 2
4 KKE-M1384-00 BRACKET.LCD 1
5 KHW-M1385-00 SPACER 8
6 KHW-M1386-00 BUSH 4
7 KHY-M1385-01 STAY,LCD UNIT 1
8 KKE-M138A-00 DAMPER 4
9 90990-37J001 WASHER,BELLEVILLE 8
10 90990-41J132 COLLAR 4
11 90990-06J001 BOLT,BUTTON HEAD 1
12 91312-04005 BOLT,HEX.SOCKET HEAD 1 M4X5
13 98902-04016 SCREW,BINDING HEAD 4 M4X16
14 91312-04008 BOLT HEX.SOCKET HEAD 4 M4X8
15 91312-05010 BOLT HEX.SOCKET HEAD 4 M5X10
16 91312-05014 BOLT HEX.SOCKET HEAD 4 M5X14
17 91312-06008 BOLT HEX.SOCKET HEAD 1 M6X8
18 91312-06020 BOLT HEX.SOCKET HEAD 4 M6X20
19 90990-28J141 WASHER PLAIN 8
20 92902-04200 WASHER PLAIN 4
21 92902-05200 WASHER PLAIN 8
22 92902-06600 WASHER PLAIN 2
23 20172-00J040 WASHER EXTL, TOOTHED 4
24 90172-00J050 WASHER EXTL, TOOTHED 8
25 95602-06100 NUT U 4
26 $NK-2N NYLON CLIP 5
27 90990-11J001 SCREW,PAN HEAD W/W 5
28 KHY-M1385-11 STAY,LCD UNIT 1
29 KKJ-M138K-00 SPACER,LCD. 1
30 KHY-M1386-00 BRACKET 2 1
