KKS_YG12_PL - 第9页
1 3 Feeder Holder (60) Feeder Holder KKS-101 1 28 1 1 13 5 12 36 33 4 21 10 35 10 23 24 27 31 8 29 32 19 25 30 7 1 2 26 34 28 28 OLD 28 3 6 22 29 32 18 9 20 32 23 27 31 29 24 15 17 14 16 17 17 17 17 17 23 18 No. Part No.…
4
2
LCD Stay Assy
Cover
KKS-1011
18
19
14
20
23
26
4
13
27
8
19
10
6
5
3
9
5
5
3
9
25
5
22
17
26
27
2
5
6
18
5
6
18
9
9
25
5
22
12
26
7
27
27
16
21
24
1
11
15
15
21
24
21
24
2
5
6
18
30
29
26
28
27
27
16
Rear
21
15
15
21
24
21
24
24

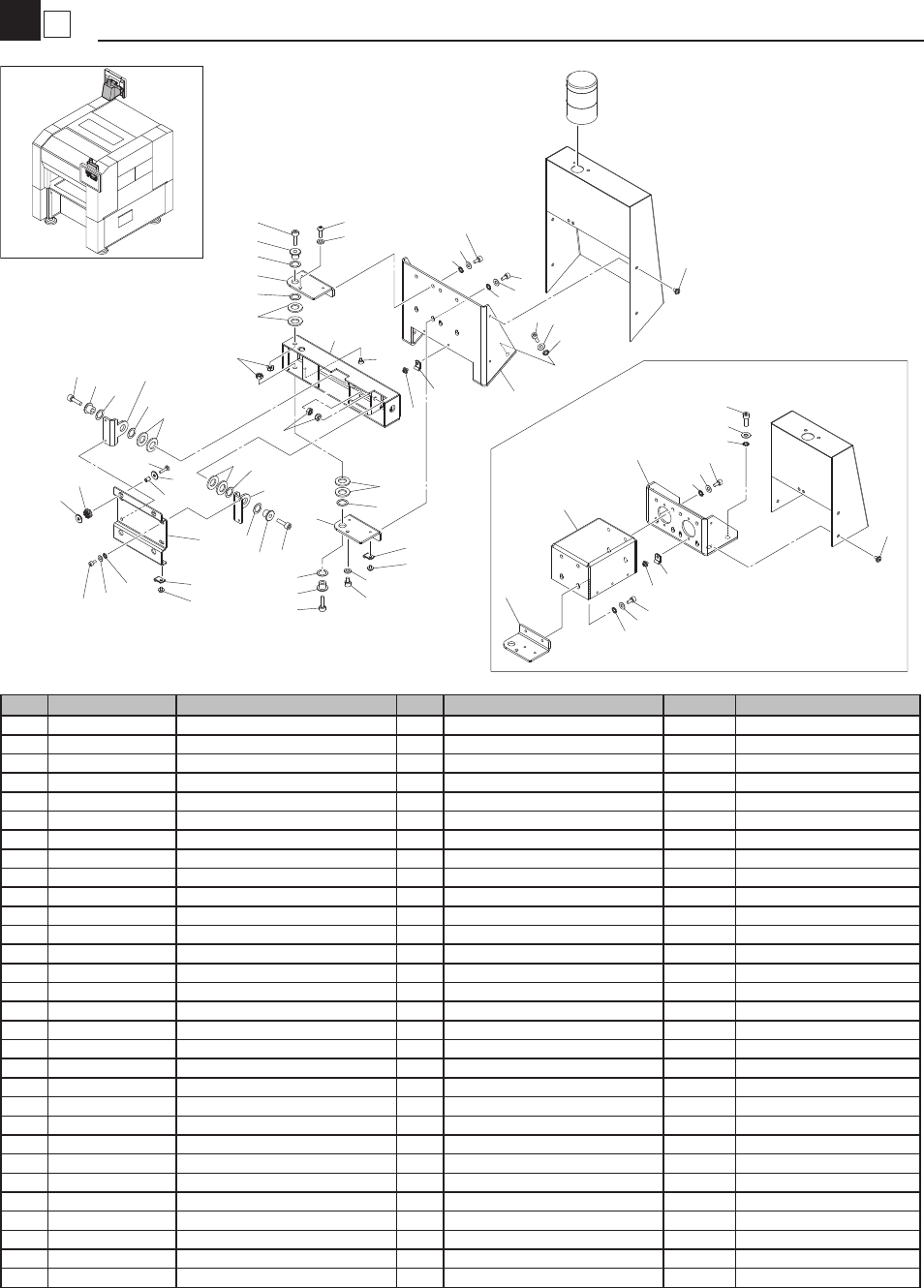

No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHW-M1381-00 BODY.STAND 1
2 KHY-M1382-00 BRACKET 1 2
3 KHW-M1383-00 BRACKET 2 2
4 KKE-M1384-00 BRACKET.LCD 1
5 KHW-M1385-00 SPACER 8
6 KHW-M1386-00 BUSH 4
7 KHY-M1385-01 STAY,LCD UNIT 1
8 KKE-M138A-00 DAMPER 4
9 90990-37J001 WASHER,BELLEVILLE 8
10 90990-41J132 COLLAR 4
11 90990-06J001 BOLT,BUTTON HEAD 1
12 91312-04005 BOLT,HEX.SOCKET HEAD 1 M4X5
13 98902-04016 SCREW,BINDING HEAD 4 M4X16
14 91312-04008 BOLT HEX.SOCKET HEAD 4 M4X8
15 91312-05010 BOLT HEX.SOCKET HEAD 4 M5X10
16 91312-05014 BOLT HEX.SOCKET HEAD 4 M5X14
17 91312-06008 BOLT HEX.SOCKET HEAD 1 M6X8
18 91312-06020 BOLT HEX.SOCKET HEAD 4 M6X20
19 90990-28J141 WASHER PLAIN 8
20 92902-04200 WASHER PLAIN 4
21 92902-05200 WASHER PLAIN 8
22 92902-06600 WASHER PLAIN 2
23 20172-00J040 WASHER EXTL, TOOTHED 4
24 90172-00J050 WASHER EXTL, TOOTHED 8
25 95602-06100 NUT U 4
26 $NK-2N NYLON CLIP 5
27 90990-11J001 SCREW,PAN HEAD W/W 5
28 KHY-M1385-11 STAY,LCD UNIT 1
29 KKJ-M138K-00 SPACER,LCD. 1
30 KHY-M1386-00 BRACKET 2 1
1
3
Feeder Holder (60)
Feeder Holder
KKS-1011
28
11
13
5
12
36
33
4
21
10
35
10
23
24
27
31
8
29
32
19
25
30
7
1
2
26
34
28
28
OLD
28
3
6
22
29
32
18
9
20
32
23
27
31
29
24
15
17
14
16
17
17
17
17
17
23
18
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KKS-M3401-C0 FEEDER PLATE ASSY.60 1
2 KJV-M3401-01 PLATE,FEEDER 60 1
3 KJV-M3407-A0 JOINT ASSY 59
4 $BF4BU JOINT 59
5 KJV-M3402-00 GUIDE 1,TAPE 1
6 KJV-M3403-01 GUIDE 2,TAPE 1
7 KJV-M3404-00 GUIDE 3,TAPE 1
8 KJV-M3405-00 STAND,1 1
9 KJV-M3406-00 STAND,2 1
10
KJV-M3408-01 BRACKET,VALVE 1 Height 37mm NG MG50094-2010/5/25
KJV-M3408-00 BRACKET,VALVE 1 Height 33mm
11
KJV-M3409-01 COVER,VALVE 1 OK MG20030-2010/2/10
KJV-M3409-00 COVER,VALVE 1
12 KJV-M3410-10 VALVE ASSY,60-R 1
13 KHY-M3410-10 MANIFOLD ASSY 2 1
14 KHY-M3411-00 MANIFOLD 1
15 K40-M8598-00 PLUG 1 1
16 $TSH8-01 JOINT 1
17 $TSS4-01 JOINT 6
18 KHY-M3430-20 LABEL,FEEDER 60-12P 1
19 KJV-M3411-00 GUIDE TAPE BRACKET,R 1
20 KJV-M3412-00 GUIDE TAPE BRACKET,L 1
21 91312-03006 BOLT HEX.SOCKET HEAD 6 M3X6
22 91312-04008 BOLT HEX.SOCKET HEAD 2 M4X8
23 91312-04010 BOLT HEX.SOCKET HEAD 8 M4X10
24 91312-04020 BOLT HEX.SOCKET HEAD 2 M4X20
25 91312-06010 BOLT HEX.SOCKET HEAD 4 M6X10
26 91312-06022 BOLT HEX.SOCKET HEAD 4 M6X8
27 91312-08020 BOLT HEX.SOCKET HEAD 6 M8X20
28 90990-12J001 SCREW BIN.HEAD W/W 12
29 92902-04200 WASHER PLAIN 6
30 92902-06200 WASHER PLAIN 4
31 92902-08600 WASHER PLAIN 6
32 90172-00J040 WASHER,EXTL.TOOTHED 6
33 KGA-M37P0-00 VALVE KIT 1 Spare
34 KKS-M3413-00 PLUG JOINT 1
35 KJV-M3405-S0 STAND,1/2 SET 1 OK MG30148-2010/4/5
36 $UYD10-6 JOINT 1 OK MF90115-209/9/18
2
3
Feeder Holder (24)
Feeder Holder
KKS-1011
11
13
28
4
12
33
28
5
10
7
28
32
22
6
1
2
20
26
34
3
29
18
24
8
31
27
25
19
28
30
27
9
20
31
24
21
15
14
17
17
17
16
23
28
36
35
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KKS-M3401-A0 FDR.PLATE ASSY.24-R 1 R
KKS-M3401-B0 FDR.PLATE ASSY.24-L 1 L
2 KKS-M3401-00 PLATE,FEEDER 24 1
3 KJV-M3407-A0 JOINT ASSY 24
4 $BF4BU JOINT 24
5 KKS-M3402-00 GUIDE 1,TAPE 1
6 KKS-M3403-00 GUIDE 2,TAPE 1
7 KKS-M3404-00 GUIDE 3,TAPE 1
8 KKS-M3405-00 STAND,1 1
9 KKS-M3406-00 STAND,2 1
10 KKS-M3408-00 BRACKET,VALVE 1
11
KKS-M3409-01 COVER,VALVE 1 OK MG20030-2010/2/10
KKS-M3409-00 COVER,VALVE 1
12
KKS-M3410-00 VALVE ASSY,24-R 1 R
KKS-M3410-10 VALVE ASSY,24-L 1 L
13
KJH-M3410-10 MANIFOLD ASSY 1 R
KKJ-M3410-00 MANIFOLD ASSY 1 L
14 KJH-M3411-00 MANIFOLD 1
15 K40-M8598-00 PLUG 1 1
16 $TSH8-01 JOINT 1
17 $TSS4-01 JOINT 3
18 KKS-M3411-00 GUIDE TAPE BRACKET,R 1
19 KKS-M3412-00 GUIDE TAPE BRACKET,L 1
20 KHY-M3430-00 LABEL,FEEDER 24-12P 1
21 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
22 91312-04008 BOLT HEX.SOCKET HEAD 2 M4X8
23 91312-04010 BOLT HEX.SOCKET HEAD 4 M4X10
24 91312-04022 BOLT HEX.SOCKET HEAD 2 M4X22
25 91312-06010 BOLT HEX.SOCKET HEAD 2 M6X10
26 91312-06020 BOLT HEX.SOCKET HEAD 4 M6X20
27 91312-08030 BOLT HEX.SOCKET HEAD 6 M8X30
28 90990-12J001 SCREW BIN.HEAD W/W 14
29 92902-04200 WASHER PLAIN 2
30 92902-06200 WASHER PLAIN 2
31 92902-08600 WASHER PLAIN 6
32 90172-00J040 WASHER,EXTL.TOOTHED 2
33 KGA-M37P0-00 VALVE KIT 1 Spare
34 KKS-M3413-00 PLUG JOINT 1
35 KKS-M3405-S0 STAND,1/2 SET 1 OK MG30148-2010/4/5
36 $UYD10-6 JOINT 1 OK MF90115-209/9/18
