CP-642E P ARTS LIST ver08 2 6 - 1 - 2 2 6 . 1 . カムボックス3 ( W P A ) 2 6 . 1 . C a m b o x 3 ( W P A ) 2 6 . 1 . カムボックス3 ( W P A ) 2 6 . 1 . C a m b o x 3 ( W P A )  ﾀ ﾃ x 1 7 3 . 2 0 5 R e f . 3 1 - 1 R e f . 3 1 - 1 R e …

100%1 / 218
CP-642E PARTS LIST ver08
26 - 1 - 1

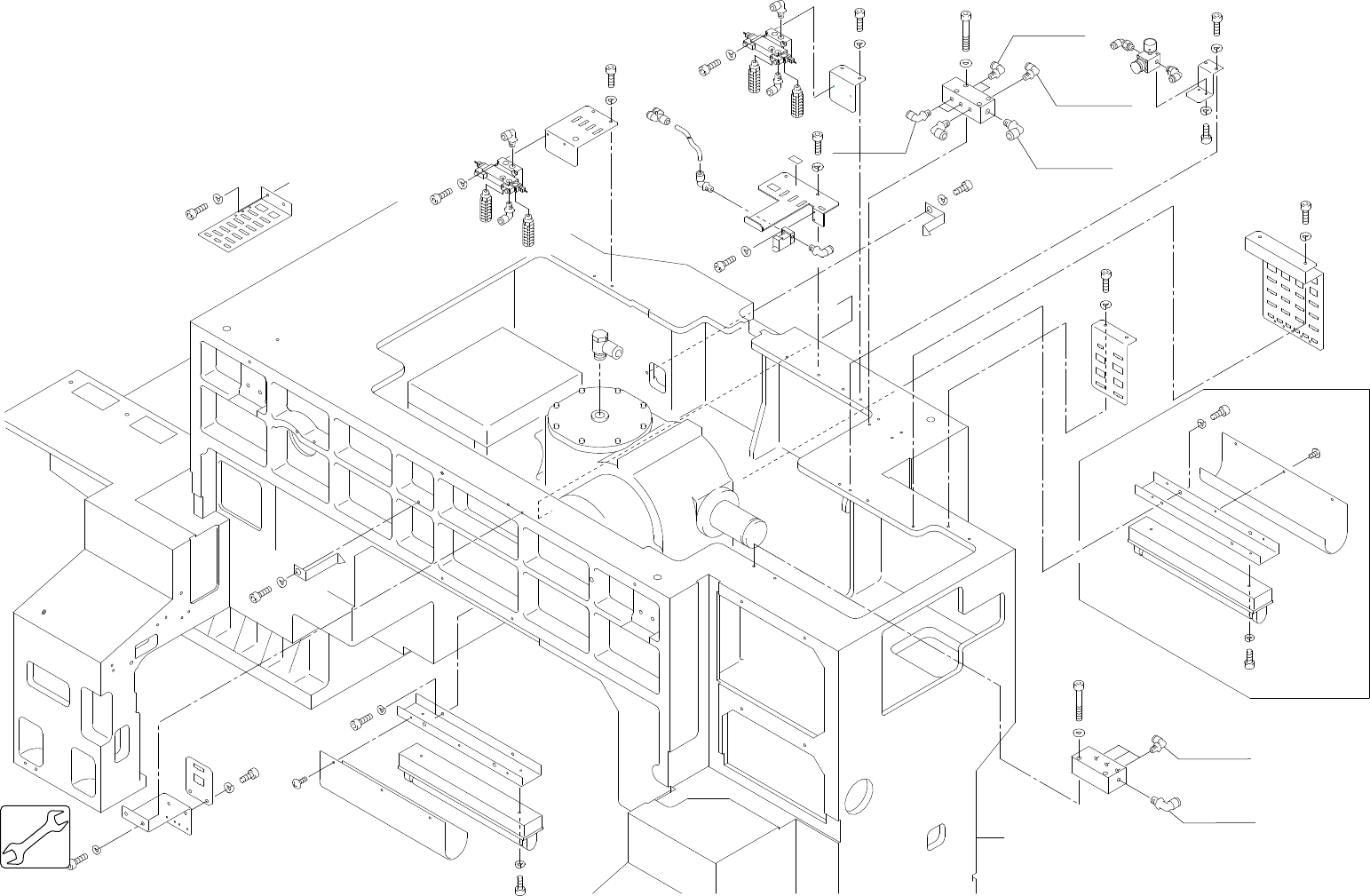

26.1.カムボックス3(WPA)
26.1.Cam box 3(WPA)
26.1.カムボックス3(WPA)
26.1.Cam box 3(WPA)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
Ref.19-4
53
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
A
x2
62
30
32
58
63
65
62
53
77
41
46
46
40
61
52
62
53
35
41
60
47
76
78
75
53
79
78
33
63
58
45
45
64
56
80
48
44
40
53
37
41
46
41
46
61
47
52
38
62
53
49
42
60
39
62
74
53
62
56
93
94
90
92
88
87,95
91
89
62
31
43
45
47
34
62
57
62
62
54
67
68
29
54
28,96
61
51
防音カバー取付時のみ
Used only when the noise reduction cover is attched
85
47
62
A
A
97
CP-642E PARTS LIST ver08
26 - 1 - 2
26.1.カムボックス3(WPA)
26.1.Cam box 3(WPA)
26.1.カムボックス3(WPA)
26.1.Cam box 3(WPA)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
Ref.19-4
LOCTITE572
LOCTITE572
LOCTITE572
A
A
LOCTITE572
LOCTITE572
LOCTITE572
26.1.カムボックス 3(WPA)
26.1.Cam box 3(WPA)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
28 S2010K 1 LAMP (Select Parts) ﾗﾝﾌﾟ(選択部品) FT-11001 (60HZ) 注1. Note.1 OT
29 MPA3540 1 BKT BKT 注1. Note.1 FE
30 WPA0521 1 BKT BKT FE
31 WWZ0082 1 PLATE ﾌﾟﾚｰﾄ FE
32 WPA0470 1 NAMEPLATE, ARROW 銘板 矢印 FE
33 WPA0462 1 NAMEPLATE, ARROW 銘板 矢印 FE
34 WPA5130 1 JOINT, ROTARY ｼﾞｮｲﾝﾄ ﾛｰﾀﾘ OT
35 WWZ0331 1 PLATE ﾌﾟﾚｰﾄ FE
37 WWZ0320 1 BKT BKT FE
38 WPA1840 1 BKT BKT FE
39 WWZ0115 1 PLATE ﾌﾟﾚｰﾄ FE
40 H1067F 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL A12PD25-1P-02-E OT
41 S1053T 4 SILENCER ｻｲﾚﾝｻ SL-M5 OT
42 H10246 1 VALVE, PRESSURE REDUCING ﾊﾞﾙﾌﾞ 減圧 R002-01G OT
43 WPI0010 1 TERMINAL ﾀｰﾐﾅﾙ AL
44 WPI0020 1 TERMINAL ﾀｰﾐﾅﾙ AL
45 A4043A 7 ELBOW ｴﾙﾎﾞ PL6-01(1/8) OT
46 A4045A 6 ELBOW ｴﾙﾎﾞ PL6-02(1/4) OT
47 A4045Z 4 ELBOW ｴﾙﾎﾞ PL8-01(1/8) OT
48 A4046A 1 ELBOW ｴﾙﾎﾞ PL8-02(1/4) OT
49 H5275A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X8L FE
51 H5287A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X8L FE
52 H5293A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X25L FE
53 H5298A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X10L FE
54 H5299A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X12L FE
56 H5309A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X50L FE
57 H5297A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X8L FE
58 H5321A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X12L FE
60 W1021A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
61 W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
62 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
63 W1024A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
64 W1012A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-5-L FE
65 WWZ0281 1 PLATE ﾌﾟﾚｰﾄ FE
67 K5209A
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ M4X8L FE
