35.アウトコンベア(逆流れ)(オプション)(WQC) 35.Out conveyor(Right to left board flow)(Option)(WQC) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 1 H5285A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X…

100%1 / 218
CP-642E PARTS LIST ver08
35 - 1

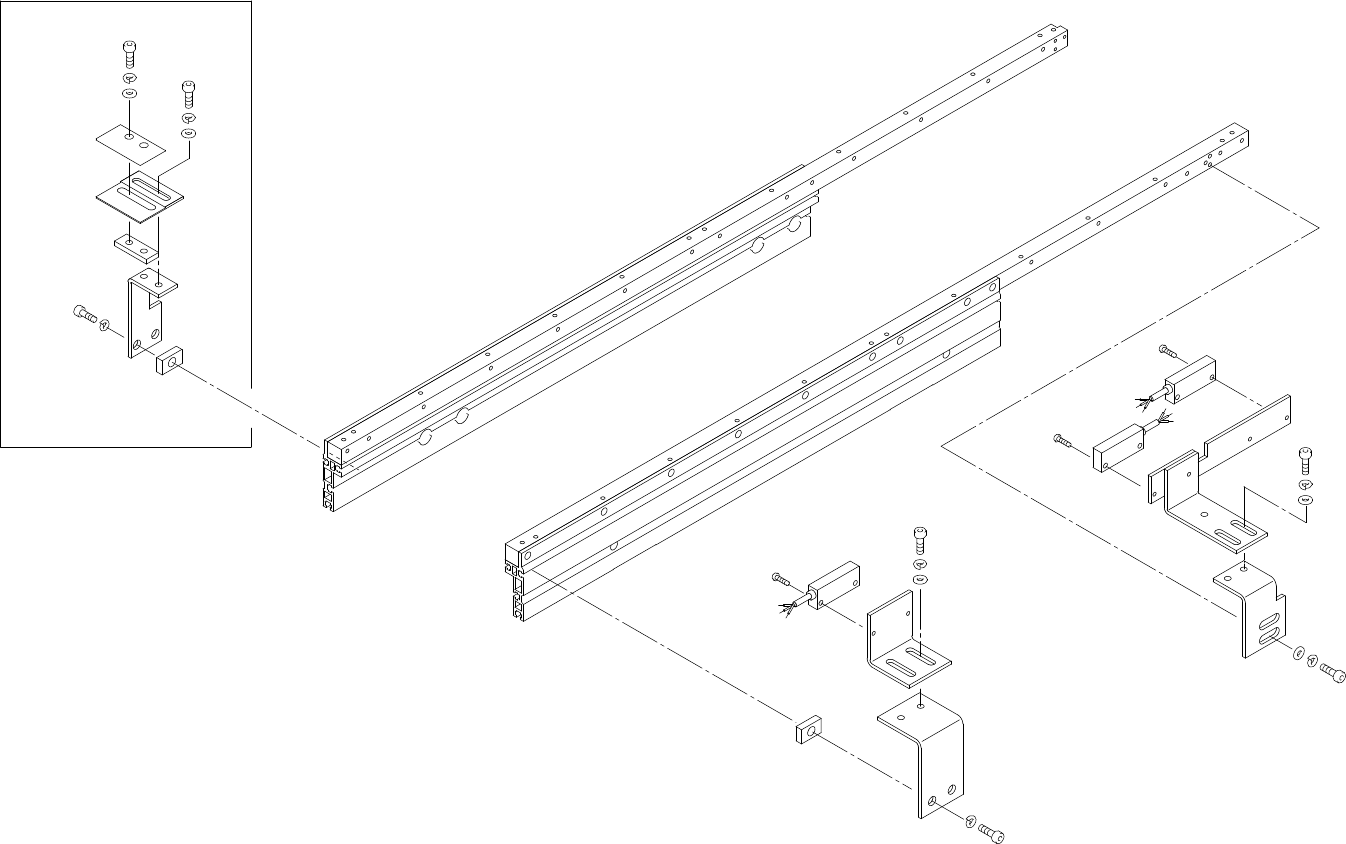

35.アウトコンベア(逆流れ)(オプション)(WQC)
35.Out conveyor(Right-to-left board flow)(Option)(WQC)
35.アウトコンベア(逆流れ)(オプション)(WQC)
35.Out conveyor(Right-to-left board flow)(Option)(WQC)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
Ref.19-4
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
A
x2
13
26
29
30
32
31
23
6
25
7
9
19
20
21
27
15
16
22
18
1
2
3
4
5
14
28
24
17
10
11
12
8
HELPS
33
33
33
35.アウトコンベア(逆流れ)(オプション)(WQC)
35.Out conveyor(Right to left board flow)(Option)(WQC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 H5285A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X5L (HELPS) FE
2 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M (HELPS) FE
3 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4 (HELPS) FE
4 GVC1151 1 DOG ﾄﾞｯｸﾞ (HELPS) FE
5 GVC1160 1 NUT ﾅｯﾄ (HELPS) FE
6 H5285A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X5L (HELPS) FE
7 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M (HELPS) FE
8 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4 (HELPS) FE
9 GVC1141 1 DOG ﾄﾞｯｸﾞ (HELPS) FE
10 H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10L (HELPS) FE
11 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M (HELPS) FE
12 MQC5110 1 BKT BKT (HELPS) FE
13 IQC6072 2 NUT ﾅｯﾄ (HELPS) FE
14 S3122A 1 SW, PHOTOELECTRIC SW 光電 E3S-LS3C1D OT
15 H5285A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X5L FE
16 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
17 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4 FE
18 GVC2182 1 BKT, SENSOR BKT ｾﾝｻ FE
19 H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10L FE
20 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
21 MQC4092 1 BKT, SENSOR BKT ｾﾝｻ FE
22 IQC6072 2 NUT ﾅｯﾄ FE
23 S3122A 1 SW, PHOTOELECTRIC SW 光電 E3S-LS3C1D OT
24 S3122Z 1 SENSOR ｾﾝｻ E3S-LS3RC4 OT
25 H5285A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X5L FE
26 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
27 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4 FE
28 MQC5130 1 BKT, SENSOR BKT ｾﾝｻ FE
29 H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10L FE
30 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
31 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5 FE
32 MQC3630 1 BKT, SENSOR BKT ｾﾝｻ FE
33 K5177A SCREW,C/R PAN 小ﾈｼﾞ 十穴鍋 M2.5X14L FE
CP-642E PARTS LIST ver08
35 - 2
35.アウトコンベア(逆流れ)(オプション)(WQC)
35.Out conveyor(Right to left board flow)(Option)(WQC)
CP-642E PARTS LIST ver08
36 - 1
36.インコンベア(逆流れ)(オプション)(WQC)
36.In conveyor(Right-to-left board flow)(Option)(WQC)
36.インコンベア(逆流れ)(オプション)(WQC)
36.In conveyor(Right-to-left board flow)(Option)(WQC)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
Ref.19-4
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
A
x2
HELPS
49
36
37
38
39
34
35
40
45
46
47
43
48
42
32
31
27
33
29
28
14
50
16
15
17
13
9
12
11
10
5
50
5
20
19
41
18
7
30
26
22
23
25
1
2
4
6
3
49
24
HELPS
51
51
51
A
A
52
21
44
