CP-642E PARTS LIST ver08
43 - 1

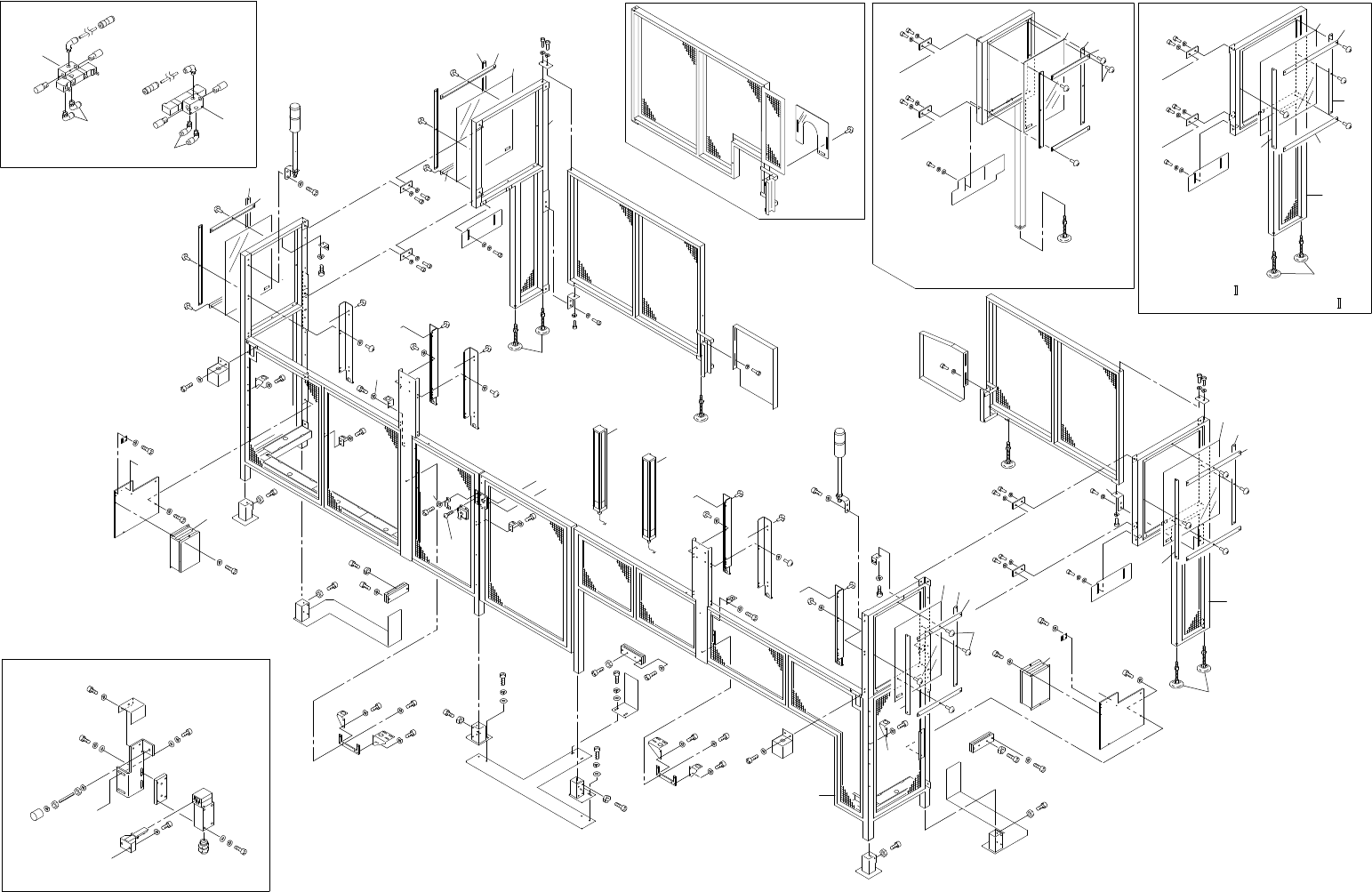

43.フェンス(オプション)(WAF)
43.Fence (Option)(WAF)
43.フェンス(オプション)(WAF)
43.Fence (Option)(WAF)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
Ref.19-4
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
A
x2
17
17
18
18
19
18
19
101
18
19
101
A
B
19
D
25
50
44
50
45
48
53
5243
24
54
45
26
C
23
22
43
47
37
43
44
20
73
21
48
36
90
84
83
HELPS
128
122
124
127
53
42
125
48
127
42
123
44
126
46
41
46
126
41
125
118
42
119
120
53
118
117
41
46
46
116
48
41
117
44
120
42
オプション（ＧＬ−５４１Ｅ用継ぎフェンス）
Ｏｐｔｉｏｎ（Ｃｏｎｎｅｃｔｉｎｇ ｆｅｎｃｅ ｆｏｒ ＧＬ−５４１Ｅ）
オプション（ＧＬ− 用継ぎフェンス）
Ｏｐｔｉｏｎ（Ｃｏｎｎｅｃｔｉｎｇ ｆｅｎｃｅ ｆｏｒ ＧＬ− ）
42
121
115
53
29
44
B
36
95
43
11
44
37
31
45
38
40
50
12
43
36
106
C
D
114
53
43
33
93
36
113
44
16
40
50
46
50
3
51
40
105
45
43
36
109
110
43
36
107
50
40
49
9
38
45
50
51
40
49
16
38
46
45
15
108
10
49
38
45
40
50
2
43
1
29
53
44
36
107
106
43
45
110
36
104
104
F
E
F
E
42
112
42
44
43
36
103
102
42
44
42
27
41
46
37
42
92
44
E
102
42
44
50
12
40
105
36
13
43
5
6
42
42
13
6
40
4
50
16
50
40
51
46
A
11
44
37
36
31
95
43
38
45
75
111
71
46
76
41
100
48
53
44
76
41
71
46
41
46
41
46
79
42
42
78
78
111
77
80
41
46
81
36
43
99
36
98
43
71
112
43
36
F
F
E
42
44
42
42
103
44
42
102
42
103
42
44
71
41
46
46
79
41
74
100
48
44
53
76
41
46
80
41
46
78
78
111
76
46
41
42
42
111
42
77
92
36
43
6
13
42
42
42
13
6
5
46
27
41
82
131
133
132
130
129
74
43.フェンス(オプション)(WAF)
43.Fence(Option)(WAF)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 WAF1259 1 FENCE, SAFETY ﾌｪﾝｽ 安全 FE
2 WAF1564 1 PLATE ﾌﾟﾚｰﾄ FE
3 WAF2320 1 STAND ｽﾀﾝﾄﾞ FE
4 WAF2330 1 STAND ｽﾀﾝﾄﾞ FE
5 AWAF8540 2 COVER ｶﾊﾞｰ OT
6 WAF1080 4 RETAINER, COVER 押え ｶﾊﾞｰ AL
9 WAF1630 1 STAND ｽﾀﾝﾄﾞ FE
10 WAF1620 1 STAND ｽﾀﾝﾄﾞ FE
11 WAF0991 2 PLATE ﾌﾟﾚｰﾄ FE
12 BPZ3023 2 STAND ｽﾀﾝﾄﾞ FE
13 GXZ2240 4 RETAINER, COVER 押え ｶﾊﾞｰ AL
15 GPZ2460 1 BKT BKT FE
16 WAF2160 3 BKT, RETAINER BKT 押え FE
17 H1073F 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL PCD345-01D-D24SP OT
18 S1056A 4 SILENCER ｻｲﾚﾝｻ AN101-01 OT
19 S2171B 6 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL6-01 OT
20 GPZ4221 1 BKT BKT FE
21 GPZ4290 1 COVER ｶﾊﾞｰ FE
22 GPZ4242 1 SPACER ｽﾍﾟｰｻ FE
23 S31970 1 SW, LIMIT SW ﾘﾐｯﾄ XCK-J5970 OT
24 S31973 1 SW, LIMIT SW ﾘﾐｯﾄ ZCK-Y09 OT
25 SZ42002 1 BOLT ﾎﾞﾙﾄ FE
26 M1003A 1 MAGNET ﾏｸﾞﾈｯﾄ KM025C OT
27 H2003T 2 SIGNAL, TOWER ｼｸﾞﾅﾙﾀﾜｰ SEF102AF-Y OT
29 AWEM-7301 2 BOX, SW BOX, SW OT
31 AWEE-7701 2 BOX TERMINAL BOX ﾀｰﾐﾅﾙ OT
33 H1018D 1 HANDLE ﾊﾝﾄﾞﾙ THA-299-2 OT
36 H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L FE
37 H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X16L FE
38 H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X16L FE
40 H5326A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X25L FE
41 H5340A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X16L FE
42 K5215A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M5X10L FE
43 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
44 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
CP-642E PARTS LIST ver08
43 - 2
43.フェンス(オプション)(WAF)
43. Fence(Option)(WAF)
43.フェンス(オプション)(WAF)
43.Fence(Option)(WAF)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
45 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
46 W1025A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M FE
47 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4 FE
48 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5 FE
49 W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6 FE
50 N1085A NUT, HEX ﾅｯﾄ 六角 M6 P=1.0 FE
51 H5344A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X35L FE
52 H5296A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X40L FE
53 H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10L FE
54 H5294A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X30L FE
71 H5145H 6 BOLT, LEVELING ﾎﾞﾙﾄ ﾚﾍﾞﾘﾝｸﾞ TM-257-No3 (Option) FE
73 N2029Z 1 SEAL ｼｰﾙ STR13.5 OT
74 WAF0572 1 FENCE ﾌｪﾝｽ FE
75 WAF0582 1 FENCE ﾌｪﾝｽ (Option) FE
76 WAF0620 4 JOINT ｼﾞｮｲﾝﾄ (Option) FE
77 AGPZ8141 2 COVER ｶﾊﾞｰ (Option) OT
78 GPZ4320 4 RETAINER, COVER 押え ｶﾊﾞｰ (Option) AL
79 WAF0840 2 BKT, FENCE BKT ﾌｪﾝｽ (Option) FE
80 WAF0850 2 PLATE, JOINT ﾌﾟﾚｰﾄ ｼﾞｮｲﾝﾄ (Option) FE
81 WAF0881 1 FENCE ﾌｪﾝｽ (Option) FE
82 WAF2211 1 FENCE ﾌｪﾝｽ 注1. Note.1(Option) FE
83 AWAF8570 1 PLATE ﾌﾟﾚｰﾄ 注1. Note.1(Option) OT
84 WAF2271 1 FENCE ﾌｪﾝｽ 注2. Note.2(Option) FE
90 K5207A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M4X5L FE
92 WAF1310 2 BKT BKT FE
93 WAF1320 1 BKT BKT FE
95 WAF1340 2 BKT BKT FE
98 WAF0930 1 COVER, SIDE ｶﾊﾞｰ ｻｲﾄﾞ (Option) FE
99 WAF0940 1 COVER, SIDE ｶﾊﾞｰ ｻｲﾄﾞ (Option) FE
100 WAF0660 2 COVER ｶﾊﾞｰ H=900∼965 (Option) FE
101 Y3033A 2 UNION, HALF ﾕﾆｵﾝ ﾊｰﾌ KCH06-00 OT
102 WAF2171 3 BKT, SENSOR BKT ｾﾝｻ FE
103 WAF2181 3 BKT, SENSOR BKT ｾﾝｻ FE
104 S40363 2 SENSOR, AREA ｾﾝｻ ｴﾘｱ FGS-450-21-1 OT
105 MPZ5110 2 BKT, PIPING BKT 配線 FE
