6.2.基板クランプ(WSS) 6.2.Board clamping unit(WSS) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 155 WSS5360 1 BLOCK ﾌﾞﾛｯｸ FE 156 WSS5370 1 LEVER ﾚﾊﾞｰ FE 157 H5300A BOLT,…

100%1 / 218
6.2.基板クランプ(WSS)
6.2.Board clamping unit(WSS)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
18 WSS4303 1 HOLDER, PIN ﾎﾙﾀﾞ ﾋﾟﾝ FE
19 WSS4313 1 HOLDER, PIN ﾎﾙﾀﾞ ﾋﾟﾝ FE
20 WSS4351 2 PLATE, STOPPER ﾌﾟﾚｰﾄ ｽﾄｯﾊﾟ FE
36 WSS4720 1 BKT, SENSOR BKT ｾﾝｻ FE
37 WSS4730 1 BKT, SENSOR BKT ｾﾝｻ FE
38 WSS4742 2 PLATE ﾌﾟﾚｰﾄ FE
39 WSS4750 2 DOG ﾄﾞｯｸﾞ FE
40 WSS4760 1 PIN, LOCATING ﾋﾟﾝ 位置決め φ3 注1. Note1. FE
41 AWSS8510 1 PIN, DIAMOND-SHAPED ﾋﾟﾝ ﾀﾞｲﾔ φ3 注2. Note2. OT
48 GPT0550 2 SPRING ｽﾌﾟﾘﾝｸﾞ FE
49 WSS5330 1 SPRING ｽﾌﾟﾘﾝｸﾞ FE
73 S1021A 1 SIR-CLIP ｻｰｸﾘｯﾌﾟ ST-EW-3 OT
99 S4032T 1 SENSOR ｾﾝｻ UM-T50TV OT
105 WSS4842 1 GUIDE ｶﾞｲﾄﾞ AL
106 WSS4851 1 COVER 蓋 FE
107 WSS4864 1 COVER 蓋 FE
108 WSS4874 1 CLAMPER ｸﾗﾝﾊﾟ FE
109 WSS4884 1 CLAMPER ｸﾗﾝﾊﾟ FE
110 WSS4892 1 BLOCK ﾌﾞﾛｯｸ FE
111 WSS4902 1 BLOCK ﾌﾞﾛｯｸ FE
112 WSS4911 1 COVER ｶﾊﾞｰ AL
113 WSS4921 1 COVER 蓋 FE
114 WSS4934 1 COVER 蓋 FE
115 WSS4941 1 COVER 蓋 FE
116 WSS4954 1 COVER 蓋 FE
121 K5261A
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ    M5X10L FE
122 K5255T
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ    M3X6L FE
127 W1021A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
139 H5276A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X10L FE
141 H5274A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X6L FE
142 W1012A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-5-L FE
143 H5304A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X25L FE
149 WSS5250 1 PIN, PIVOT ﾋﾟﾝ 支点 FE
153 WSS5340 1 BLOCK ﾌﾞﾛｯｸ FE
154 WSS5350 1 LEVER ﾚﾊﾞｰ FE
CP-642E PARTS LIST ver08
6 - 2 - 2
6.2.基板クランプ(WSS)
6.2.Board clamping unit(WSS)
6.2.基板クランプ(WSS)
6.2.Board clamping unit(WSS)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
155 WSS5360 1 BLOCK ﾌﾞﾛｯｸ FE
156 WSS5370 1 LEVER ﾚﾊﾞｰ FE
157 H5300A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X15L FE
注1.仕様選択部品]WSS4760(3ﾟ),WSS4781(4ﾟ),WSS5000(3.2ﾟ),WSS5020(2.4ﾟ),WSS5040(2.5ﾟ),WSS5060(3.07ﾟ),WSS5080(3.4ﾟ)
WSS5100(3.9ﾟ),WSS5120(3.95ﾟ),WSS5140(3.5ﾟ),WSS5310(3.4ﾟ)
注2.仕様選択部品]AWSS8510(3ﾟ),AWSS8520(4ﾟ),AWSS8530(3.2ﾟ),AWSS8540(2.4ﾟ),AWSS8550(2.5ﾟ),AWSS8560(3.07ﾟ),AWSS8570(3.4ﾟ)
AWSS8580(3.9ﾟ),AWSS8590(3.95ﾟ),AWSS8600(3.5ﾟ),AWSS8610(3.45ﾟ)
Note.1:(Specified part selection)]WSS4760(3ﾟ),WSS4781(4ﾟ),WSS5000(3.2ﾟ),WSS5020(2.4ﾟ),WSS5040(2.5ﾟ),WSS5060(3.07ﾟ),WSS5080(3.4ﾟ)
WSS5100(3.9ﾟ),WSS5120(3.95ﾟ),WSS5140(3.5ﾟ),WSS5310(3.4ﾟ)
Note.2:(Specified part selection)]AWSS8510(3ﾟ),AWSS8520(4ﾟ),AWSS8530(3.2ﾟ),AWSS8540(2.4ﾟ),AWSS8550(2.5ﾟ),AWSS8560(3.07ﾟ)
AWSS8570(3.4ﾟ), AWSS8580(3.9ﾟ),AWSS8590(3.95ﾟ),AWSS8600(3.5ﾟ),AWSS8610(3.45ﾟ)
CP-642E PARTS LIST ver08
6 - 2 - 3
6.2.基板クランプ(WSS)
6.2.Board clamping unit(WSS)
CP-642E PARTS LIST ver08
6 - 3 - 1

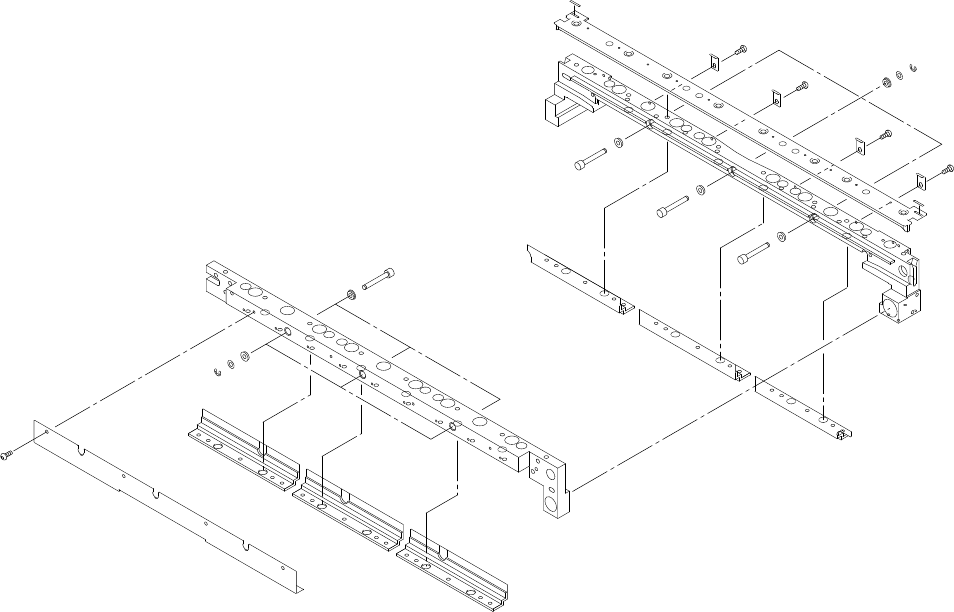

6.3.基板クランプ(オプション)(WSS)
6.3.Board clamping unit(option)(WSS)
6.3.基板クランプ(オプション)(WSS)
6.3.Board clamping unit(option)(WSS)
