7.X スライド(WSX) 7.X slide(WSX) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg. No. & Code No. QTY Description Rating Remarks Materials 1 WSX4016 1 SLIDE, X-AXIS ｽﾗｲﾄﾞ X軸 AL 2 WSX4021 1 BALL SCREW ﾎﾞｰﾙﾈｼﾞ OT 3 WSX4030 1 GUID…
CP-642E PARTS LIST ver08
7 - 2

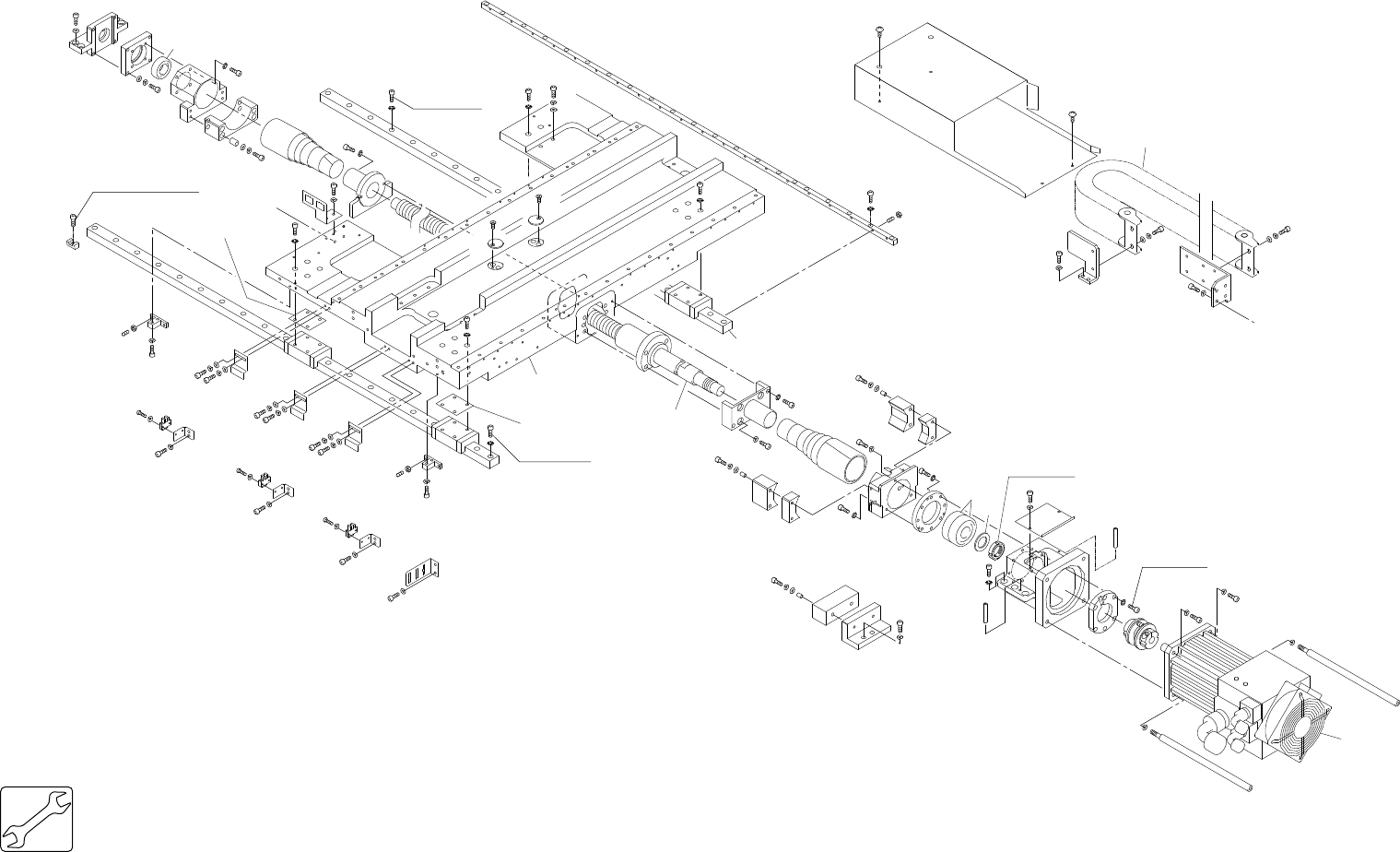

7.X スライド(WSX)
7.X slide(WSX)
7.X スライド(WSX)
7.X slide(WSX)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
Ref.19-4
12.74N・m
6.86N・m
A
A
7.84N・m
12.74N・m
LOCTITE262
1.96∼3.92N・m
7.X スライド(WSX)
7.X slide(WSX)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No.
Drg. No. & Code No.
QTY Description Rating Remarks Materials
1 WSX4016 1 SLIDE, X-AXIS ｽﾗｲﾄﾞ X軸 AL
2 WSX4021 1 BALL SCREW ﾎﾞｰﾙﾈｼﾞ OT
3 WSX4030 1 GUIDE, RAIL ｶﾞｲﾄﾞ ﾚｰﾙ LS251138A2-001P51 OT
4 WSX4040 1 GUIDE, RAIL ｶﾞｲﾄﾞ ﾚｰﾙ LS251138A2-002P51 OT
5 WSX4082 1 COVER ｶﾊﾞｰ FE
9 CSSX0230 1 BKT BKT FE
10 WSX4141 1 BKT BKT FE
11 WSX4150 3 BKT BKT FE
13 CSSX0170 1 RETAINER,RAIL 押え ﾚｰﾙ FE
15 WSX4192 1 GUIDE ｶﾞｲﾄﾞ FE
16 WSX4221 1 BKT BKT FE
17 WSX4240 1 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ FE
19 WSX4260 1 COLLAR ｶﾗｰ FE
20 WSX4281 1 BKT, MOTOR BKT ﾓｰﾀ FE
21 WSX4291 1 COVER, BEARING 蓋 ﾍﾞｱﾘﾝｸﾞ FE
22 WSX4304 1 BKT, SUPPORT BKT 支え FE
23 WSX4311 1 HOLDER, BEARING ﾎﾙﾀﾞ ﾍﾞｱﾘﾝｸﾞ FE
24 WSX4320 2 COVER 蓋 FE
25 WSX4390 1 COUPLING ｶｯﾌﾟﾘﾝｸﾞ SFC-06S-22B-22B OT
26 WSX4400 2 BOLT ﾎﾞﾙﾄ FE
27 SAM1482 1 MOTOR, AC SERVO ﾓｰﾀ ACｻｰﾎﾞ SGMS-70A6V-FJ11 OT
28 H4161A 1 BEARING ﾍﾞｱﾘﾝｸﾞ 25TAC62BDB OT
29 N1026A 1
NUT, LOCK
ﾅｯﾄ ﾛｯｸ ZM025 FE
30 H4206H 1
BEARING
ﾍﾞｱﾘﾝｸﾞ 60/22ZZ OT
32 K4138X 1 FLEXIBLE TRACK ｹｰﾌﾞﾙﾍﾞｱ 250.05-075-27-2050.13P OT
33 CSSX0080 1 STOPPER ｽﾄｯﾊﾟ PL
34 WSX4511 2 STOPPER ｽﾄｯﾊﾟ 注2. Note.2 PL
35 CSSX0090 4 COLLAR ｶﾗｰ FE
36 GPT0792 20 RETAINER 押え FE
37 GPT0891 3 BKT, SW BKT SW FE
39 CSSX0100 10 WASHER ﾜｯｼｬ FE
40 H2075A 2 PIN, TAPER ﾋﾟﾝ ﾃｰﾊﾟ φ6X45L OT
41 S4040X 1
SENSOR, PHOTO
ｾﾝｻ ﾌｫﾄ EE-SPX306-W2A OT
42 S4040Z 2
SENSOR, PHOTO
ｾﾝｻ ﾌｫﾄ EE-SPX406-W2A OT
43 WSD0620 4 SPACER ｽﾍﾟｰｻ t=1.00 注1. Note.1 FE
CP-642E PARTS LIST ver08
7 - 3
7.X スライド(WSX)
7.X slide(WSX)
7.X スライド(WSX)
7.X slide(WSX)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No.
Drg. No. & Code No.
QTY Description Rating Remarks Materials
44 H5287A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X8L FE
45 H5288A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X10L FE
46 H5289A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X12L FE
47 H5292A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X20L FE
49 H5299A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X12L FE
50 H5300A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X15L FE
51 H5304A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X25L FE
52 H5308A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X45L FE
53 H5323A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X18L FE
54 H5322A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X15L FE
55 H5326A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X25L FE
57 H5342A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M8X25L FE
58 H5343A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M8X30L FE
59 W1021A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
60 W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
61 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
62 W1024A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
63 W1025A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M FE
64 W1043A
WASHER, FLAT
ﾜｯｼｬ 平
4W-4 FE
65 W1045A
WASHER, FLAT
ﾜｯｼｬ 平
4W-6 FE
66 W1050A
WASHER, FLAT
ﾜｯｼｬ 平
5M/MX1.0X10 FE
67 W1011A
WASHER, CONICAL
ﾜｯｼｬ 皿
M-4-L FE
68 W1012A
WASHER, CONICAL
ﾜｯｼｬ 皿
M-5-L FE
69 W1013A
WASHER, CONICAL
ﾜｯｼｬ 皿
M-6-H FE
70 N4035A SCREW, HEX SOCKET SET ﾈｼﾞ六角穴止め 4MX20L FE
71 K5173A
SCREW, C/R PAN
小ﾈｼﾞ 十穴鍋
M3X10L FE
72 N1080A
NUT, HEX
ﾅｯﾄ 六角
M4 P=0.7 FE
73 WSX4530 1 CATCH PAN 受け 皿 FE
74 WSX4420 1 HOLDER ﾎﾙﾀﾞ FE
75 CSSX0062 1 HOLDER ﾎﾙﾀﾞ FE
76 WSX4540 1 CATCH PAN 受け 皿 FE
77 CSSX0030 2 COVER, SCREW ｶﾊﾞｰ ｽｸﾘｭｳ OT
78 N4304A SCREW, HEX SOCKET SET ﾈｼﾞ六角穴止め M4X15L FE
80 WSX4460 2 BKT BKT FE
81 H5324A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M6X20L FE
