CP-642E PARTS LIST ver08
12 - 2

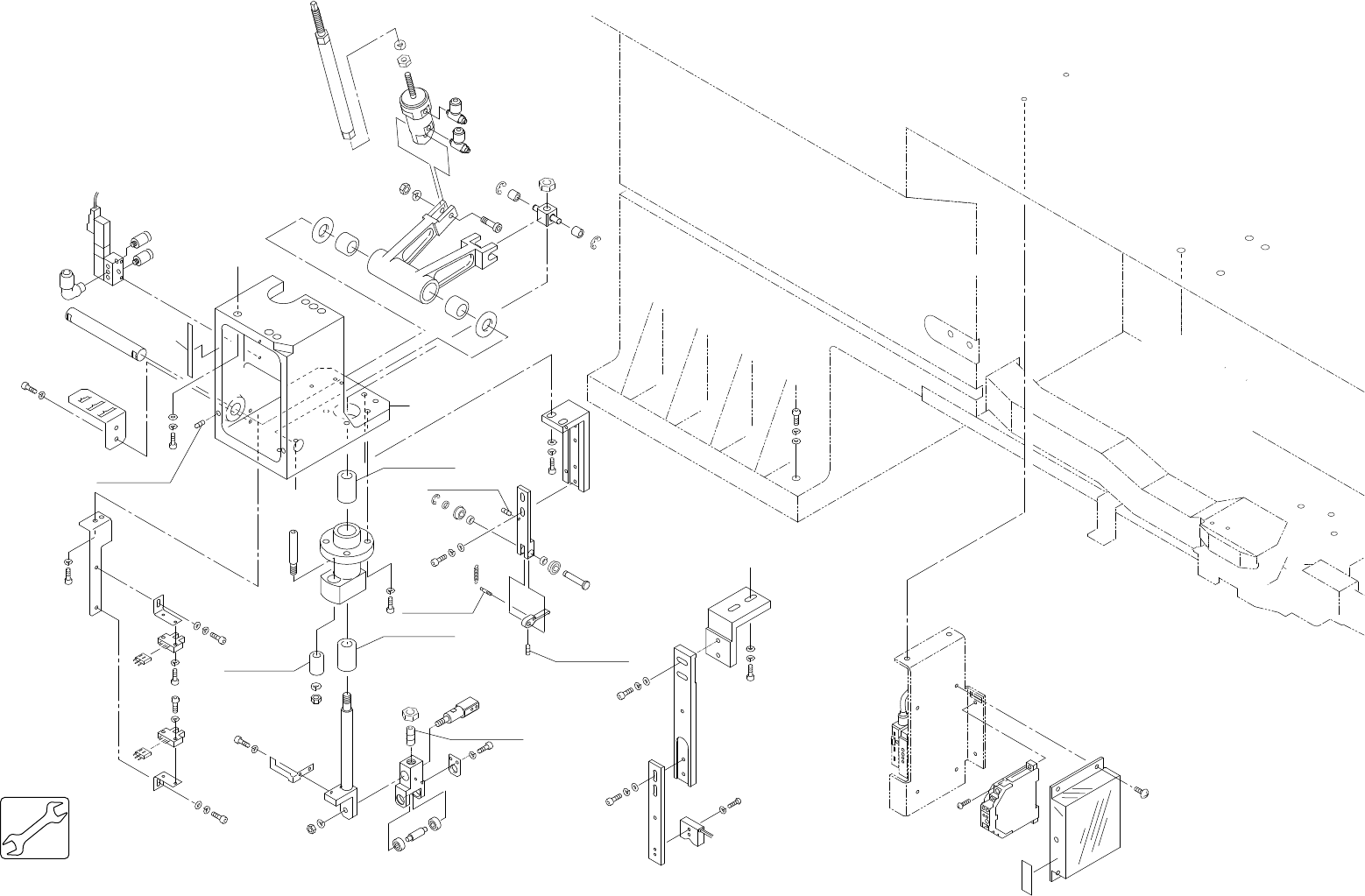

12.第1 ST(パーツ吸着)(WPL)
12.ST 1(Parts pick up)(WPL)
12.第1 ST(パーツ吸着)(WPL)
12.ST 1(Parts pick up)(WPL)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
Ref.19-4
A
A
B
B
LOCTITE222
LOCTITE601
LOCTITE262
LOCTITE262
LOCTITE222
LOCTITE601
LOCTITE601
LOCTITE222
12.第1 ST(パーツ吸着)(WPL)
12.ST 1(Parts pick up)(WPL)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 WPL0018 1 BKT BKT FE
2 WPL0024 1 LEVER ﾚﾊﾞｰ FE
3 WPL0031 1 PIN ﾋﾟﾝ FE
4 WPL0040 2 COLLAR ｶﾗｰ CO
5 WPL0390 1 PIN ﾋﾟﾝ FE
6 WPL0061 1 ROD, JOINT ﾛｯﾄﾞ ｼﾞｮｲﾝﾄ FE
7 WPL0071 1 PIN ﾋﾟﾝ FE
8 WPL0090 1 HOLDER ﾎﾙﾀﾞ FE
9 WPL0100 1 BAR, GUIDE ﾊﾞｰ ｶﾞｲﾄﾞ FE
11 WPL0410 1 PLATE, ARM ﾌﾟﾚｰﾄ ｱｰﾑ FE
12 WPL0130 1 PLATE ﾌﾟﾚｰﾄ FE
13 WPL0140 1 PIN ﾋﾟﾝ FE
14 WPL0372 1 BKT BKT FE
15 WPL0301 1 HOLDER, JAW ﾎﾙﾀﾞ 爪 FE
16 WPL0381 1 JAW 爪 FE
17 WPL0321 1 HING ﾋﾝｼﾞ HCCPH4-19 OT
18 WPL0191 1 HOOK, SPRING ﾌｯｸ ｽﾌﾟﾘﾝｸﾞ FE
19 WPL0201 1 HOOK, SPRING ﾌｯｸ ｽﾌﾟﾘﾝｸﾞ FE
20 WPL0220 1 SPRING ｽﾌﾟﾘﾝｸﾞ FE
21 WPL0352 1 BKT BKT FE
22 WPL0250 2 BKT BKT FE
23 WPL0420 1 DOG ﾄﾞｯｸﾞ FE
24 WPL0271 1 SHAFT ｼｬﾌﾄ FE
25 H4291T 2 BEARING, SLIDE ﾍﾞｱﾘﾝｸﾞ ｽﾗｲﾄﾞ LM12UU OT
26 H4432A 1 BEARING, BALL ﾍﾞｱﾘﾝｸﾞ ﾎﾞｰﾙ LM8UU OT
27 H3167A 1 PLUNGER, BALL ﾌﾟﾗﾝｼﾞｬ ﾎﾞｰﾙ BST-10 OT
28 H41148 2 BEARING ﾍﾞｱﾘﾝｸﾞ R-1450ZZ OT
29 S1023A 2 CIR-CLIP ｻｰｸﾘｯﾌﾟ ST-EW-5 OT
30 S1021A 1 CIR-CLIP ｻｰｸﾘｯﾌﾟ ST-EW-3 OT
31 H4390T 2 BEARING, NEEDLE ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ TA1515Z OT
32 WPL5012 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ KA25X8.2-813W OT
33 H1077T 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL PCS-242-M5-D24-SP OT
34 K5332C 2 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ SS4-M5A OT
35 H4401A 2 BEARING, NEEDLE ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ TLA69Z OT
36 S4040X 2 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EESPX306-W2A OT
CP-642E PARTS LIST ver08
12 - 3
12.第1 ST(パーツ吸着)(WPL)
12.ST 1(Parts pick up)(WPL)
12.第1 ST(パーツ吸着)(WPL)
12.ST 1(Parts pick up)(WPL)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
37 K5028H 2 CONNECTOR ｺﾈｸﾀ EE-1001 OT
38 H5273A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X5L FE
39 H5274A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X6L FE
40 H5276A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X10L FE
41 H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L FE
42 H5288A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X10L FE
43 H5324A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X20L FE
44 H5344A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X35L FE
45 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
46 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
47 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
48 W1025A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M FE
49 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4 FE
50 W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6 FE
51 N1085A NUT, HEX ﾅｯﾄ 六角 M6 FE
52 N1089A NUT, HEX ﾅｯﾄ 六角 M8 FE
53 N4047A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M6X10L FE
55 DCPL0130 1 PLATE ﾌﾟﾚｰﾄ FE
57 S3130A 1 SW, PHOTOELECTRIC SW 光電 PS-47 OT
58 H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L FE
59 W1023A 2 WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
60 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5 FE
61 H5302A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X20L FE
62 K5178T SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M3X12L FE
63 K5316A 1 CONTROLLER ｺﾝﾄﾛｰﾗ PS-25 DC Type OT
64 WGZ0160 1 COVER ｶﾊﾞｰ PL
65 K5209A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M4X8L FE
66 K5234A SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M4X8L FE
67 S2153H 2 JOINT ｼﾞｮｲﾝﾄ TSH-4-M5M OT
68 S2170B 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL6-M5 OT
69 WPL0310 1 COLLAR ｶﾗｰ FE
70 WPL0330 2 COLLAR ｶﾗｰ FE
71 H4444A 2 BEARING ﾍﾞｱﾘﾝｸﾞ LF-940ZZ OT
72 N4020T SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M3X5L FE
73 WWZ0202 1 PLATE ﾌﾟﾚｰﾄ FE
CP-642E PARTS LIST ver08
12 - 4
