Installation Manual Station Software Version 408.01 Checking entries The entries which you have made will be listed again: Fig. 4-16: Checking entries → Check the entries again. → If the entries are correct, click the Ne…
Installation Manual, Station Software Version 408.01 Edition 03/2006

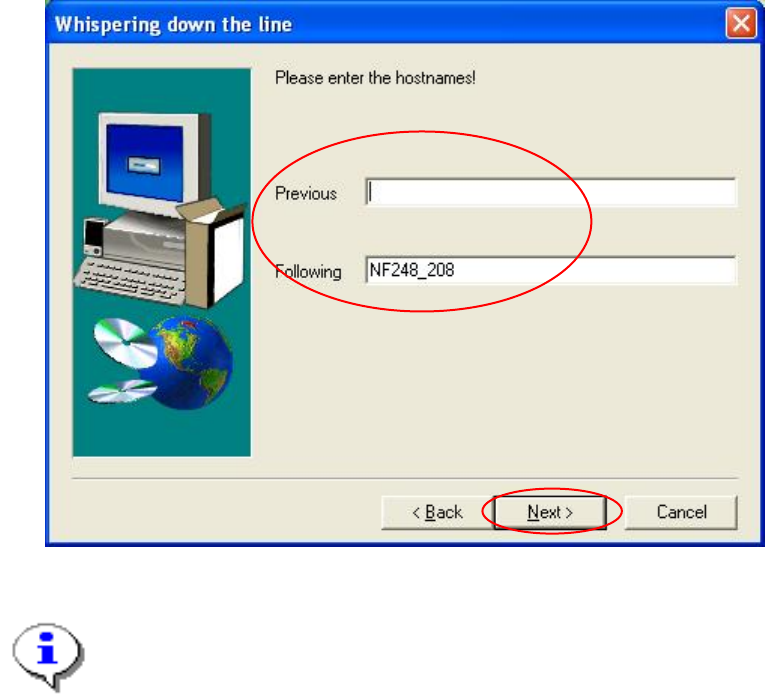

Fig. 4-15: Host names for "Whispering Down the Line"
Note:
When assigning names for the hosts, you must take the following rules into account:
At the beginnning of the host name, a vg should stand for the upstream
station and an nf for the downstream station.
Example: TCP/IP address Hostname
Station computer upstream station: 192.193.194.195 vg194_195
Station computer downstream station: 192.193.196.196 nf194_196
→ Click the Next button.
27 of 104
Installation Manual Station Software Version 408.01
Checking entries
The entries which you have made will be listed again:

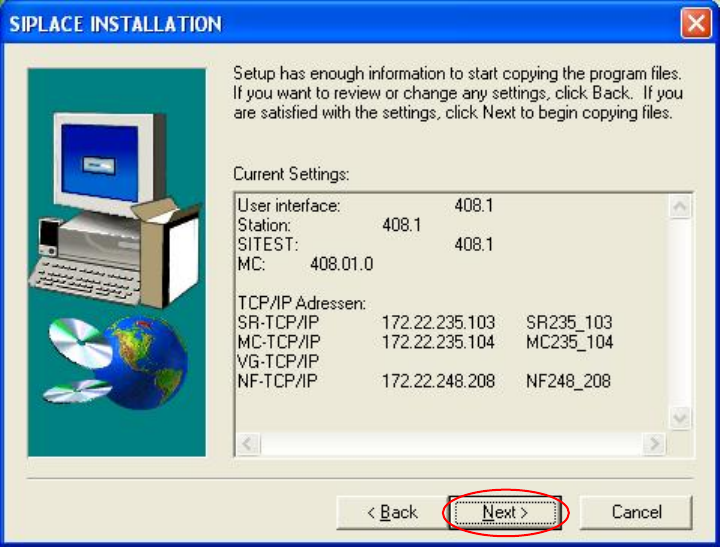

Fig. 4-16: Checking entries
→ Check the entries again.
→ If the entries are correct, click the Next button.
The installation program now copies all the required files from the CD to your station computer.
28 of 104
Installation Manual, Station Software Version 408.01 Edition 03/2006
Log book entries
→ Check the Show me the installation log box if you want to view the entries in log file. The
Notepad is started and displays the appropriate file.

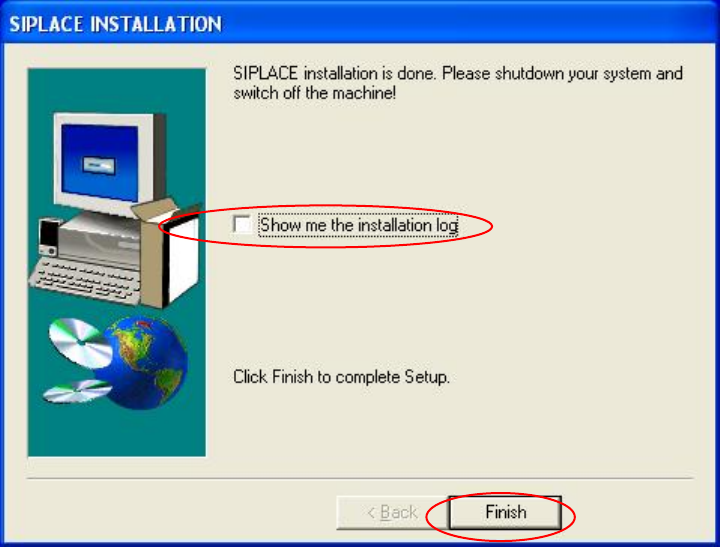

Fig. 4-17: Setup completed
→ Click the Finish button.
29 of 104
