Special tape channel for Tray Holder SX_20211124_033636 - 第8页
Special tape channel for Tray Holder SX Page 8 / 13 24.11.2021
Special tape channel for Tray Holder SX
Page 7 / 13 24.11.2021
Special tape channel for Tray Holder SX
Page 8 / 13 24.11.2021
Special tape channel for Tray Holder SX
Page 9 / 13 24.11.2021

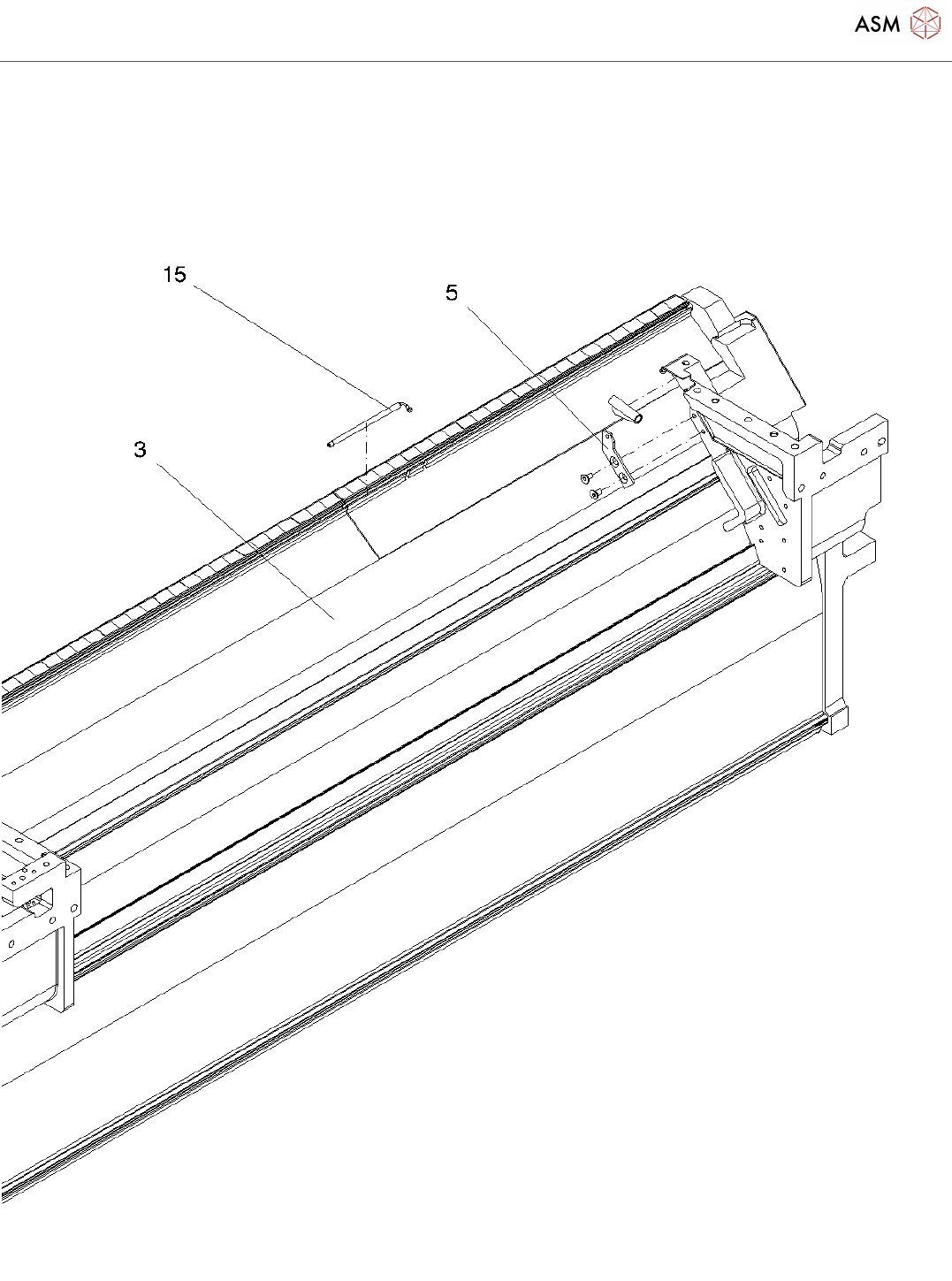

Pos. Item no. Description Part marking
00519840-01 SPECIFIC TAPE CHANNEL FOR TRAY
HOLDER SX
2 03080229S03 COT INSERT 60 MANUAL TRAY SPARE PART
3 03080232-02 USED TAPE CHANNEL COMPLETE
MANUAL TRAY
SPARE PART
4 03079593-03 USED TAPE CHANNEL MANUAL
TRAY
5 03087701-01 BLANK HOLDER
6 03080221-01 USED TAPE CHANNEL OUTER-
ASSEMBLY
7 03079641-01 TRACK RULER RIGHT
03059619S01 TRACK RULER, PITCH 11.8 / X
FEEDER - 60
WEAR PART
10 03079644-01 TRACK RULER LEFT
03059619S01 TRACK RULER, PITCH 11.8 / X
FEEDER - 60
WEAR PART
12 03086659-01 EXTENSION SPRING REFER. TO
SPECIFICATION
SPARE PART
13 03058073-01 USED TAPE CHANNEL, INSERT
(BOTTOM)
14 03058075-01 USED TAPE CHANNEL, INSERT (TOP)
15 03088027-01 LOCKING PIN
16 03039514-02 SHIM PLATE FOR NOZZLE REJECT
DEVICE
SPARE PART
17 03039517-02 DETACH. BACKING PLATE F.
NOZZLE REJECT D
18 03023238-01 ISO 7046-2-M3 X 6-A2-70-H STANDARD PARTS
19 03021079-01 NOZZLE CHANGER SHIM PLATE SPARE PART
20 03090664-01 NC DETACHABLE BACKING PLATE
(ISO)
21 03057772-01 FEEDER UNLOCK DEVICE 60-WAY SPARE PART
22 00330249-01 BLANKING PLUG QSC-4H STANDARD PARTS
23 03063492-06 CO-TABLE CENTRING /P001
24 03009853-01 CENTERING PIN, ROUND SPARE PART
25 03058008-01 SLOTTED RAIL SPARE PART
26 03058219-01 BOLT COMPLETE
27 03058217-01 BAR
28 03052935-01 Y BUFFER ELEMENT B2 SPARE PART
29 00200525-01 ELASTOMER SPRING D20X8,5 90 SPARE PART
