Service Work Conveyor
3.5.1 Fast Head Exchange Placement heads
Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 123

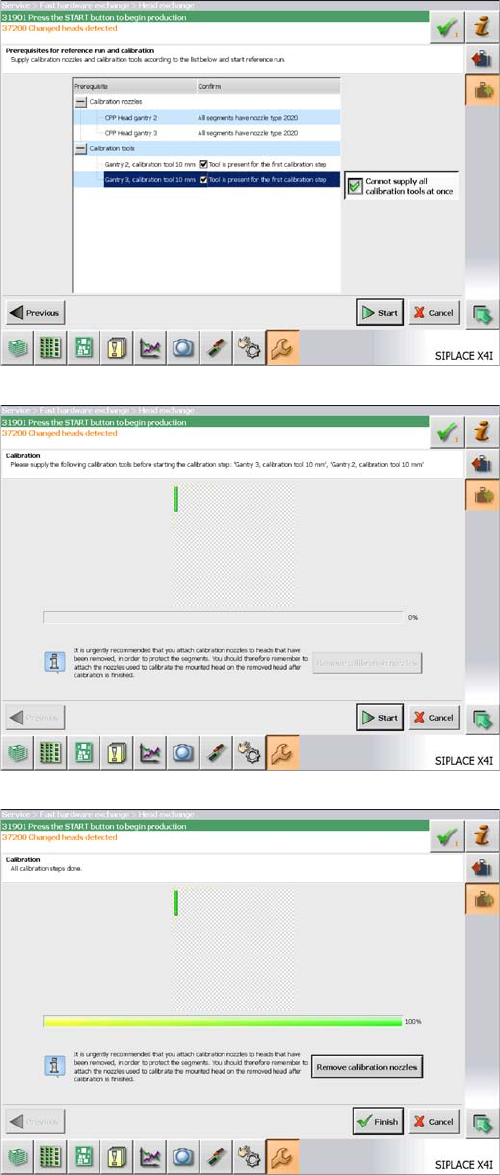

► The presence of calibration nozzles is checked here.
Make sure that the head is equipped with calibration
nozzles.
► If there is no calibration tool present for each head,
click on the "Cannot supply all calibration tools at
once button". You will be prompted to provide the cal-
ibration tool for each head individually.
► Click on "Start". A complete reference run will be car-
ried out.
► Provide the necessary calibration tools and click on
"Start". The calibration will be started.
► If there is an empty magazine in the machine after the
calibration has been completed, select the "Remove
calibration nozzles" button.
► Click on "Finish".
► If there are any problems during the reference run
(vacuum check), perform the "zero correction" for the
pressure control valve.
The Fast Head Exchange has now been completed and
production can be restarted.
Service Work Conveyor
Placement heads 3.5.2 Differentiation of the C&P20 Head Variants
124 Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02
3.5.2
3.5.2 Differentiation of the C&P20 Head Variants
Differentiation of the C&P20 Head Variants
C&P20 Differentiation
Differentiation of the C&P20 head variants

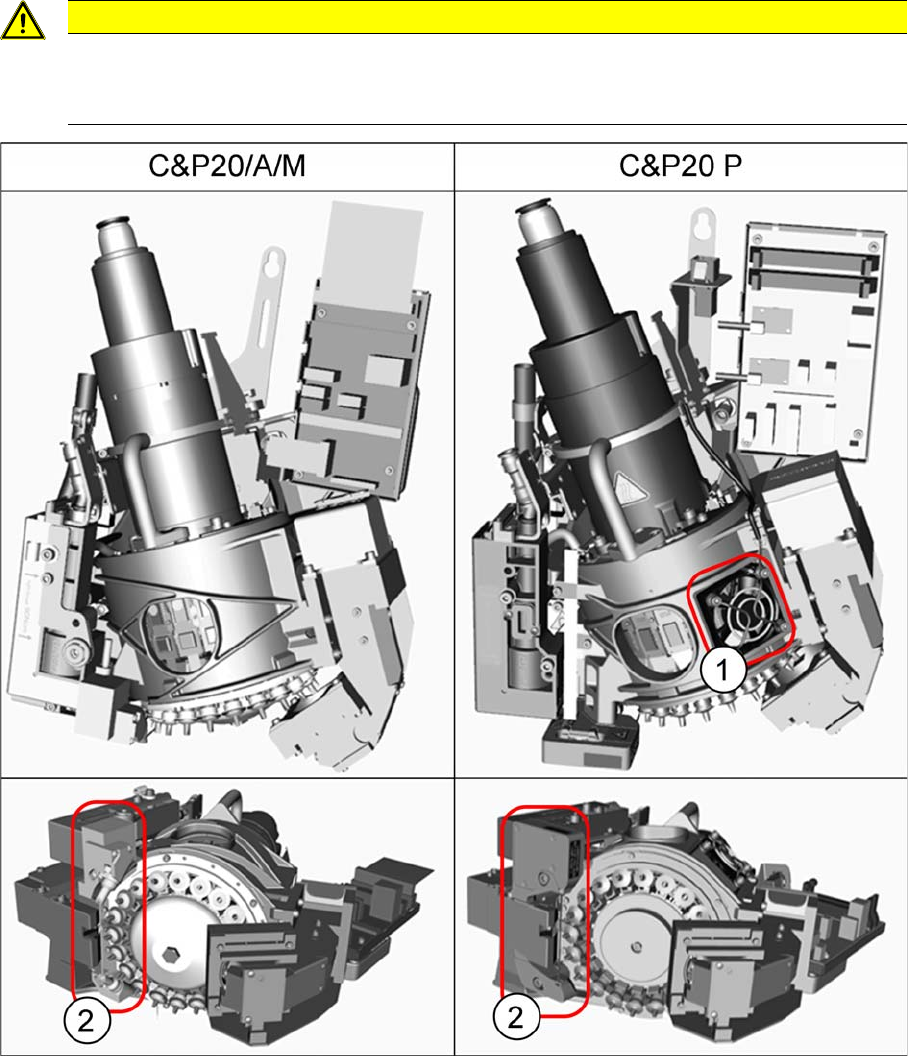

The C&P20/A/M and the C&P20 P head differ in many details. They are easily identified by the following
features:
1. The C&P20 P can be identified by the fan. This fan is not present on the C&P20/A/M heads.
2. The component sensor is flatter and wider on the C&P20 P than on the C&P20/A/M.
CAUTION
Do not confuse the different C&P20 head variants.
► Parts from the C&P20/A/M head can not usually be used for the C&P20 P head (and vice
versa)!
Service Work Conveyor
3.5.3 Replacing the C&P20/A/M Head Placement heads
Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 125
3.5.3
3.5.3 Replacing the C&P20/A/M Head
Replacing the C&P20/A/M Head
Complete contents; Replacing C&P20/A/M
Vacuum Test Before Removal
Parts, Equipment and Tools
▪ Select the placement head:
SXDX12V1V2 – No C&P20 M Heads
▪ Torque screwdriver 1-5 Nm [03078400-xx]
▪ Extension/straight TX20 [03073256-xx]
▪ Bit holder for Torque Vario-S screwdriver [03078706-xx]
▪ Torx Allen screwdriver TX8 [03080081-xx]
▪ Calibration tool version SST23 [03034148-xx]
▪ Protective hose for component sensor [03078596-xx]
▪ For additional work on the placement head:
Head assembly stand [03056231-xx]
Service manual "C&P20 / C&P20 A / C&P20 M head" [DE: 00197464-xx] [EN: 00197465-xx]
▪ For vacuum pump operation, if required:
- Assembly instructions "Vacuum pump X-Series S, SX4/DX4" [00196845-xx]
- Assembly instructions "Vacuum pump SX1/2, DX1/2" [00196614-xx]
- Assembly instructions "Vacuum pump X-Series (SC 70x)" [00196433-xx]
- Assembly instructions "Vacuum pump X-Series" [00195089-xx]
NOTICE
Vacuum test
► If required, perform a vacuum test before removing the placement head.
Read the "Service manual Vacuum test at C&P placement head" [DE+EN: 00196101-xx]
for this.
NOTICE
Fast Head Exchange (FHE)
► Observe the instructions in section "3.5.1 Fast Head Exchange" [➙119] when exchanging
a head.
NOTICE
Example
Replacement of the placement head is shown using the example of a C&P20 A machine. The
replacement procedure for other C&P20 placement heads is the same. Any differences will be
explicitly indicated.
Head type Camera Item no.
C&P20A With Camera SST23 03062095-xx
Without camera 03058420-xx
