Service Work Conveyor
3.5.4 Replacing the CPP Head Placement heads
Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 131
3.5.4.1
3.5.4.1 Preparing the Head for the Installation Height
Preparing the Head for the Installation Height
Overview
CAUTION
Different heights
The placement head can be installed at two different heights. CPP_L corresponds to a compo-
nent height of six mm. CPP_H corresponds to a component height of 11.5 mm.
If the CPP head is used in a placement area with stationary camera, TwinHead or WPC, it may
only be used in the upper position.
1. Fastening screws on the left side
2. Fastening screws on the right side
This diagram shows the fastening screws in the "head at
top" position.
1. Holding bracket
2. "Head at bottom" position
3. "Head at top" position
4. Fixture holes with bushings
Service Work Conveyor
Placement heads 3.5.5 Replacing the Twin/VHF Head
132 Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02
Conversion to another installation height
3.5.5
3.5.5 Replacing the Twin/VHF Head
Replacing the Twin/VHF Head
Parts, Equipment and Tools
▪ Select the relevant placement head:
– Twin Pick&Place module [03033628-xx]
– Twin Pick&Place module THK R2 [03097485-xx]
– Very High Force P&P head [00119813-xx]
– Very High Force Twin head [00119814-xx]
– Twin VHF [03096701-xx]
▪ Torque screwdriver 1-5 Nm [03078400-xx]
▪ Extension/straight TX20 [03073256-xx]
▪ Extension/straight [03043440-xx]
▪ Bit holder for Torque Vario-S screwdriver [03078706-xx]
▪ Calibration tool version 3 [03010565-xx]
SXDX12V1V2 Only
▪ If required, Camera view screen Twin-Head, SX1/2 [03079524-xx]
▪ For additional work on the placement head:
Head assembly stand [03056231-xx
Service manual "TH/VHF head" [DE: 00197468-xx]. [EN: 00197469-xx].
Overview
The Twin VHF consists of two identical Twin segments, which are fitted at an angle of 180°.

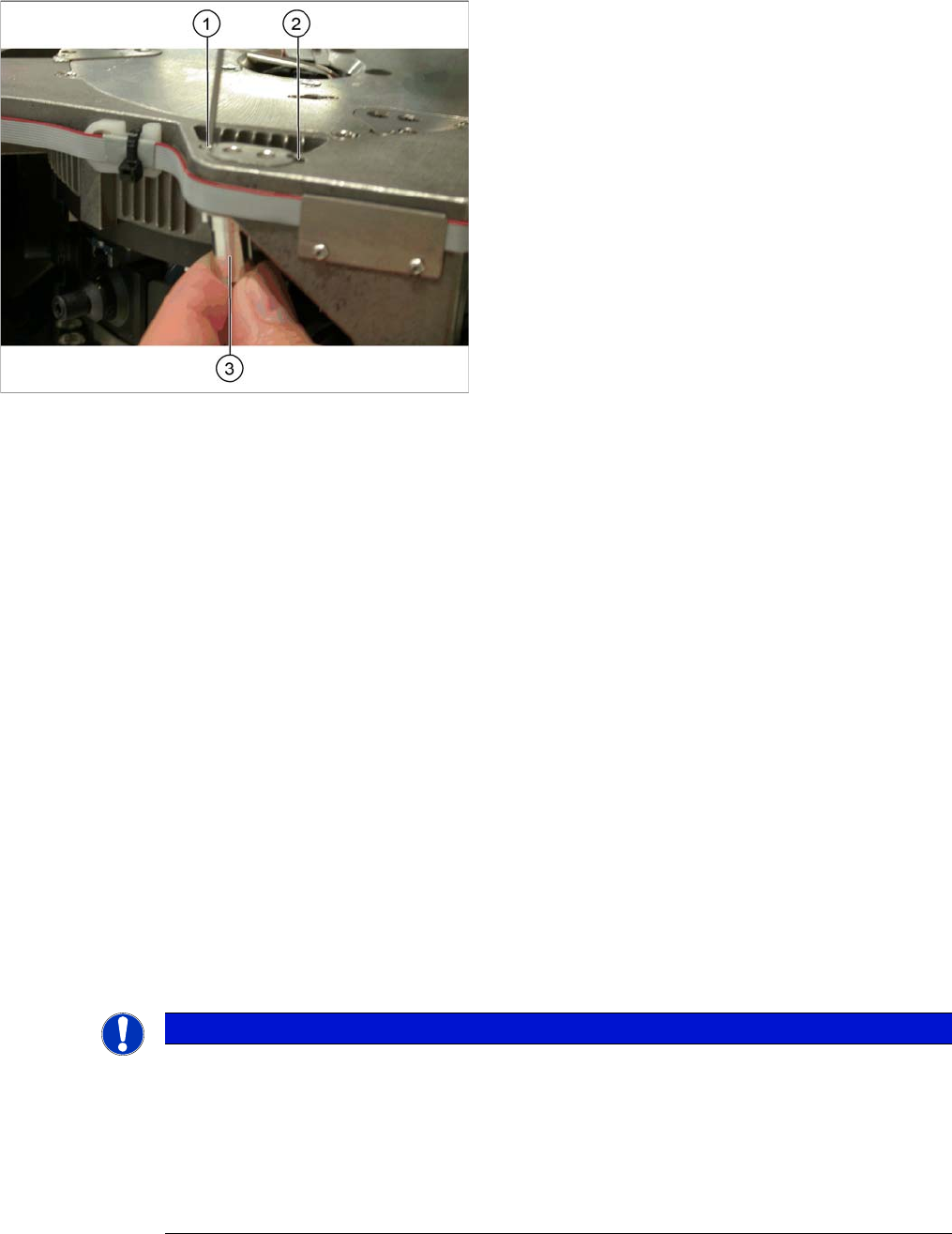

1. Drilling for the fastening screw of the bushing in "head
at bottom" position
2. Drilling for the fastening screw of the bushing in "head
at top" position
3. Bushing
All four bushings and the holding bracket must either be
fixed in top or bottom position.
Proceed as follows when replacing the bushings:
► Undo the fastening screws of the bushings.
► Insert the bushings in the correct position and re-
tighten them.
► Perform these steps for all four fastening bushings
and the holding bracket of the head.
NOTICE
Module 1 and 2
The removal procedure is described here for module 1 (left). Removal for module 2 (right) is the
same.
► In the case of older Twin heads, you need to remove module 1 before you can remove
module 2. During installation, module 2 needs to be fitted before module 1.
► In the case of newer Twin heads and all Twin VHF heads, the modules can be removed
and fitted individually.
Service Work Conveyor
3.5.5 Replacing the Twin/VHF Head Placement heads
Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 133
Removal
NOTICE!
When using modules with undetachable screws (1), you
may need to fit these screws on the other side, depending
on the installation position.
NOTICE
Twin and Twin VHF head
Removal and installation of the Twin VHF head follows the same procedure as that for the Twin
head. Any differences will be explicitly indicated.
► Switch off the machine, disconnect it from the power
supply and secure it to prevent unauthorized reacti-
vation. Observe the instructions in section "1.2 Pre-
paratory Work..." [ ➙ 13].
► Move the gantry into a position which allows you best
access.
► Unplug the pneumatic connection from the TwinHead
vacuum generator to the pneumatic distributor (1)
and the silencer.
► Disconnect the exhaust air silicone hose from the
TwinHead vacuum generator (4).
► Unplug the pneumatic connection from the pneumat-
ic distributor (1) to the TwinHead return cylinder.
► Unplug the flat ribbon cable (2) from the head main
board (3) on the TwinHead.
► Remove the camera screen (1). This is fastened with
two black screws (2).
NOTICE!
Only use these screws to fix the camera screen. This pre-
vents reflection when measuring components with the
stationary camera.
