Service Work Conveyor
Conveyor 3.6.1 Loosening the Conveyor Side Clamps
146 Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02
0440 - Title Version 2
Version 2
0445 - Version 2
0460 - Title Version 3
Version 3
0465 - Version 3
► Repeat these steps for all clamps on the sides concerned.
You can now move the sides.

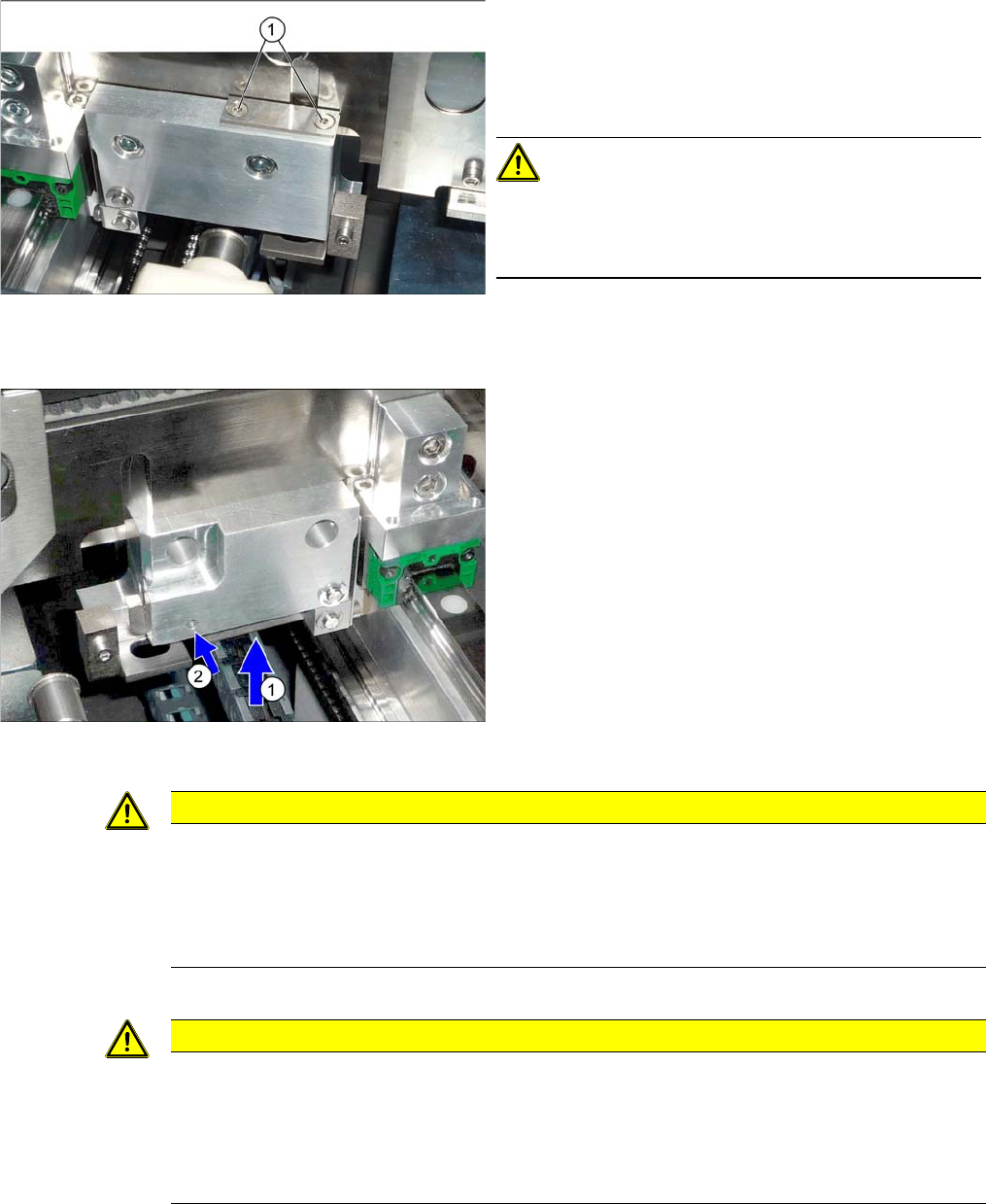

► Loosen the clamps on the conveyor sides.
To do this, remove the disks above the clamp com-
pression springs (2 screws for each disk). To do this,
undo both screws (1) on the clamps (2 x for each con-
veyor side).
CAUTION!
Compression springs
The compression springs are tensioned.
Make sure that you do not lose these.
► Loosen the conveyor side clamps.
To do this, press the lever (1) upwards and push a
suitable pin or a screw into the hole (2).
CAUTION
Always loosen all clamps for one conveyor side!
► Always loosen all clamps for one conveyor side!
SX1/SX2/DX1/DX2: 2 clamps per conveyor side
SX4/DX4/X series S: 3 clamps per conveyor side.
► If you do not loosen all clamps for the conveyor side, this could be easily damaged.
CAUTION
Moving the sides
► When the clamp is manually loosened, make sure that you only move the conveyor sides
by pushing against the clamping units.
► Make sure that you always move the conveyor sides parallel.
► Take care not to distort or trap the conveyor sides when pushing!
Service Work Conveyor
3.6.1 Loosening the Conveyor Side Clamps Conveyor
Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 147
Restoring the clamp
► Follow the removal instructions in reverse order for installation. Also observe the following instruc-
tions:
CAUTION
Installation instructions
► After completing the work, push the conveyor sides back into their approximate starting po-
sition.
► Make sure that the conveyor sides are back in their original positions after switching on.
► Perform a reference run.
► Perform side calibration for the fixed side on the left and right. If you do not, not all conveyor
sides will be calibrated.
This calibration is needed to ensure that the conveyor sides are positioned correctly.
► SX1/SX2 V2 and X-Series S only: Calibrate the board PCB sensors.
► Use a board to test the parallelism. This board must be transported evenly through the en-
tire conveyor (see also Setting the Parallelism of the Conveyor Sides).
► Re-establish the original conveyor configurations:
For more information, go to Service menu - Conveyor configuration - Set options for con-
veyor fixed rail.
Select one of the positions and click on the Adjust configuration button.
Then reset the conveyor sides to the previous configuration.
Service Work Conveyor
Conveyor 3.6.2 Lifting table
148 Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02
3.6.2
3.6.2 Lifting table
Lifting table
3.6.2.1
3.6.2.1 Replacing the Lifting Table Unit
Replacing the Lifting Table Unit
Parts, equipment and tools
▪ Lifting table single conveyor [03055147-xx] or
▪ Lifting table dual conveyor [03055148-xx]
▪ Depth measuring gauge (200 mm) [03079617-xx]
Overview
Removal
► Use the software to move the conveyor sides to a position which gives you good access to the lifting
table fixtures.
► Switch off the machine and secure it to prevent unauthorized reactivation. Observe the instructions
in section "1.2 Preparatory Work..." [ ➙ 13].
► Loosen the clamps on the conveyor sides (see "3.6.1 Loosening the Conveyor Side Clamps"
[ ➙ 143]).
► Loosen the screws fastening the two lifting table plates (four for each lifting table plate) and remove
the lifting table plates from the machine.
► Mark the positions of the lifting table plate guides to make it easier to refit them later on. Make sure
you do not confuse these.

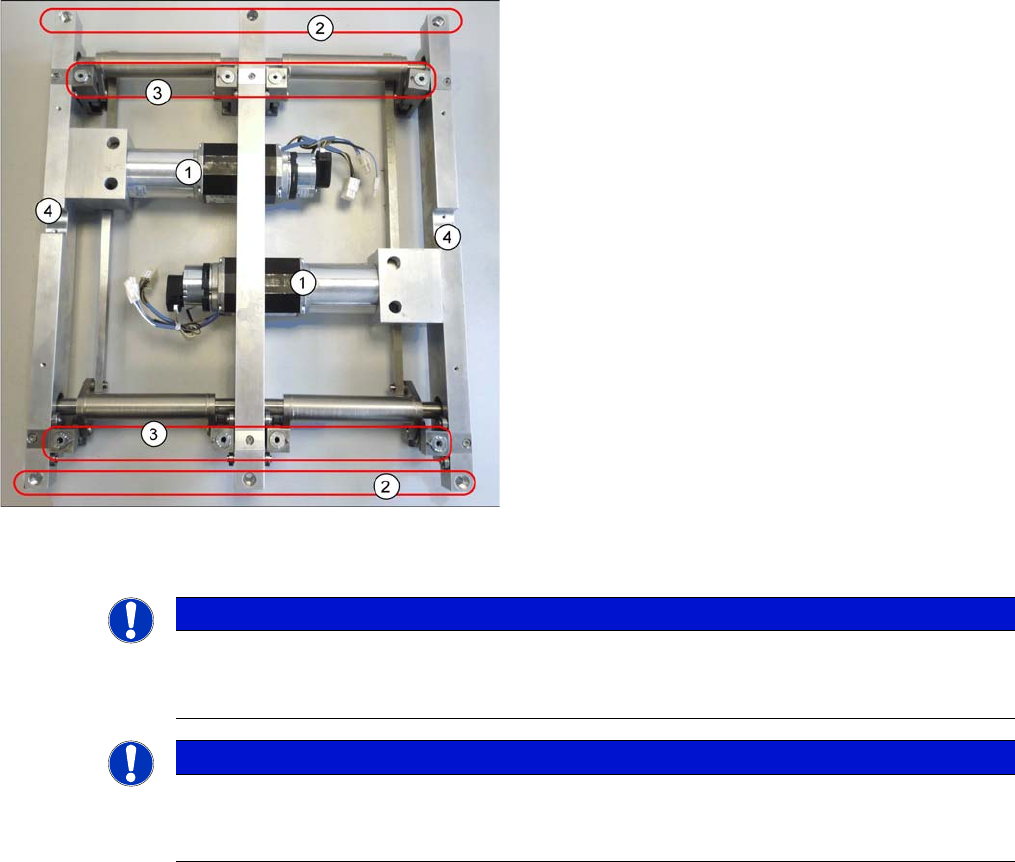

1. Lifting table motors
2. Holes for the fastening screws
3. Four lifting table plate guides
These are part of the lifting mechanism.
4. Fixtures for cable clamps
NOTICE
Single, dual conveyor
The replacement is shown in the diagram using the example of a lifting table unit for the dual
conveyor (DC). Replacement of the lifting table unit for the single conveyor (SC) is the same.
NOTICE
Lifting table up?
If the lifting table stays in the top position, you first need to disconnect the motor from the rods
(see "3.6.2.1.1 Manually Lowering the Lifting Table" [ ➙ 149]).
