Service Work Conveyor 3.6.5 Conveyor Belt, Belt Drive and Hexagonal Shaft Conveyor Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 167 3.6.5.3 3 . 6 . 5 . 3 R e p la c in g t h e H e x a g o n a l S h a f t [ 0 3 0 5 7 2 5 8…
Service Work Conveyor
Conveyor 3.6.5 Conveyor Belt, Belt Drive and Hexagonal Shaft
166 Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02
3.6.5.2
3.6.5.2 Replacing the Deflection Pulley
Replacing the Deflection Pulley
Parts, equipment and tools
▪ Deflection pulley, geared [03063837-xx]
▪ Deflection pulley, ungeared [03063838-xx]
Overview
Removal
► Use the software to move the conveyor sides into the position which allows you best access. Alter-
natively, you can also loosen the conveyor side clamps on the dual conveyor (see "3.6.1 Loosening
the Conveyor Side Clamps" [ ➙ 143]).
► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthorized
reactivation. Observe the instructions in section "1.2 Preparatory Work..." [ ➙ 13].
► Loosen the screw fastening the deflection pulley with slot.
► Loosen the fastening screw on the deflection pulley to be replaced.
► Unthread the deflection pulley from the conveyor toothed belt and remove it.
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following instruc-
tions:

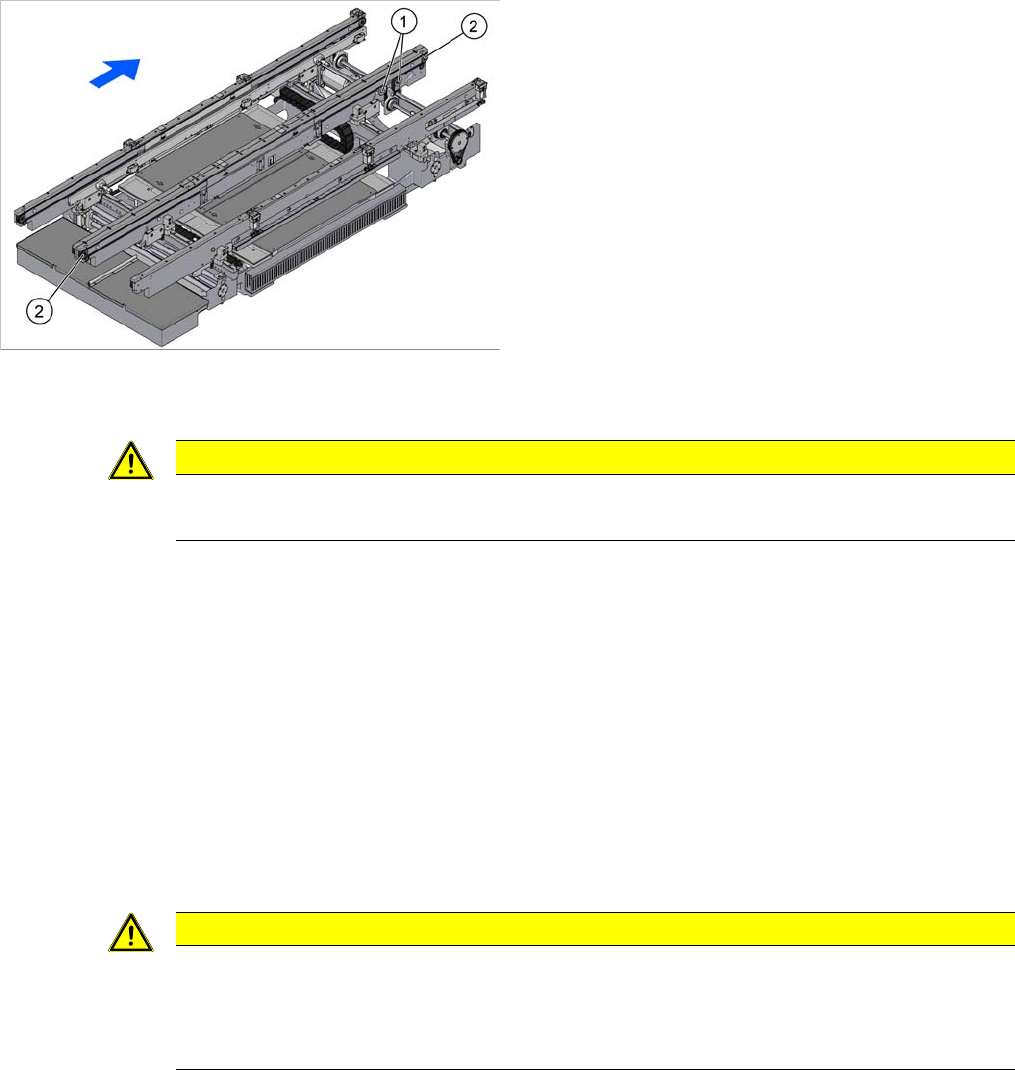

1. Deflection pulleys, ungeared
2. Deflection pulleys, geared
CAUTION
Toothed belt
► Make sure that the toothed belt is not folded or otherwise damaged.
CAUTION
Installation instructions
► Make sure that the toothed belt is not folded or otherwise damaged.
► After fitting all parts, set the toothed belt tension (see "4.6.1.2 Setting the Tension of the
Conveyor Toothed Belt" [ ➙ 275]).
Service Work Conveyor
3.6.5 Conveyor Belt, Belt Drive and Hexagonal Shaft Conveyor
Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 167
3.6.5.3
3.6.5.3 Replacing the Hexagonal Shaft [03057258-xx]
Replacing the Hexagonal Shaft [03057258-xx]
Parts, equipment and tools
▪ Hexagonal shaft assembly [03057258-xx]
Overview
Removal
► Use the software to move the conveyor sides into the position which allows you best access. Alter-
natively, you can also loosen the conveyor side clamps on the dual conveyor (see "3.6.1 Loosening
the Conveyor Side Clamps" [ ➙ 143]).
► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthorized
reactivation. Observe the instructions in section "1.2 Preparatory Work..." [ ➙ 13].
Installation
► Follow the removal instructions in reverse order for installation.

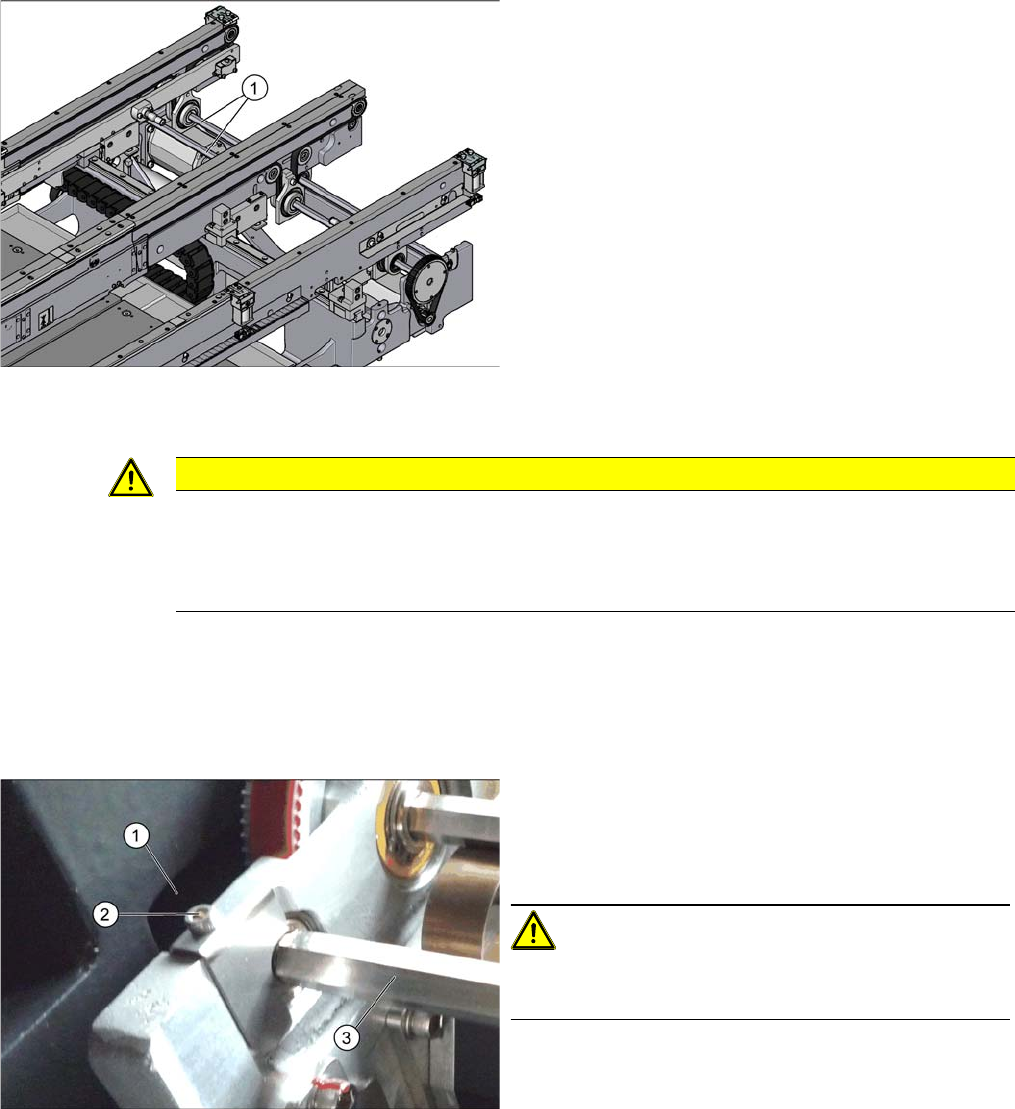

1. Hexagonal shafts
CAUTION
Do not damage the hexagonal shafts
Make sure that you do not damage the hexagonal shafts. If you do, this will impair the width
adjustment.
► Damaged hexagonal shafts must be replaced.
► Loosen the fastening (2) on the hexagonal shaft (3).
► You can now carefully push one side of the hexago-
nal shaft into the machine frame (1) and thread it out
of the conveyor sides, together with the bearing.
CAUTION!
There are cables run inside the machine frame.
Make sure you do not damage these cables.
Service Work Conveyor
Conveyor 3.6.5 Conveyor Belt, Belt Drive and Hexagonal Shaft
168 Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02
3.6.5.4
3.6.5.4 Replacing the Conveyor Toothed Belt [03055417-xx]
Replacing the Conveyor Toothed Belt [03055417-xx]
Parts, equipment and tools
▪ Toothed belt Brecoflex 10 T5/3185 z=637 [03055417-xx]
Overview

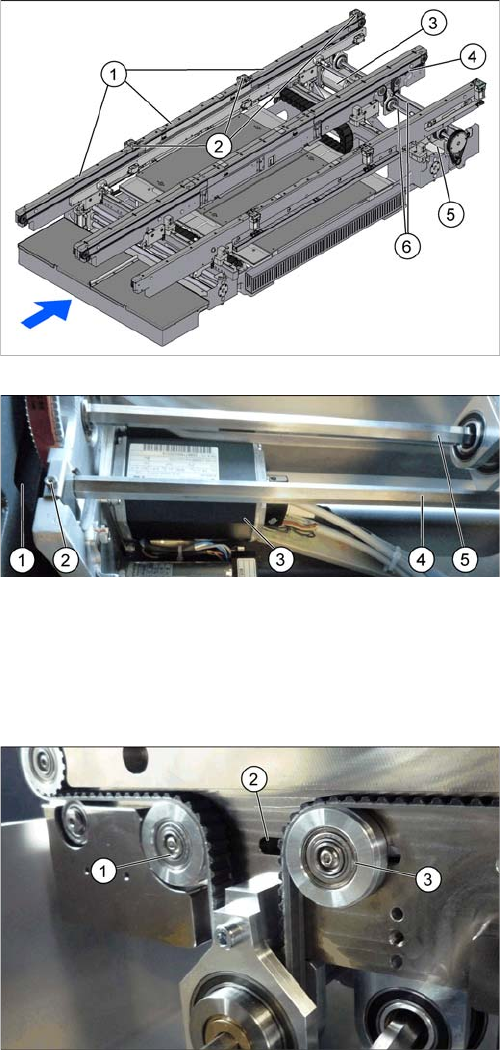

1. Guide rails (3x per side)
2. Stoppers (3x per outer side)
3. Conveyor drive for lane 2
4. Conveyor toothed belt (1x per side)
5. Conveyor drive for lane 1
6. Hexagonal shafts (2x)
The hexagonal shafts for conveyor lanes 1 and 2 can be
moved after the respective fastening screws have been
loosened.
1. Opening in the machine frame for moving the hexag-
onal shaft
2. Screw fastening the hexagonal shaft for conveyor
lane 1 (the fastening screw for the hexagonal shaft of
conveyor lane 2 is on the opposite side of the convey-
or)
3. Conveyor drive
4. Hexagonal shaft for conveyor lane 1
5. Hexagonal shaft for conveyor lane 2
1. Fixed deflection pulley
2. Slot
3. Idler pulley (movable deflection pulley)
