Service Work Conveyor
3.6.6 Clamping plate Conveyor
Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 171
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following instruc-
tions:
3.6.6.2
3.6.6.2 Replacing the Compression Spring on the Clamping Plate [00364715-xx]
Replacing the Compression Spring on the Clamping Plate [00364715-xx]
Parts, equipment and tools
▪ Compression spring 0.63*5.63*26 [00364715-xx]
Removal
► Dismantle the clamping plate (see "3.6.6.1 Replacing the Clamping Plate" [ ➙ 170]).
► Remove the compression spring.
Installation
► Follow the removal instructions in reverse order for installation.
See also
3.6.1 Loosening the Conveyor Side Clamps [ ➙ 143]
3.6.6.3
3.6.6.3 Replacing the Sliding Strips and Sliding Carriage
Replacing the Sliding Strips and Sliding Carriage
Parts, equipment and tools
▪FS01:
Sliding strips [03052960-xx]
Sliding carriage [03052961-xx]
▪FS02:
Sliding strips [03084492-xx]
Sliding carriage [03084491-xx]
▪ Loctite 241 [02101037-xx]
CAUTION!
Installation instructions
Reinsert the compression springs (1).
Check the clamping plate for ease of movement.
NOTICE
FS01 and FS02
The pressure springs are identical for conveyors with FS01 and those with FS02.
NOTICE
Replace together
We recommend that you always replace the sliding strips and sliding carriage together.
There are six sliding strips and three sliding carriages fitted for each clamping plate.
It is also advisable to replace the clamping plate guides at the same time (see "3.6.6.4 Replac-
ing the Clamping Plate Guides " [ ➙ 173]).
Service Work Conveyor
Conveyor 3.6.6 Clamping plate
172 Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02
Overview
Removal
► Use the software to move the conveyor sides into the position which allows you best access. Alter-
natively, you can also loosen the conveyor side clamps on the dual conveyor (see "3.6.1 Loosening
the Conveyor Side Clamps" [ ➙ 143]).
► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthorized
reactivation. Observe the instructions in section "1.2 Preparatory Work..." [ ➙ 13].
► Dismantle the clamping plate (see "3.6.6.1 Replacing the Clamping Plate" [ ➙ 170]).
► Loosen the two screws fastening the sliding strip and remove the sliding strip.
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following instruc-
tions:
See also
3.6.1 Loosening the Conveyor Side Clamps [ ➙ 143]

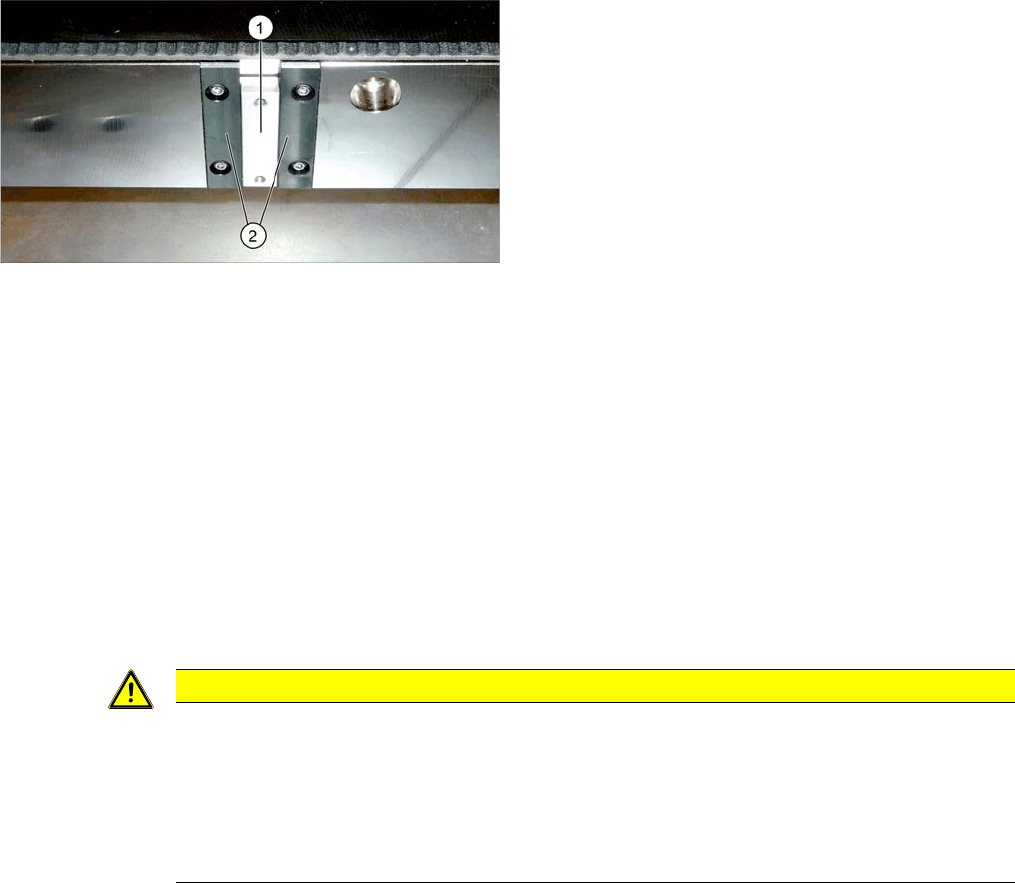

1. Sliding
2. Sliding strips
CAUTION
Installation instructions
► When screwing tight, press the sliding strips sideways, away from the sliding carriage, as
far as the stop.
► Secure the screws (DIN-EN-ISO7380-M3x8-A2-70 [03040338-xx]) fastening the sliding
strips with Loctite 241.
► Check the sliding carriage for ease of movement.
Service Work Conveyor
3.6.6 Clamping plate Conveyor
Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 173
3.6.6.4
3.6.6.4 Replacing the Clamping Plate Guides
Replacing the Clamping Plate Guides
Parts, equipment and tools
▪ FS01: Clamping plate guides, plastic [03066634-xx]
▪ FS02: Clamping plate guides, brass [03084490-xx]
Overview
Removal
► Use the software to move the conveyor sides into the position which allows you best access. Alter-
natively, you can also loosen the conveyor side clamps on the dual conveyor (see "3.6.1 Loosening
the Conveyor Side Clamps" [ ➙ 143]).
► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthorized
reactivation. Observe the instructions in section "1.2 Preparatory Work..." [ ➙ 13].
► Dismantle the clamping plate (see "3.6.6.1 Replacing the Clamping Plate" [ ➙ 170]).
► Loosen the screws fastening the clamping plate guides and then remove these guides.
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following instruc-
tions:
See also
3.6.1 Loosening the Conveyor Side Clamps [ ➙ 143]
3.6.6.1 Replacing the Clamping Plate [ ➙ 170]
NOTICE
Replace together
We recommend that you always replace all clamping plate guides for one clamping plate at the
same time.
Each clamping plate has two guides for FS01 and four for FS02.
It is also advisable to replace the sliding strips and sliding carriage at the same time (see ). (see
"3.6.6.3 Replacing the Sliding Strips and Sliding Carriage" [ ➙ 171]).

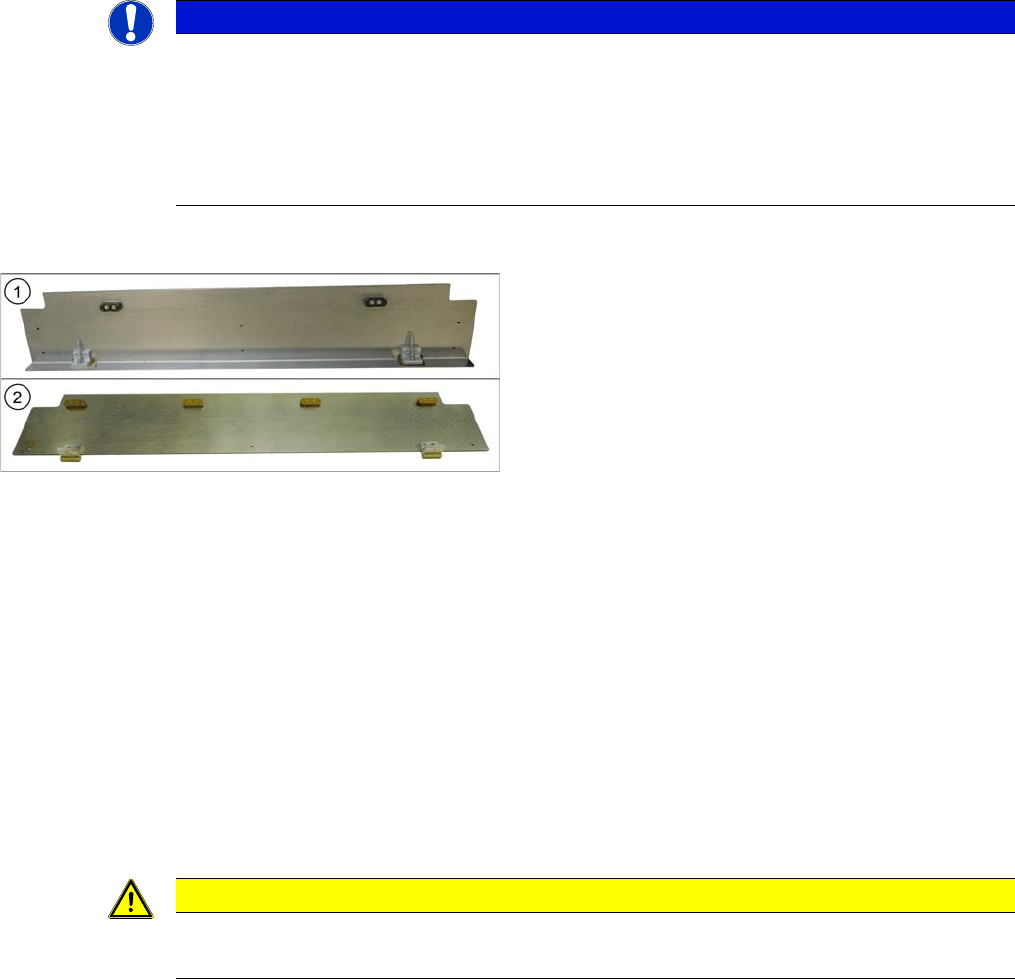

1. Clamping plate assembly [03055141-xx] for FS01
with 2 plastic clamping plate guides [03066634-xx]
2. Clamping plate assembly [03084918-xx] for FS02
with 4 brass clamping plate guides [03084490-xx]
CAUTION
Installation instructions
► Check the clamping plate for ease of movement.
