Service Work Conveyor Component Trolley SX 3.7.2 Replacing the Insert Feeder [03002898-xx] 186 Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 3.7.2 3 . 7 . 2 R e p la c in g t h e I n s e r t F e e d e r [ 0 3 0 0 2 8 9 8 -…
Service Work Conveyor
3.7.1 Replacing the Fixed/Guide Castors Component Trolley SX
Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 185
3.7
3.7 Component Trolley SX
Component Trolley SX
3.7.1
3.7.1 Replacing the Fixed/Guide Castors
Replacing the Fixed/Guide Castors
Parts, Equipment and Tools
Removal
► Move the changeover table out of the machine.
► Place the changeover table down on its side, on a suitable surface.
► Undo the screws fastening the fixed or guide castor to to replaced and then remove the castor.
Installation
► Follow the removal instructions in reverse order for installation.
NOTICE
SX and DX table
Unless specified otherwise, all specifications apply to both the SX and DX tables.

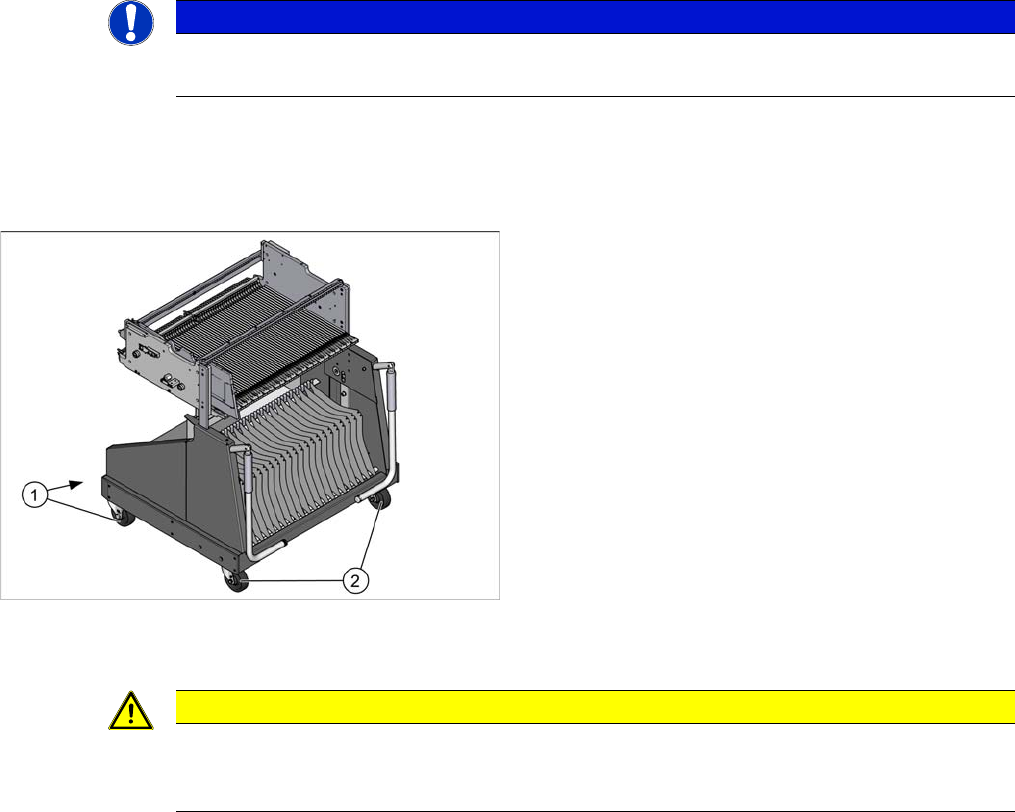

1. Fixed castor [03058705-xx]
2. Guide castor [03059198-xx]
CAUTION
Heavy machine part!
The changeover table must be placed on one side in order to remove the fixed/guide castors.
The changeover table is extremely heavy! You will need 2 people to perform this task
Service Work Conveyor
Component Trolley SX 3.7.2 Replacing the Insert Feeder [03002898-xx]
186 Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02
3.7.2
3.7.2 Replacing the Insert Feeder [03002898-xx]
Replacing the Insert Feeder [03002898-xx]
Parts, equipment and tools
Select the right insert feeder:
Removal
► Move the component trolley out of the machine.
► Loosen the screw fastening the guide profile and remove the guide profile.
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following instruc-
tions:

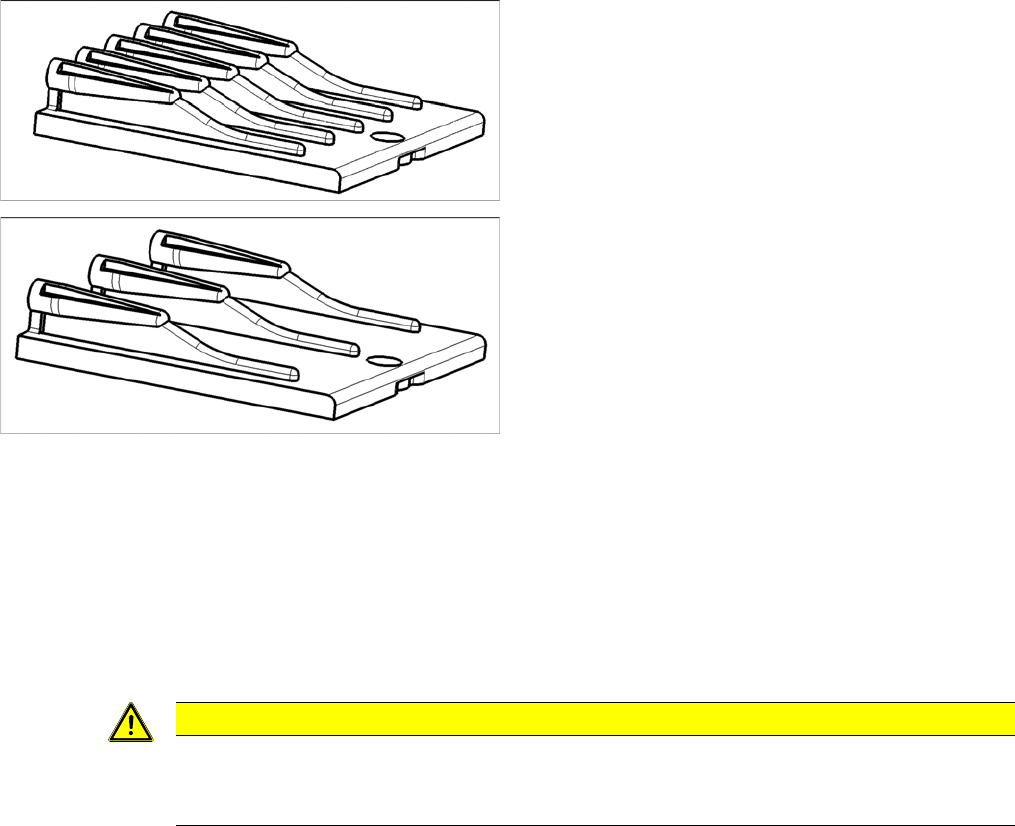

Insert feeder [03002898-xx]
Suitable for:
▪ X-Series component trolley
▪ Component trolley SX1/SX2 (30 or 60 tracks)
▪ Manual table X-Series S
Insert feeder [03085635-xx]
Suitable for:
▪ Manual table DX series
CAUTION
Installation instructions
► Make sure that the insert is aligned properly with the guidance behind it. You must be able
to push feeder modules into the feeder location without edge interference.
Service Work Conveyor
3.7.3 Replacing the Tension Spring [03010352-xx] Component Trolley SX
Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 187
3.7.3
3.7.3 Replacing the Tension Spring [03010352-xx]
Replacing the Tension Spring [03010352-xx]
Parts, Equipment and Tools
▪ Tension spring d=0.63* D=5.6* Lo=23.3 [03010352-xx]
Overview
Removal
► Move the component trolley out of the machine.
► Unhook the tension spring.
Installation
► Follow the removal instructions in reverse order for installation.

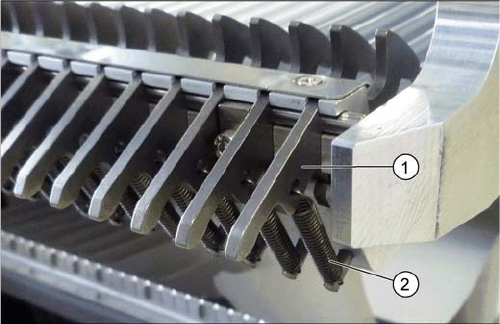

1. Locking latch
2. Tension spring
