Service Work Conveyor Manual table 3.9.9 Replacing the Used Tape Chute 204 Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 Installation ► Follow the removal in structions in reverse order for installati o n. Also observe the…
Service Work Conveyor
3.9.9 Replacing the Used Tape Chute Manual table
Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 203
► Further removal and installation of the feeder lock is the same as that for the front section of the man-
ual table. For more information about this, read section "3.9.3 Removing the Front Section of the
Manual Table" [ ➙ 194].
Installation
► Follow the removal instructions in reverse order for installation.
See also
3.9.2 Removing the Back Section of the Manual Table [ ➙ 193]
3.9.9
3.9.9 Replacing the Used Tape Chute
Replacing the Used Tape Chute
Parts, Equipment and Tools
Select the correct spare part:
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthorized
reactivation. Observe the instructions in section "1.2 Preparatory Work..." [ ➙ 13].
Component Supply - Manual Tables - Dismantling Protections - Color Version
► Loosen the two screws fastening the used tape chute fixtures. There are one screw on the left and
one on the right of the used tape chute.
► Remove the screws fastening the used tape chute.
► Take the used tape chute down and out of the machine.
Machine type Designation Item No.
DX1/DX2 Used tape chute 60 tracks 03064026-xx
Used tape chute 30 tracks 03073312-xx
If required, secure used tape chute DX1/DX2 left 03094519-xx
If required, secure used tape chute DX1/DX2 right 03094522-xx
Manual tables only:
► Dismantle the protections:
– Protection waste chute DX1/2 left [03094519-xx]
– Protection waste chute DX1/2 right [03094522-
xx]
CAUTION
Risk of cutting
The cutter is located under the tape channel. The blades there have very sharp edges.
► Do not reach into the cutter and make sure that it is never freely accessible for longer peri-
ods or without supervision.
Service Work Conveyor
Manual table 3.9.9 Replacing the Used Tape Chute
204 Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following instruc-
tions:
Compone nt Supply - Manual Tables - Fitting Pr otections - Color Version
Manual tables only:
WARNING!
There is a risk of injury on manual tables without the two
protections.
► Fit the two protections:
– Protection waste chute DX1/2 left [03094519-xx]
– Protection waste chute DX1/2 right [03094522-
xx]
Service Work Conveyor
3.9.10 Replacing the Insert Feeder [03002898-xx] Manual table
Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 205
3.9.10
3.9.10 Replacing the Insert Feeder [03002898-xx]
Replacing the Insert Feeder [03002898-xx]
Parts, equipment and tools
Select the right insert feeder:
Removal
► Move the component trolley out of the machine.
► Loosen the screw fastening the guide profile and remove the guide profile.
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following instruc-
tions:

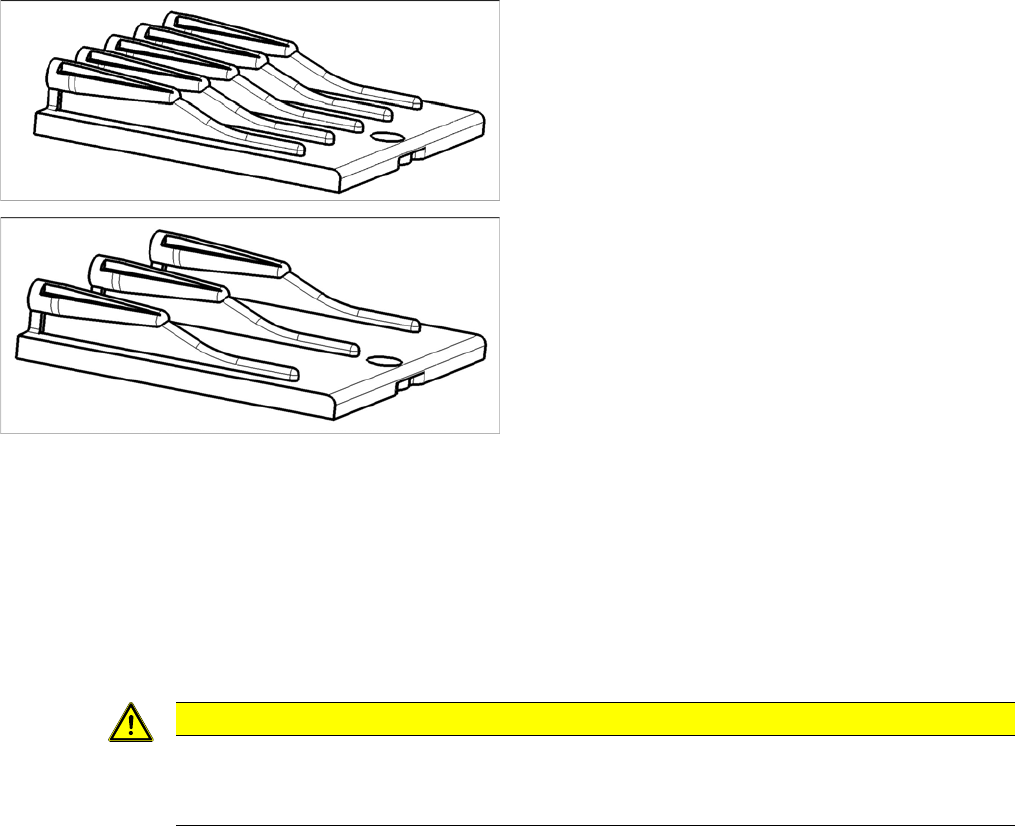

Insert feeder [03002898-xx]
Suitable for:
▪ X-Series component trolley
▪ Component trolley SX1/SX2 (30 or 60 tracks)
▪ Manual table X-Series S
Insert feeder [03085635-xx]
Suitable for:
▪ Manual table DX series
CAUTION
Installation instructions
► Make sure that the insert is aligned properly with the guidance behind it. You must be able
to push feeder modules into the feeder location without edge interference.
