Service Work Conveyor 3.11.3 Replacing the Articulated Joint on the Short-Stroke Cyli nder [03058685-xx] Cutter Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 231 Installation ► Follow the removal in structions in reverse o…
Service Work Conveyor
Cutter 3.11.3 Replacing the Articulated Joint on the Short-Stroke Cylinder [03058685-xx]
230 Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02
► Unplug the electrical connections (2) from the
valves (1).
► Unplug the pneumatic hoses (3) from the valves.
Mark their positions, to make clear assignment easier
later on.
► Remove the two fastening screws on the terminal
strip.
The terminal strip is now only connected to the cables.
► Swing the top cover (3) forwards.
► Loosen the circlip (1).
► Push the piston rod a little into the short-stroke cylin-
der and rotate the articulated joint by 90 degrees.
► Push the bolt (2) out of the articulated joint.
► Unscrew the remaining articulated joint adapter (3)
from the piston (4).
Service Work Conveyor
3.11.3 Replacing the Articulated Joint on the Short-Stroke Cylinder [03058685-xx] Cutter
Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 231
Installation
► Follow the removal instructions in reverse order for further installation. Also observe the following
instructions:
► Screw the articulated joint (1) into the short-stroke
cylinder with a torque of 22 Nm. Make sure that the
joint is horizontal so that it fits into the recess (2) in the
moveable blade. Secure the screw with Loctite 243.
► Screw the articulated joint to the moveable blades.
Tighten the screws to a torque of 8.8 Ncm.
CAUTION
Installation instructions
► Secure with screws with Loctite.
► Insert the new screw caps. Remove the protruding plastic residues with a knife.
► Hook the waste tape chute into place. Please also observe section "3.10.10 Replacing the
Waste Tape Chute" [ ➙ 221]. Pay particular attention to the plastic strips and the fuses (if
present).
Service Work Conveyor
Cutter 3.11.4 Replacing the Short-Stroke Cylinder [03058693-xx]
232 Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02
3.11.4
3.11.4 Replacing the Short-Stroke Cylinder [03058693-xx]
Replacing the Short-Stroke Cylinder [03058693-xx]
Parts, Equipment and Tools
▪ Dia 63 mmx40 SMC cylinder (short-stroke cylinder) [03058693-xx]
Overview
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthorized
reactivation. Observe the instructions in section "1.2 Preparatory Work..." [ ➙ 13].
► Remove the cutter from the machine (see "3.11.1 Replacing the Cutter [03063781Sxx]" [ ➙ 223]).
► Remove the articulated joint from the short-stroke cylinder (see "3.11.3 Replacing the Articulated
Joint on the Short-Stroke Cylinder [03058685-xx]" [ ➙ 228]). The joint can be removed after you
have removed the short-stroke cylinder.

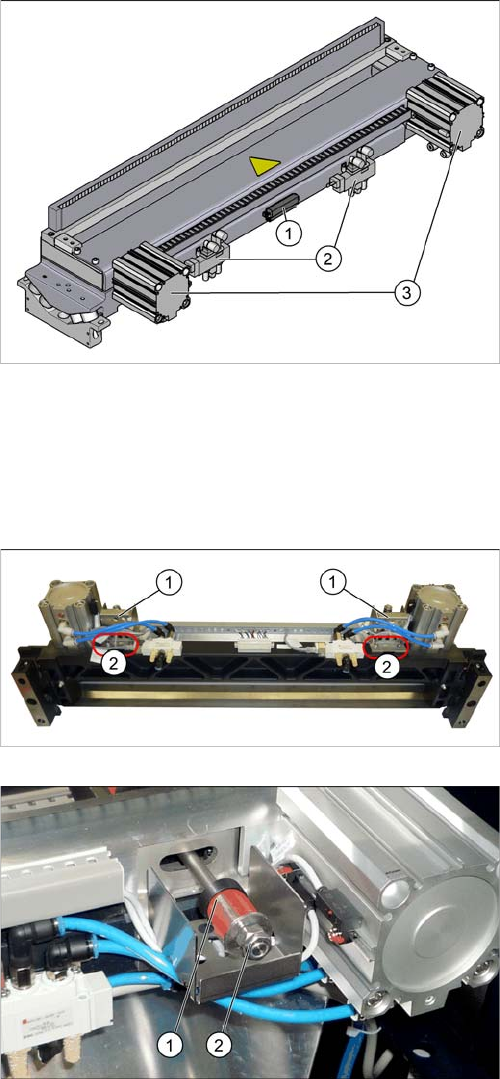

1. Connection for control system
2. Solenoid valves
3. Short-stroke cylinder
► Open the cable ties at the bottom of the protective
plates (1).
► Undo the screws (2) fastening the protective plates
and then remove the protective plates.
► Remove the locked screws (2) on the left and right of
the return rods.
► Remove the elastomeric springs (1).
