Service Work Conveyor 3.11.6 Replacing the Elastomeric Spring (Blade Damping) Cutter Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 243 ► Never apply Loctite 243 to the thread of the return rod. ► Screw th e narrow n ut ont…
Service Work Conveyor
Cutter 3.11.6 Replacing the Elastomeric Spring (Blade Damping)
242 Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthorized
reactivation. Observe the instructions in section "1.2 Preparatory Work..." [ ➙ 13].
► Unhook the waste tape chute.
Installation
► Clean the return rod to remove any residue varnish. Make sure you do not wipe away the markings.
► Check whether the marking is still vertical.
If it is not, adjust it accordingly. (See "3.11.5 Replacing the Cutter Blades" [ ➙ 234])
► Press against the two return rods until the movable and the fixed blade overlap.
► Fit the plastic stopper [03096297-xx], the elastomeric spring [03096352-xx] and the washer in this
order onto the return rod.
► Apply Loctite 243 to the return rod.
► Screw the wide nut onto the return rod.

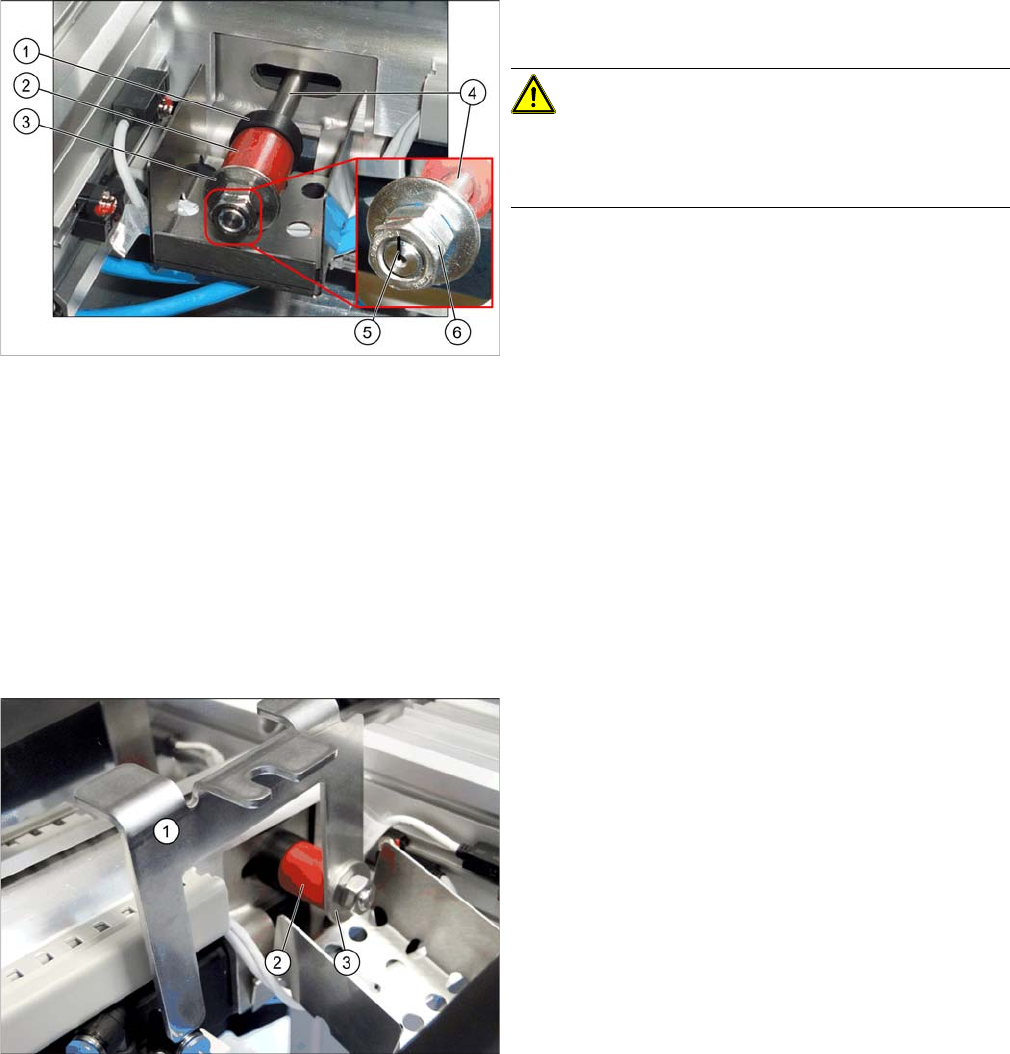

► Use a pen to mark the return rod (4) with a vertical
mark (5).
CAUTION!
The retaining rods may not be distorted. Use the marking
on them to guide you.
Make sure you do not wipe away the markings.
► Loosen the screws (6) fastening the return rod. Make
sure that you do not rotate the return rod out of posi-
tion.
► Remove the washer (3), the elastomeric spring (2)
and the plastic stopper (1)from the return rod.
► Insert the setting gauge (1) as shown in the diagram,
between the washer (3) and the elastomeric
spring (2). The setting gauge is used to set a defined
overlap of the blades during cutting.
Service Work Conveyor
3.11.6 Replacing the Elastomeric Spring (Blade Damping) Cutter
Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 243
► Never apply Loctite 243 to the thread of the return rod.
► Screw the narrow nut onto the return rod and lock both nuts. Make sure that you do not rotate the
return rod out of position.
► Remove the setting gauge.
► Check the marking on the return rod again to make sure that it is still vertical. Adjust it if necessary.
► Follow the removal instructions in reverse order for further installation.
See also
3.11.1 Replacing the Cutter [03063781Sxx] [ ➙ 223]
► Place a switched-on flashlight (1) into the empty tape
duct.
CAUTION!
Make sure that the duct coating is not damaged!
► Tighten the wide nut until the buffer can no longer be
turned. You must be able to see an evenly narrow
band of light (2) along the entire length of the blade.
Service Work Conveyor
Cutter 3.11.7 Connector Assignment on the Cutter
244 Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02
3.11.7
3.11.7 Connector Assignment on the Cutter
Connector Assignment on the Cutter
