Settings
Settings on the Basic Machine 4.2.1 Setting the Machine Covers
252 Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02
4.2.1.5
4.2.1.5 Setting the Cover Switch Centering Device
Setting the Cover Switch Centering Device
4.2.1.6
4.2.1.6 Setting the Actuator
Setting the Actuator

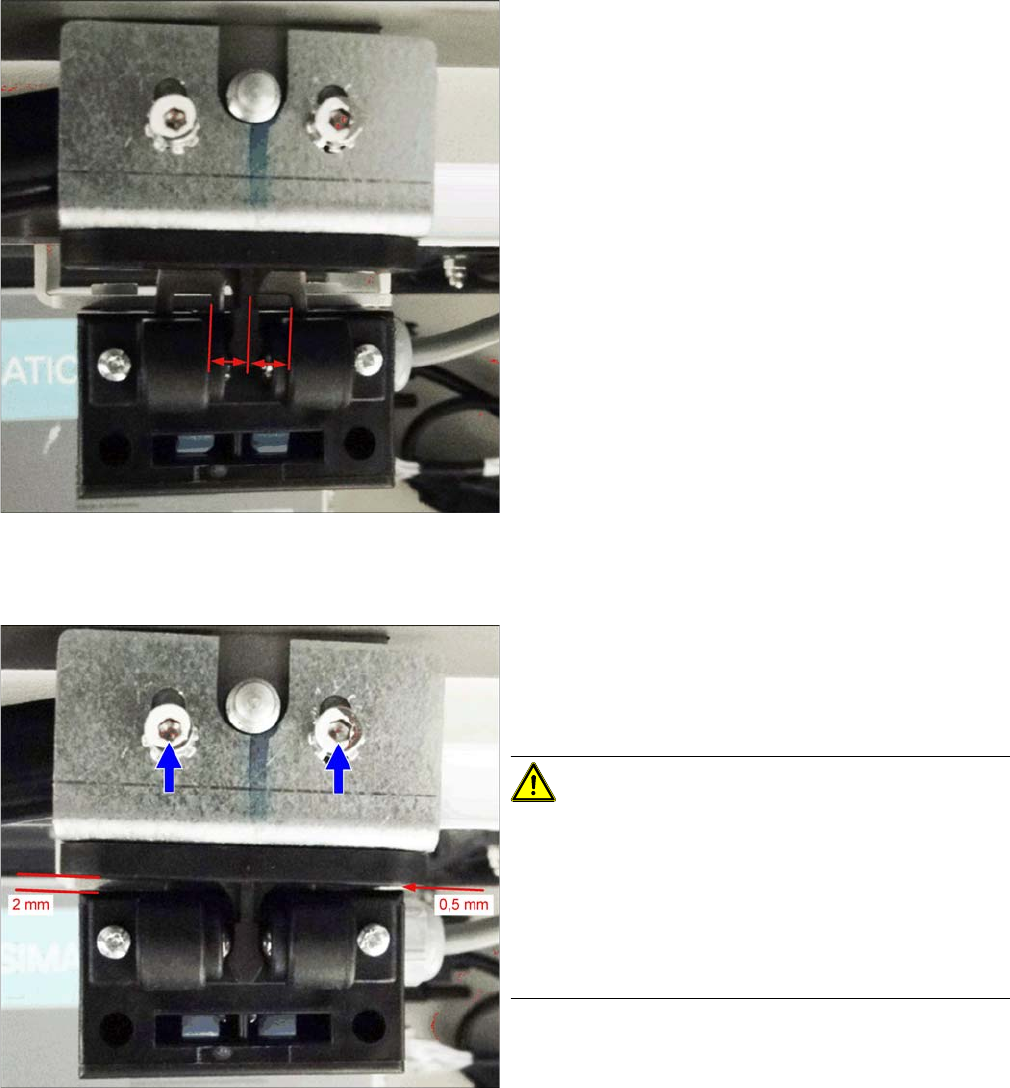

Cover switch (using example of SX2)
Close the cover a little more until the plastic centering
device for the actuator is against the cover switch
centering device. These two must be centered to-
wards one another.
Tighten the screws for the cover switch centering de-
vice.
Setting (example of SX2 shown)
Actuating bracket B1-2053 for AZ15/16 [00321649-xx]
Close the cover completely.
Set the actuator so that it stands approx. 2 mm above
the machine center and tighten the screws.
CAUTION!
The cover switch is not suitable as a stop.
The cover switch is not a stop or a support for the ma-
chine cover. Use the bottom stops of the rollers for this
(see next section).
Neither the cover nor the actuator may be supported on
the cover switch. There must be a visible gap between
the actuator and the cover switch.
Settings
4.2.1 Setting the Machine Covers Settings on the Basic Machine
Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 253
4.2.1.7
4.2.1.7 Setting the Bottom Stop
Setting the Bottom Stop
Check the settings by opening and carefully closing the cover several times:
The metal bracket is parallel to the opening and does not scrape against the switch
The plastic centering feature is positioned centrally to the centering device and does not scrape
against the switch.
When the cover is opened, there is no discernable resistance of the cover rollers in the guidance
rails.
Shortly before the bottom cover position, there is no resistance audible apart from the centering en-
gaging and the engaging of the metal bracket in the cover switch.
The cover can be closed completely, so that the swing cover closes smoothly at the top with the side
covers.
NOTICE
Observing the Technical Information
Also observe the Technical Information "New stopper on folding covers for SIPLACE SX1
/ DX1" [DE: TI2014-04D05] [EN: TI2014-04E05].

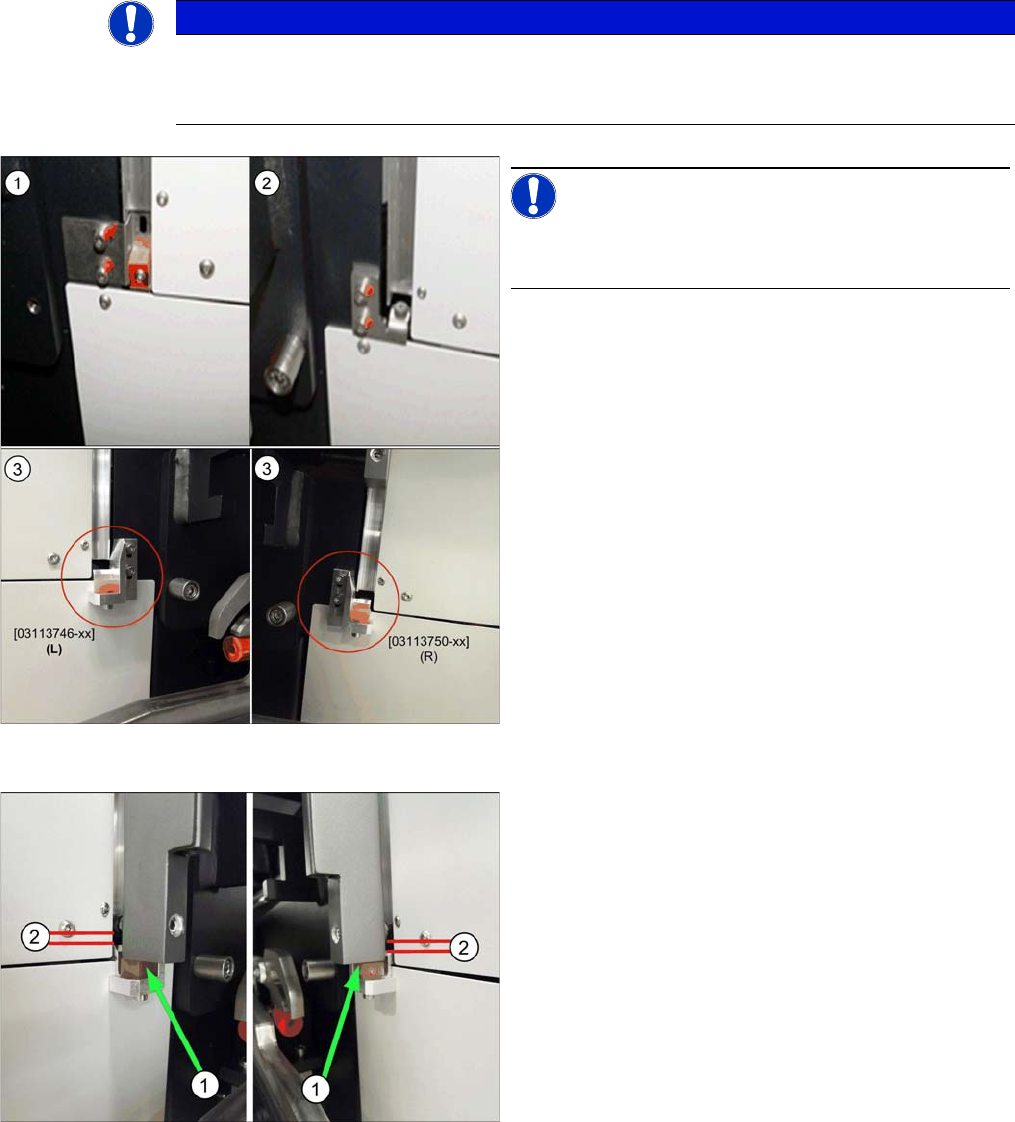

Bottom stop (example of SX2 shown )
NOTICE!
There are three variants of the bottom stop.
We recommend a conversion to variant 3.
1. Variant 1 (SX1/SX2) (old):
2x buffer cover guidance [03075364-xx]
1x DIN EN ISO7380-M3 x 25-A2-70 [03045198-xx]
1x DIN985 - M3 - A2-70 [00328897-xx]
2. Variant 2 (SX1/SX2, X-Series S) (old):
Right stop [03086295-02]
Left stop [03086313-02]
Buffer with studs, type no. 1284 [03072728-01]
3. Variant 3 (new)
Right stop cpl. [03113750-xx]
Left stop cpl. [03113746-xx]
Setting the stop for variant 3:
Set the stop in such a way that the cover lies on the
buffer (1). When closing the cover, make sure that
the cover lies on the buffer first.
The cover roller (2) must still be in the guide and must
not lie on the stop.
Settings
Settings on the Basic Machine 4.2.1 Setting the Machine Covers
254 Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02
4.2.1.8
4.2.1.8 Setting the Cover Rollers
Setting the Cover Rollers
Cover rollers (example of SX2 shown)
Set the cover roller by using the grub screw, so that it is inserted by at least 75% into the guidance,
along its whole length. Lock the roller with a setscrew DIN915-M8x16 [00304354-xx] or DIN-EN-
ISO4026-M8x16-A2-21H [03025582-xx].
Place shims between the roller and cover for greater stability.
NOTICE
Missing O-rings
Replace the following missing O-rings on the roller: O-ring 8.5x1.6 [03078577-xx]
NOTICE
Maintenance
There are O-rings on the roller. These need to be checked every 6 months and replaced when
necessary. If the roller or bottom stop is already damaged, this will also need to be replaced.
