Overview of the Modules
C&P20, C&P20 A and C&P20 M 2.6.1 Differentiation of the C&P20 Head Variants
28 Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02
2.6.1
2.6.1 Differentiation of the C&P20 Head Variants
Differentiation of the C&P20 Head Variants
Differenc es between CP 20/A/M
The C&P20A differs from the C&P20 in the following issues:
▪ New E/D transformer
▪ Improved linear guide rails at the segments
▪ Driver bearing
▪ Modified Z-axis (also used in C&P20 later on)
▪ Hoses
▪ FHE components
The C&P20M differs from the C&P20A in the following issue:
▪ Incremental encoder of the star motor
NOTICE
C&P20, C&P20A, C&P20M
The instructions apply in principle to all C&P20, C&P20A and C&P20M heads.
Any differences will be explicitly indicated.
► The different heads can be recognized according to the labeled stickers.
Overview of the Modules
2.6.1 Differentiation of the C&P20 Head Variants Twin and Twin HF
Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 29
2.7
2.7 Twin and Twin HF
Twin and Twin HF
2.8
2.8 DLM
DLM
Twin
The TwinHead consists of two Pick&Place modules.
1. Module 1
2. Module 2, rotated by 180° compared to module 1.
3. Main board on relevant module
4. D axis
5. Linear motor Z axis
6. Z axis incremental measurement system
7. Camera lens hood Twin
X-Series S, SX4/DX4, X-Series, HF: [03001846-xx]
SX1/SX2/DX1/DX2 [03079524-xx]
1. Intermediate distributor, digital (under the cover)
2. Star motor
3. Z axis motor
4. Stepping motor
5. Component camera
Overview of the Modules
Nozzle Changers 2.9.1 Nozzle Changer C&P20 P (Short)
30 Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02
2.9
2.9 Nozzle Changers
Nozzle Changers
2.9.1
2.9.1 Nozzle Changer C&P20 P (Short)
Nozzle Changer C&P20 P (Short)
2.9.2
2.9.2 Nozzle Changer C&P20 P (Long)
Nozzle Changer C&P20 P (Long)
2.9.3
2.9.3 Nozzle Changer C&P20/C&P20 M
Nozzle Changer C&P20/C&P20 M

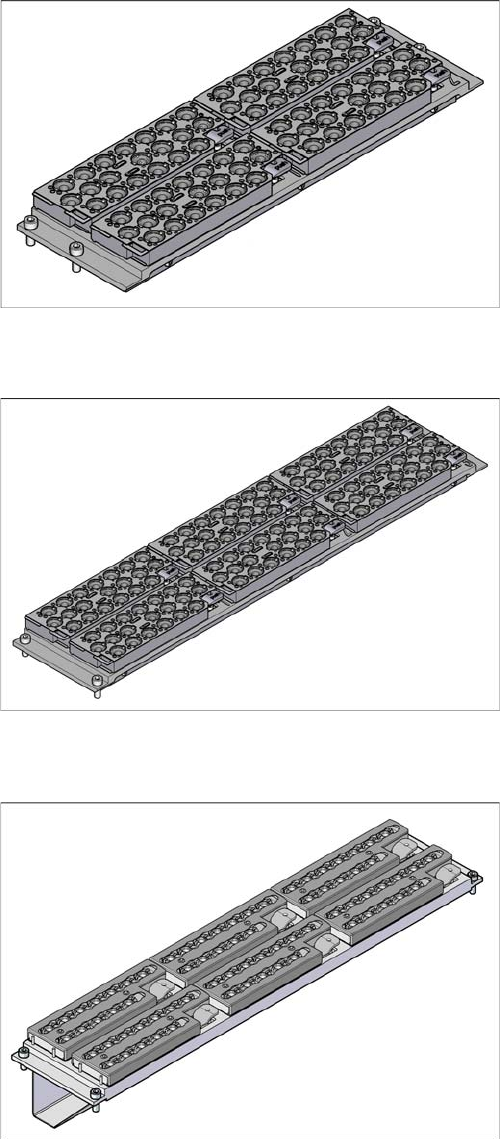

Nozzle changer C&P20 P (short) [03103649-xx] with four
magazines [03101503-xx]
Nozzle changer C&P20 P (long) [03103514-xx] with six
magazines [03101503-xx]
Nozzle changer C&P20 [03070123-xx] / C&P20 M
[03103514-xx] with 6 magazines [00119715-xx]
