Description of the Circuit Boards Electrics and Control 5.1.2 GCU/MGCU 302 Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 5.1.2.2 5 . 1 . 2 . 2 D ia g n o s is in t e r f a c e [ 0 3 0 7 5 8 1 3 - x x ] Diagnosis interface …
Description of the Circuit Boards
5.1.2 GCU/MGCU Electrics and Control
Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 301
5.1.2
5.1.2 GCU/MGCU
GCU/MGCU
5.1.2.1

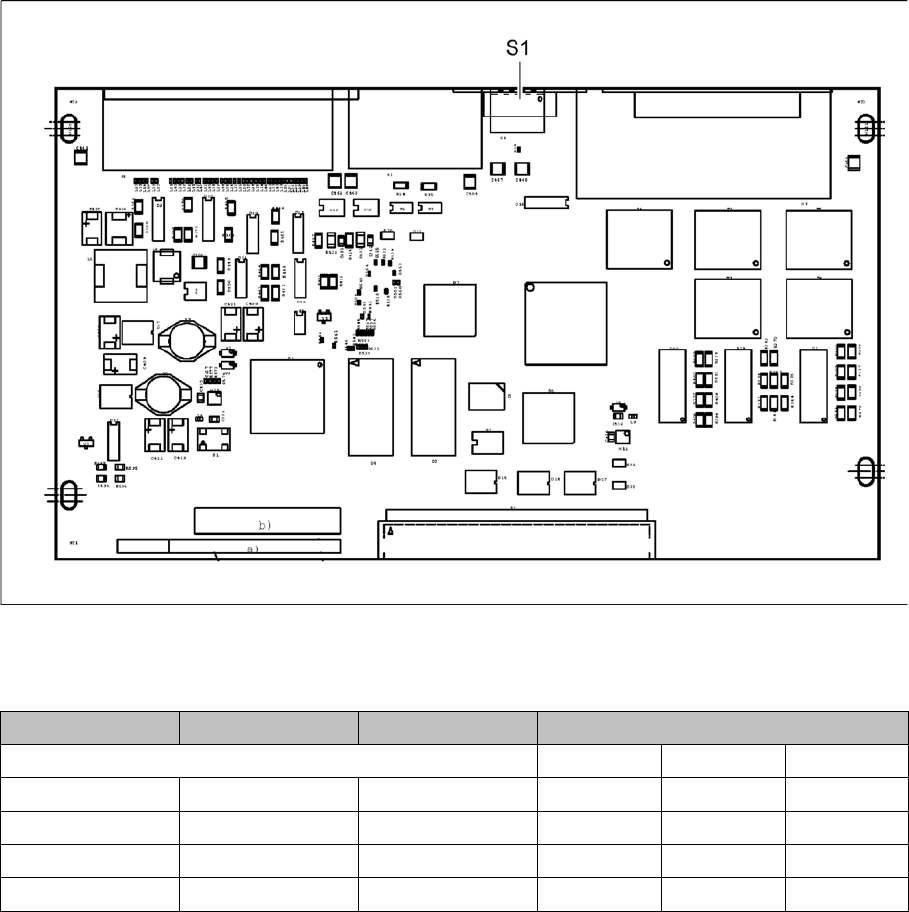

5.1.2.1 Control module GCU-CM [03060951-xx]
Control module GCU-CM [03060951-xx]
03060951-03
This board is fitted in the GCU.
Dip switch S1 [03060951-03]
Switch Status Signal name Description
GCU1 GCU2 GCU3
S1.1 ON/OFF Portal_ID_0 ON OFF OFF
S1.2 ON/OFF Gantry_ID_1 OFF OFF ON
S1.3 ON/OFF Portal_ID_2 ON OFF ON
S1.4 ON/OFF Portal_ID_3 OFF OFF OFF
Description of the Circuit Boards
Electrics and Control 5.1.2 GCU/MGCU
302 Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02
5.1.2.2

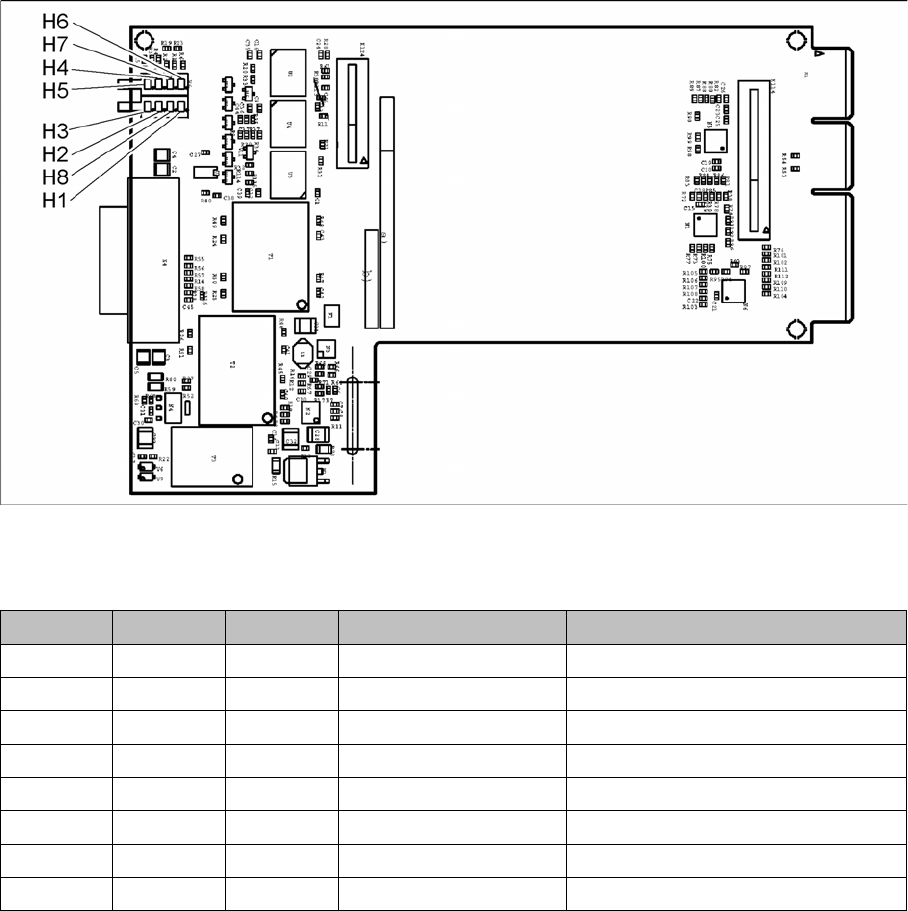

5.1.2.2 Diagnosis interface [03075813-xx]
Diagnosis interface [03075813-xx]
03075813-01
This board is fitted in the GCU.
LED [03075813-01]
LED Color Status Signal name Description
H1 RD ON LED_ERROR Error display
H2 GN ON A1_LED_PM_ON_N Power module activated, axis 1
H3 GN ON A2_LED_PM_ON_N Power module activated, axis 2
H4 GN ON A1_LED_END End position signal, axis 1
H5 GN ON A2_LED_END End position signal, axis 2
H6 GN ON LED_READY Ready
H7 GN ON P24V +24VDC
H8 GN ON P5V +5VDC
Description of the Circuit Boards
5.1.3 I/O control unit [03116049-xx] Electrics and Control
Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 303
5.1.3

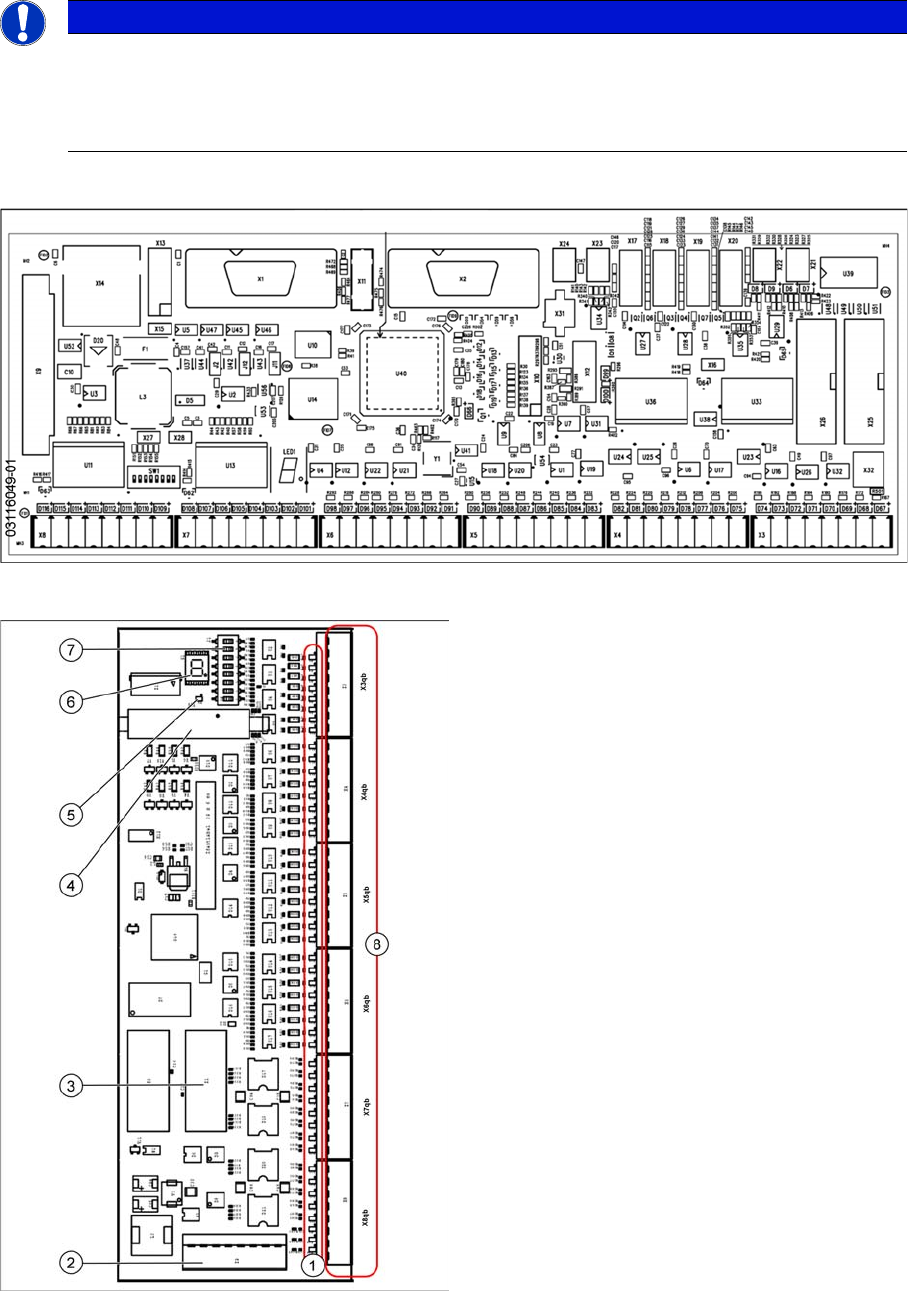

5.1.3 I/O control unit [03116049-xx]
I/O control unit [03116049-xx]
Overview
03116049-01
NOTICE
Downwards compatibility
The I/O control unit II [03116049-xx] is downwards compatible with I/O control unit [03052315-
xx].
All connections and designations are identical.
Overview of I/O control unit [03052315-xx]
1. Status LEDs
2. X9qb: Power supply
3. X1qb: CAN bus 1
4. X10qb: Connection of other I/O modules possi-
ble
5. Red LED
This signals a RESET.
6. H1: 7 segment display
(flashing = O.K.)
7. DIP switch S1
8. Outputs X3qb to X8qb
