Overview of the Modules Component Trolley SX1/SX2 2.9.4 Nozzle Changer TwinStar 32 Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 2.12 2 . 1 2 C o m p o n e n t T r o lle y S X 1 / S X 2 Component Trolley SX1/SX2 2.13 2 . 1…
Overview of the Modules
2.9.4 Nozzle Changer TwinStar COT Insert for SX1/SX2
Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 31
2.9.4
2.9.4 Nozzle Changer TwinStar
Nozzle Changer TwinStar
2.10
2.10 COT Insert for SX1/SX2
COT Insert for SX1/SX2
2.11
2.11 Cutter
Cutter
Nozzle changer TwinStar with 1 [03001807-xx] and 2
magazines [03005191-xx]
1. Assembly positions for the nozzle changers
2. Safety switch for the component trolley
3. Empty tape duct
4. Feeder control unit (FCU)
1. Connection for control system
2. Pneumatic cylinder
Overview of the Modules
Component Trolley SX1/SX2 2.9.4 Nozzle Changer TwinStar
32 Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02
2.12

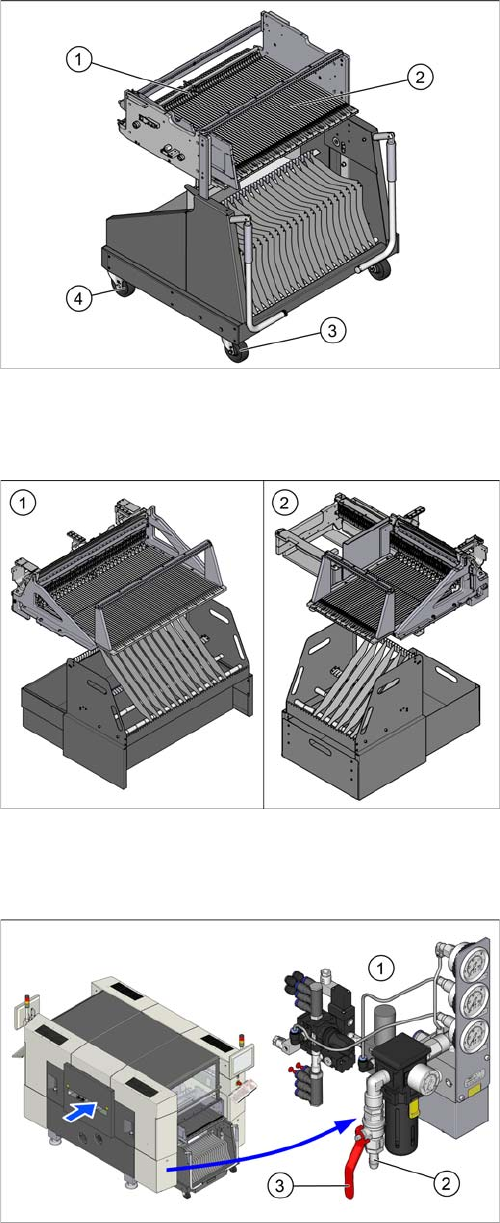

2.12 Component Trolley SX1/SX2
Component Trolley SX1/SX2
2.13
2.13 DX1/DX2 Manual Table
DX1/DX2 Manual Table
2.14
2.14 Pneumatic Unit
Pneumatic Unit
1. Locking strip
2. Guide profile (omega profile) for accommodating the
feeder
3. Guide castor
4. Fixed castor
1. Manual table with 60 tracks
2. Manual table with 30 tracks
The pneumatic unit is located in sector 1 and is protected
by a lockable door.
1. Pneumatic unit
2. Compressed air connection coupling
3. Shutoff valve
Service Work Conveyor
3.1.1 Replacing the Gas Pressure Shock Absorber on the Cover [03086743-xx] Basic Machine
Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 33
3
3 Service Work Conveyor
Service Work Conveyor
DANGER - Non-observance causes danger to persons and machine!
See also
1.1 Safety Instructions [ ➙ 9]
3.1
3.1 Basic Machine
Basic Machine
3.1.1
3.1.1 Replacing the Gas Pressure Shock Absorber on the Cover [03086743-xx]
Replacing the Gas Pressure Shock Absorber on the Cover [03086743-xx]
Parts, equipment and tools
▪ Gas pressure shock absorber D3D3B90-135-430-004/230N [03086743-xx]
(old: gas pressure shock absorber 08/19 175N [03057763-xx])
▪ Loctite 638 [00317731-xx], if required (for loose screwed fixtures)
Overview
DANGER
Nonobservance of these safety instructions may cause injury to personnel and damage to the
machine!
The service work described in this manual may only be performed by specially trained service
technicians, with appropriate qualifications and expertise.
► Please observe the safety instructions in the User manual for all service work!
NOTICE
Loose screwed fixtures
► Also observe section "3.1.1.1 Troubleshooting – Loose Screwed Fixtures on the Gas Pres-
sure Shock Absorbers" [ ➙ 35].
1. Gas pressure shock absorbers on the covers
(two x per cover)
