Description of the Circuit Boards
COT insert 5.4.3 CAN bus terminator for CO table [03046863-xx]
328 Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02
5.4.3

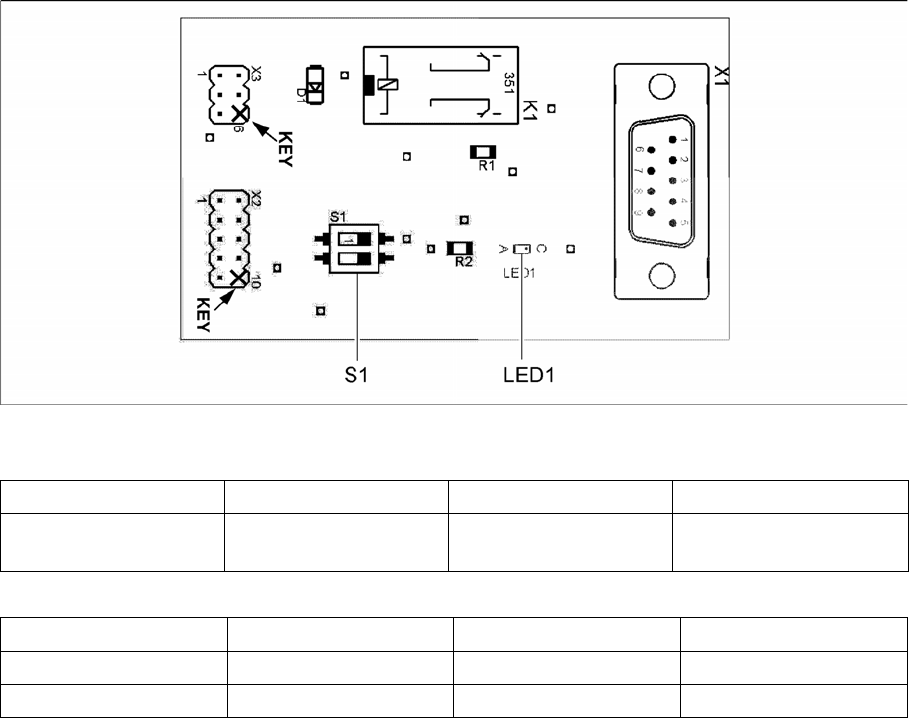

5.4.3 CAN bus terminator for CO table [03046863-xx]
CAN bus terminator for CO table [03046863-xx]
The "CAN bus terminal changeover table" ensures that the CAN bus still works even when a WPC is
fitted. During undocking, a CAN terminating resistor is switched, which maintains the CAN bus function
and communication.
03046863-01
LED [03046863-01]
Switch [03046863-01]
LED Color Status Description
LED1 GN ON 24 VDC on connector
X3:4
Switch Signal name Location 1 (gantry 1) Location 2 (gantry 2)
S1.1 ADR_0 ON ON
S1.2 ADR_1 ON OFF
Description of the Circuit Boards
5.5.1 NC main board CPx [03069324-xx] Nozzle Changers
Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 329
5.5
5.5 Nozzle Changers
Nozzle Changers
5.5.1

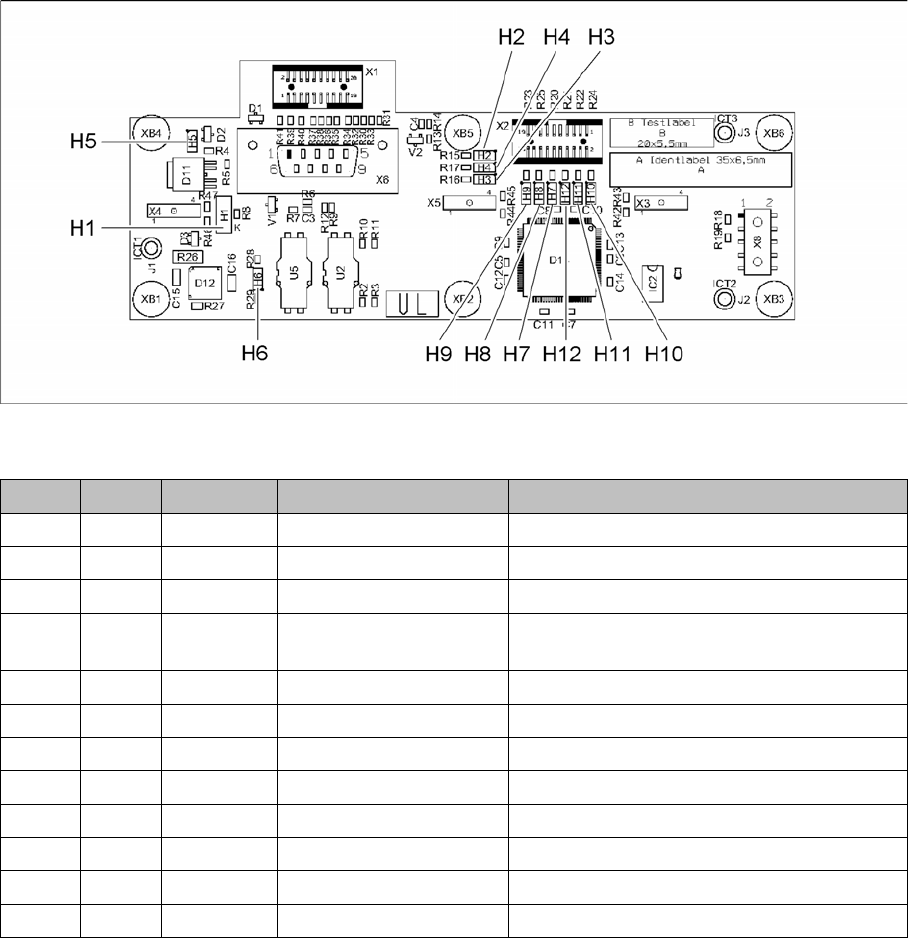

5.5.1 NC main board CPx [03069324-xx]
NC main board CPx [03069324-xx]
03069324-02
LED [03069324-02]
LED Color Status Signal name Description
H1 GN ON LED_Magazines_OK Magazines inserted properly
H2 GN ON LED_LB_OPENED Actuator light barrier "open"
H3 GN ON LED_LB_CLOSED Actuator light barrier "closed"
H4 GN ON LED_FPGA_OK FPGA has been loaded and is ready for op-
eration
H5 GN ON SWITCH_VALVE Valve voltage of +24V present
H6 GN ON P3V3 Logic voltage +3.3V present
H7 RD ON FPGA_TEST_6 Internal FPGA status 1
H8 RD ON FPGA_TEST_2 Internal FPGA status 2
H9 RD ON FPGA_TEST_4 Internal FPGA status 3
H10 RD ON FPGA_TEST_1 Internal FPGA status 4
H11 RD ON FPGA_TEST_3 Internal FPGA status 5
H12 RD ON FPGA_TEST_5 Internal FPGA status 6
Description of the Circuit Boards
Nozzle Changers 5.5.2 Nozzle Changer Main Board C&P20P [03107652-xx]
330 Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02
5.5.2

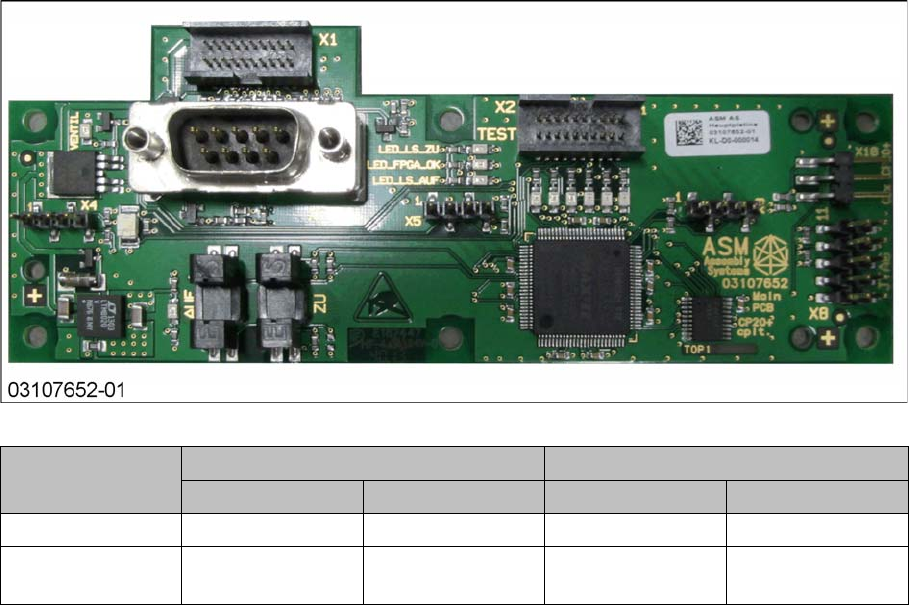

5.5.2 Nozzle Changer Main Board C&P20P [03107652-xx]
Nozzle Changer Main Board C&P20P [03107652-xx]
Nozzle Changer CP20P - Jumper X10
Jumper X10
Head SW <= 706.x SW >= 707.x
I/O controller XFCU I/O controller XFCU
CPx, DLM 1-2 1-2 1-2 2-3
C&P20 P --- --- --- 2-3 (factory set-
tings)
