Service Work Conveyor 3.2.9 Replacing the Load Add Circuit (A6) [03094585- xx] Electric al System Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 47 3.2.9 3 . 2 . 9 R e p la c in g t h e L o a d A d d C ir c u it ( A 6 ) [ 0…
Service Work Conveyor
Electrical System 3.2.8 Replacing the Rectifier Board (A7) [03069283-xx]
46 Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02
3.2.8

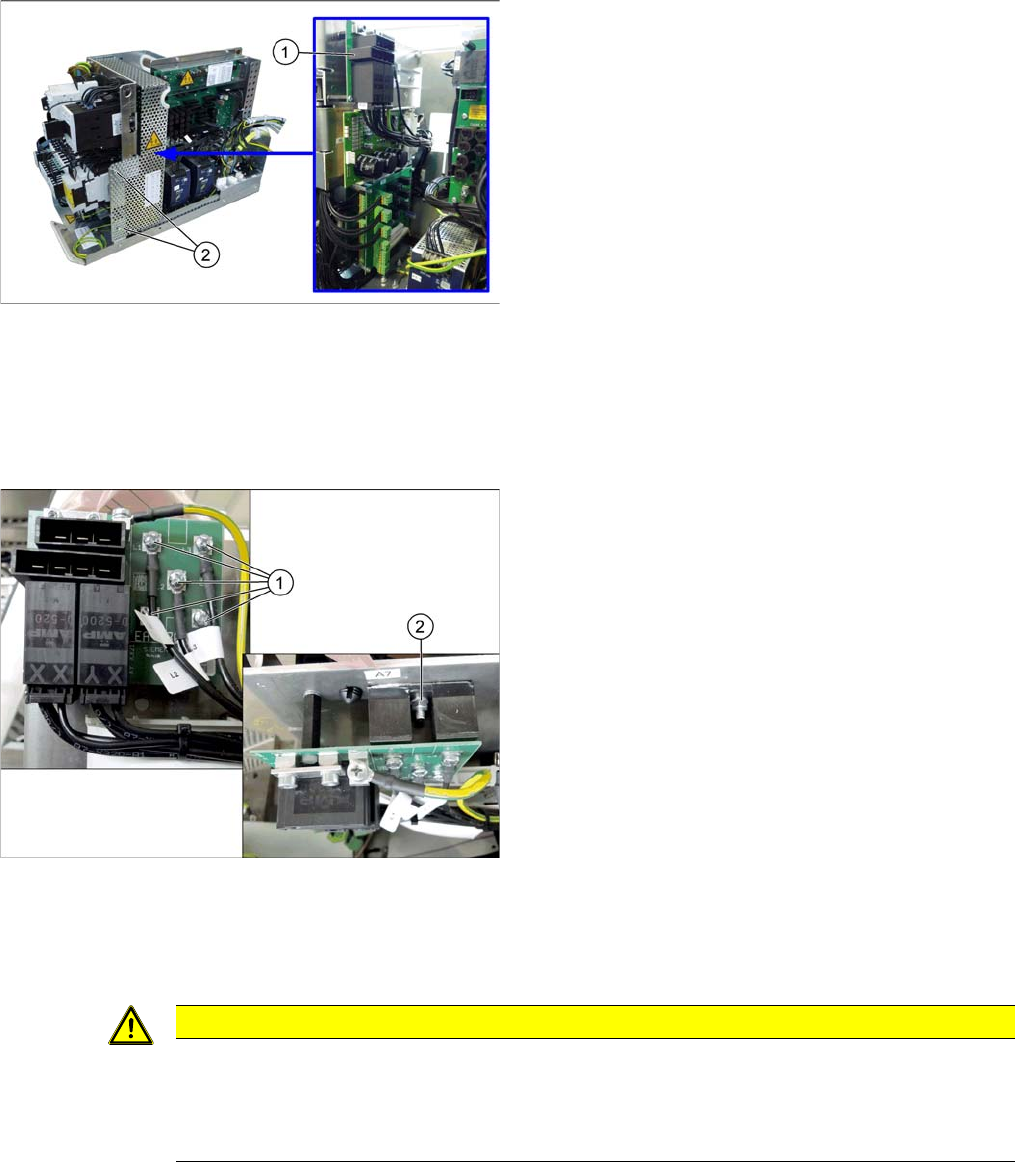

3.2.8 Replacing the Rectifier Board (A7) [03069283-xx]
Replacing the Rectifier Board (A7) [03069283-xx]
Parts, equipment and tools
▪ Rectifier board [03069283-xx]
▪ Heat-conductive paste
Overview
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthorized
reactivation. Observe the instructions in section "1.2 Preparatory Work..." [ ➙ 13].
► Loosen the screws fastening the mesh cover and then remove the cover.
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following instruc-
tions:
1. Rectifier board (A7)
2. Fastening screws of the mesh cover
► Unplug all connections to board A7. You may want to
mark their positions, to make clear assignment easier
later on.
► Loosen the fastening screws on board A7. Now the
board is only connected to the rectifiers.
► The rectifiers are screwed to the cooling surface.
Loosen the fastening screws of the rectifiers (1)
and (2).
► Lift off the board and the rectifiers.
CAUTION
Installation instructions
► Clean the surfaces of the cooling element before reinstallation.
► Apply the heat-conductive paste in a thin layer onto the rectifiers. Take the old board as an
example, if necessary.
Service Work Conveyor
3.2.9 Replacing the Load Add Circuit (A6) [03094585-xx] Electrical System
Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 47
3.2.9

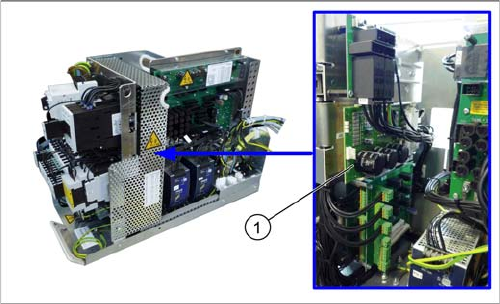

3.2.9 Replacing the Load Add Circuit (A6) [03094585-xx]
Replacing the Load Add Circuit (A6) [03094585-xx]
Parts, Equipment and Tools
▪ PCB dyn. load connection, power circuit [03094585-xx] (replaces: Load add circuit LZS260/1000
[03061114-xx])
Overview
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthorized
reactivation. Observe the instructions in section "1.2 Preparatory Work..." [ ➙ 13].
► Remove the screws fastening the mesh cover and then remove the cover.
► Pull the load add circuit out of its connector.
Installation
► Follow the removal instructions in reverse order for installation.
1. Load add circuit (A6)
Service Work Conveyor
Electrical System 3.2.10 Replacing the AC/DC Converter (PS2) 42 V [03052547-xx]
48 Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02
3.2.10

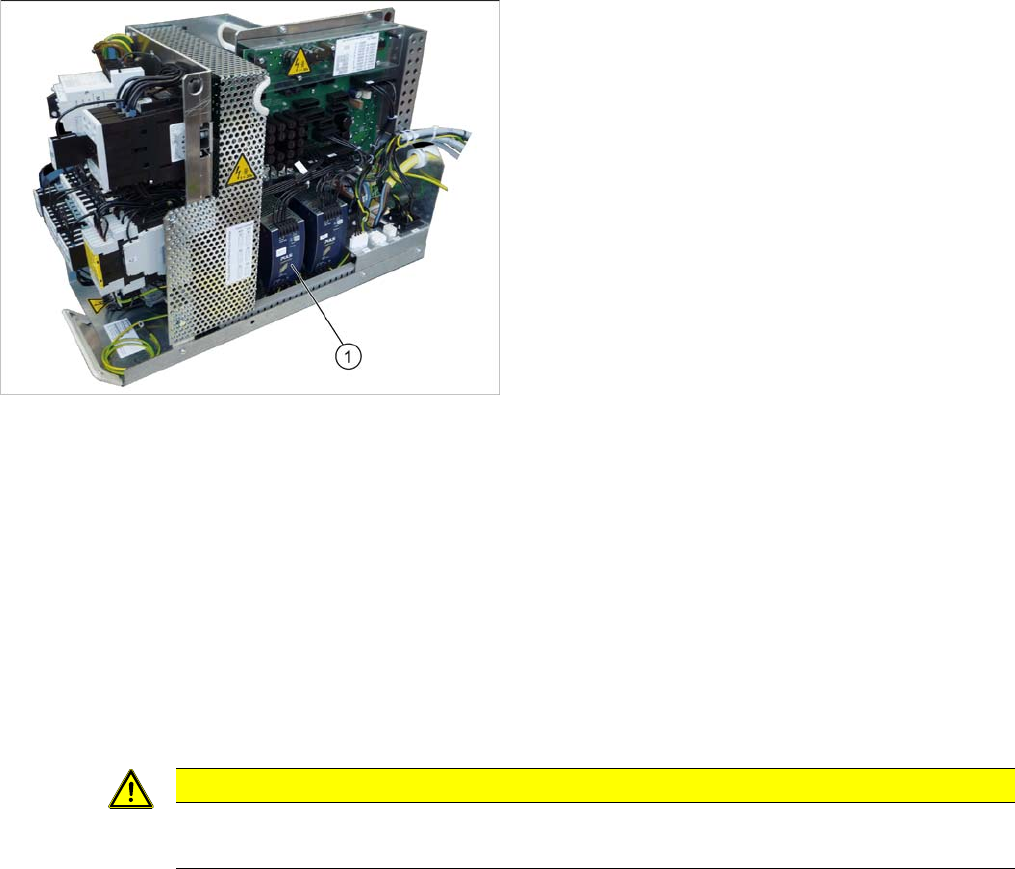

3.2.10 Replacing the AC/DC Converter (PS2) 42V [03052547-xx]
Replacing the AC/DC Converter (PS2) 42 V [03052547-xx]
Parts, equipment and tools
▪ AC/DC converter DC36, set to 42V - 13.3A 3-phase [03076588-xx]
Overview
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthorized
reactivation. Observe the instructions in section "1.2 Preparatory Work..." [ ➙ 13].
► Unplug all connections to the module. You may want to mark their positions, to make clear assign-
ment easier later on.
► To release the module, press the lever at the back of the module down and then pull the module off
the rail.
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following instruc-
tions:
1. AC/DC converter (PS2) – set to 42 V
CAUTION
Installation instructions
► Set the voltage to 42 V. (See "4.3.2 Setting the Voltage on the AC/DC Converters" [➙255])
