Service Work Conveyor 3.2.14 Replacing the Motor Circuit Breaker PKE32/XTU-3 2 [03098183-xx] Electrical System Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 55 3.2.14 3 . 2 . 1 4 R e p la c in g t h e M o t o r C ir c u it…
Service Work Conveyor
Electrical System 3.2.13 Replacing the Motor Protection Release Block (PKZ2)
54 Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02
Installation
Motor protection release block settings
Motor release
block
Yellow setting disk for
overcurent trigger
threshold
Red setting disk for
short-circuit current
trigger threshold
X-Series/SX4/DX4 for 3x208V~ +/-5%
(US version)
ZM-32-PKZ2 24 A 375 A
X-Series/SX4/DX4 for 3x400V~ +/-5% ZM-16-PKZ2 16 A 200 A
SX1/SX2/DX1/DX2 at 3x208V~ +/-5% ZM-16-PKZ2 16 A 130 A
SX1/SX2/DX1/DX2 at 3x400V~ +/-5% ZM-16-PKZ2 10 A 130 A

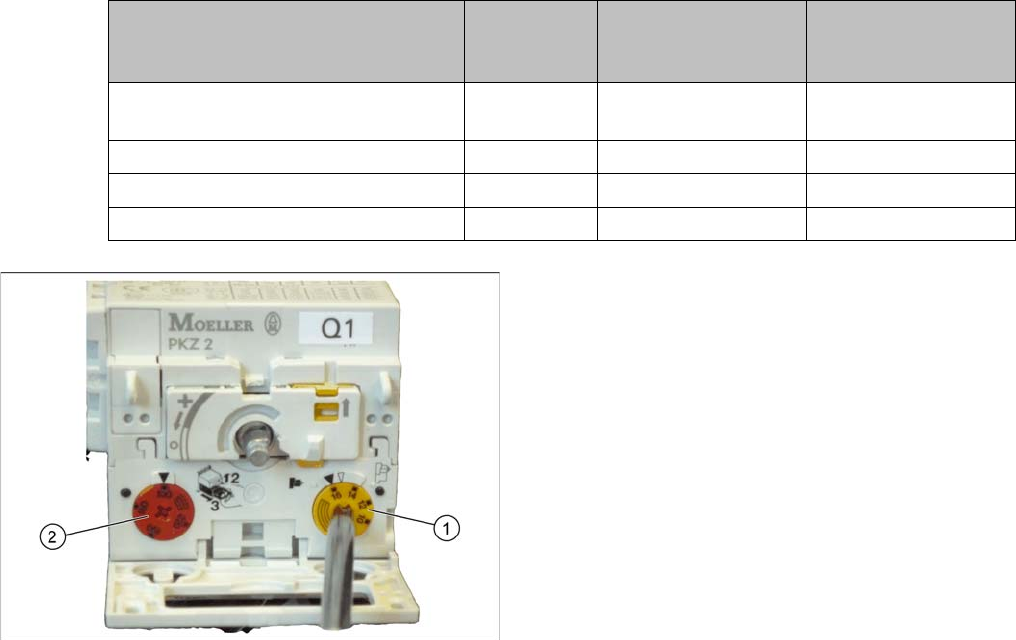

► Check the trigger threshold for overcurrent (yellow
setting disk (1)).
► Check the trigger threshold for short-circuit current
(red setting disk (2)).
► Insert the motor protection release block.
► Push the yellow locking tab downwards.
► Close the gray protective flap.
► Turn the rotary switch clockwise as far as the stop.
Service Work Conveyor
3.2.14 Replacing the Motor Circuit Breaker PKE32/XTU-32 [03098183-xx] Electrical System
Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02 55
3.2.14
3.2.14 Replacing the Motor Circuit Breaker PKE32/XTU-32 [03098183-xx]
Replacing the Motor Circuit Breaker PKE32/XTU-32 [03098183-xx]
Missing Axis Support – TI2013-07D10
Parts, Equipment and Tools
▪ Protective motor switch PKE32/XTU-32 assembly 3p. [03098183-xx]
The protective motor switch is supplied together with the release block.
▪ Technical information "Retrofit Guide Axis Support Motor Circuit Breaker PKE32/XTU-32 Assembly
3p. (Main Switch)" [DE: TI2013-07D10] [EN: TI2013-07E10].
Overview
CAUTION
New version
Do not confuse this version of the protective motor switch with the old one. Pay particular at-
tention to the settings.
NOTICE
Missing axis support
The machine is switched on with the help of an extension axis via the protective motor switch.
When inserting the door coupling handle onto the extension axis of the protective motor switch,
the axis could move into a slanted position. In this case, high traverse forces will be exerted
against the axis coupling of the protective motor switch, which could then break. This would
then make it impossible to switch the machine on or off.
Some machines do not have this additional axis support on the protective motor switch. This
support is used to limit the slant of the extension axis and therefore to reduce the traverse forc-
es against the axis coupling.
► This axis support can be retrofitted. For details, read the Technical Information "Retrofit
Guide Axis Support Motor Circuit Breaker PKE32/XTU-32 Assembly 3p. (Main Switch)"
[DE: TI2013-07D10] [EN: TI2013-07E10].
Protective motor switch and main switch (using example
of US version for the X-Series)
1. Protective motor switch
2. Main switch (US version only)
In non-US versions, the protective motor switch also
serves as the main switch.
Service Work Conveyor
Electrical System 3.2.14 Replacing the Motor Circuit Breaker PKE32/XTU-32 [03098183-xx]
56 Service Manual SIPLACE SX1/SX2/DX1/DX2 FS02
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthorized
reactivation. Observe the instructions in section "1.2 Preparatory Work..." [ ➙ 13].
Checking the Power Supply for Absence of Voltage
► Before you start working, check the power supply for absence of voltage and observe the waiting
times!
Shaft support, fitted (example of SX1)
► Remove the fastening screw (1) on the shaft support.
Shaft support, remove (example of SX1)
► Remove the two shaft support plates (1) from the DIN
rail. The plates are locked in place on the DIN rail with
gray clamping blocks.
Switch bracket
► Loosen the grub screw (2) at the switch bracket (1)
and pull the switch bracket off.
