2 3 XT -Guide / Frame Moving-axis KLC-1304 13 16 4 9 17 10 10 1 1 14 14 16 13 12 15 18 8 1 7 6 20 19 2 2 21 21 5 20 19 1 12 15 18 8 22 23 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KLC-M221 1-S…
1
3

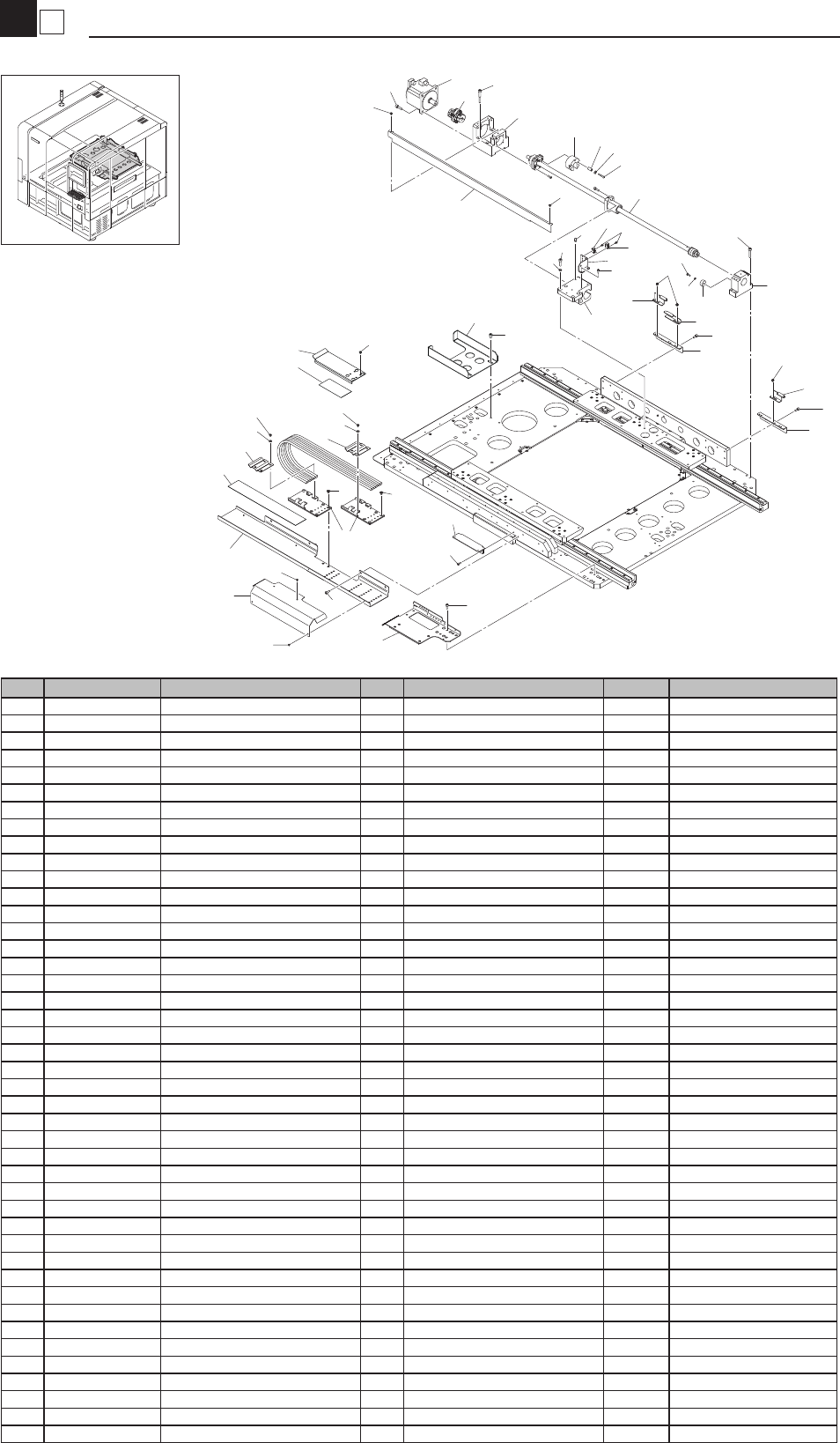

XT-Motor / Sensor
Moving-axis
KLC-1304
28
35
36
15
22
16
30
10
21
18
12
29
10
24
14
13
11
9
9
33
35
33
35
36
7
8
5
23
23
6
27
27
26
3
36
19
28
38
25
20
4
37
26
27
2
14
27
2
1
31
34
34
17
32
39
43
40
41
42
35
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLC-M2223-00 DAMPER 1
2 KLC-M2225-00 BRACKET,DOG 2
3 KLC-M2226-00 BRACKET COVER 1
4 KLC-M2227-00 BRACKET,SENSOR 1
5 KLC-M2228-00 COVER,HNS 1
6 KLC-M2231-00 BRACKET1,DUCT 1
7 KLC-M2232-01 DUCT2,HNS 1
8 KLC-M2233-01 BRACKET1,HNS 2
9 KLC-M2234-01 BRACKET2,HNS 2
10 KLC-M224A-00 HOLDER SET,XT AXIS 1
11 KLC-M2266-00 HOLDER,NUT X AXIS 1
12 KLC-M2271-A0 XT AXIS B.S ASSY 1
13 KLC-M2282-00 DOG.ORIGIN 1
14 KLC-M2283-00 DOG,2ND LIMIT 2
15 KLC-M22C1-00 COVER1,BS 1
16 KGT-M2220-00 COUPLING,X-AXIS 1
17 KHN-M224K-00 COLLAR B 2
18 KHN-M224J-00 COLLAR A 2
19 KHN-M22AD-00 GREASE NIPPLE 1
20 KHN-M22F6-00 WASHER,SWR06 4
21 KHY-M224H-00 DAMPER 1
22 90KA1-201462 AC SERVO MOTOR 1
23 90990-01J039 BOLT, HEX. SOCKET HEAD 4
24 90990-41J138 COLLAR 1
25 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
26 91312-04010 BOLT HEX.SOCKET HEAD 4 M4X10
27 91312-05012 BOLT HEX.SOCKET HEAD 12 M5X12
28 91312-06020 BOLT HEX.SOCKET HEAD 8 M6X20
29 91312-06030 BOLT HEX.SOCKET HEAD 4 M6X30
30 91312-06045 BOLT HEX.SOCKET HEAD 4 M6X45
31 92012-04012 BOLT,BUTTON HEAD 1 M4X12
32 92012-04025 BOLT,BUTTON HEAD 2 M4X25
33 92902-04200 WASHER PLAIN 8
34 97602-04306 SCREW,BIN.HEAD W/W. 6
35 98902-04005 SCREW BINDING HEAD 10
36 98702-06008 SCREW, FLAT HEAD 4
37 KLC-M652C-01 SENSOR XT ORG ASSY 1
38 KLC-M652D-01 SENSOR XT OT ASSY 1
39 KLC-M2238-00 BRACKET,STOPPER 1
40 KLC-M2239-00 TAPE,XT AXIS 1 1
41 KLC-M223A-00 TAPE,XT AXIS 2 1
42 KLC-M225A-00 PLATE,HNS. 1
43 91312-06008 BOLT HEX.SOCKET HEAD 2
2
3
XT-Guide / Frame
Moving-axis
KLC-1304
13
16
4
9
17
10
10
11
14
14
16
13
12
15
18
8
1
7
6
20
19
2
2
21
21
5
20
19
1
12
15
18
8
22
23
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLC-M2211-S0 FRAME,X AXIS 1
2 KLC-M2213-S0 PLATE A,B SET 1
3
4 KLC-M2215-00 PLATE3,JOINT 2
5 KLC-M2216-00 PLATE1,JOINT 1
6 KLC-M2217-00 PLATE2,JOINT 1
7 KLC-M2218-00 PLATE4,JOINT 1
8 KHN-M22F6-00 WASHER,SWR06 18
9 KLC-M2235-01 DUCT A,HNS. 1
10 KLC-M2236-00 STAY,COVER 6
11 KLC-M2237-00 COVER 37 1
12 KLC-M2276-S0 XT AXIS GUIDE SET 1
13 KHN-M22F4-00 WASHER,SWR04 24
14 90990-01J011 BOLT, HEX. SOCKET HE 18
15 91312-04016 BOLT,HEX.SOCKET HEAD 38 M4X16
16 91312-04020 BOLT HEX.SOCKET HEAD 24 M4X20
17 91312-05014 BOLT HEX.SOCKET HEAD 6 M5X14
18 91312-06030 BOLT HEX.SOCKET HEAD 18 M6X30
19 91312-08025 BOLT HEX.SOCKET HEAD 18 M8X25
20 91312-08020 BOLT HEX.SOCKET HEAD 20 M8X20
21 99480-06018 PIN PARALLEL 4
22 KLC-M2291-00 PLATE 91 1
23 KLC-M2292-00 PLATE 92 1
3
3
YT-Motor / Sensor
Moving-axis
KLC-1304
10
5
34
31
25
2
30
12
14
15
26
8
9
25
25
29
16
17
3
1
6
33
18
25
32
13
19
28
4
7
11
20
22
21
23
24
27
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLC-M2611-00 DAMPER 1
2 KLC-M2612-00 BLOCK,STOPPER 2
3 KLC-M2614-00 SPACER 2
4 KLC-M2615-00 BRACKET,STOPPER 1
5 KLC-M2641-00 HOLDER,MOTOR 1
6 KLC-M2642-00 HOLDER,BRG. 1
7 KLC-M2666-00 HOLDER,NUT Y AXIS 1
8 KLC-M2671-A0 YT AXIS B.S.ASSY 1
9 KW6-M711H-00 GREASE NIPPLE 1
10 90KA1-301563 AC SERVO MOTOR 1
11 LC5-M24AE-00 COUPLING 1
12 KV7-M2651-00 DAMPER,STOPPER 2
13 KHN-M22F6-00 WASHER,SWR06 4
14 KHW-M2654-00 PLATE , DAMPER 2
15 KHW-M2656-00 SPACER 4
16 90990-28J113 WASHER,PLAIN 2
17 90990-41J019 COLLAR 2
18 KLC-M26C1-00 BRACKET,COVER 1
19 KLC-M26C2-00 COVER A,YT AXIS 1
20 KLC-M26C3-00 COVER B,YT AXIS 1
21 KLC-M2616-00 STAY,SENSOR 1
22 KLC-M652A-01 SENSOR YT ORG ASSY 1
23 KLC-M652B-01 SENSOR YT OT ASSY 1
24 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
25 91312-04006 BOLT HEX.SOCKET HEAD 10 M4X6
26 91312-04008 BOLT HEX.SOCKET HEAD 4 M4X8
27 91312-04016 BOLT HEX.SOCKET HEAD 3 M4X16
28 91312-05012 BOLT HEX.SOCKET HEAD 4 M5X12
29 91312-05025 BOLT HEX.SOCKET HEAD 2 M5X25
30 91312-05035 BOLT HEX.SOCKET HEAD 4 M5X35
31 91312-06016 BOLT HEX.SOCKET HEAD 4 M6X16
32 91312-06025 BOLT HEX.SOCKET HEAD 4 M6X25
33 91312-06045 BOLT HEX.SOCKET HEAD 4 M6X45
34 91312-06050 BOLT HEX.SOCKET HEAD 4 M6X50
