KLC_YSi-X__pl - 第31页

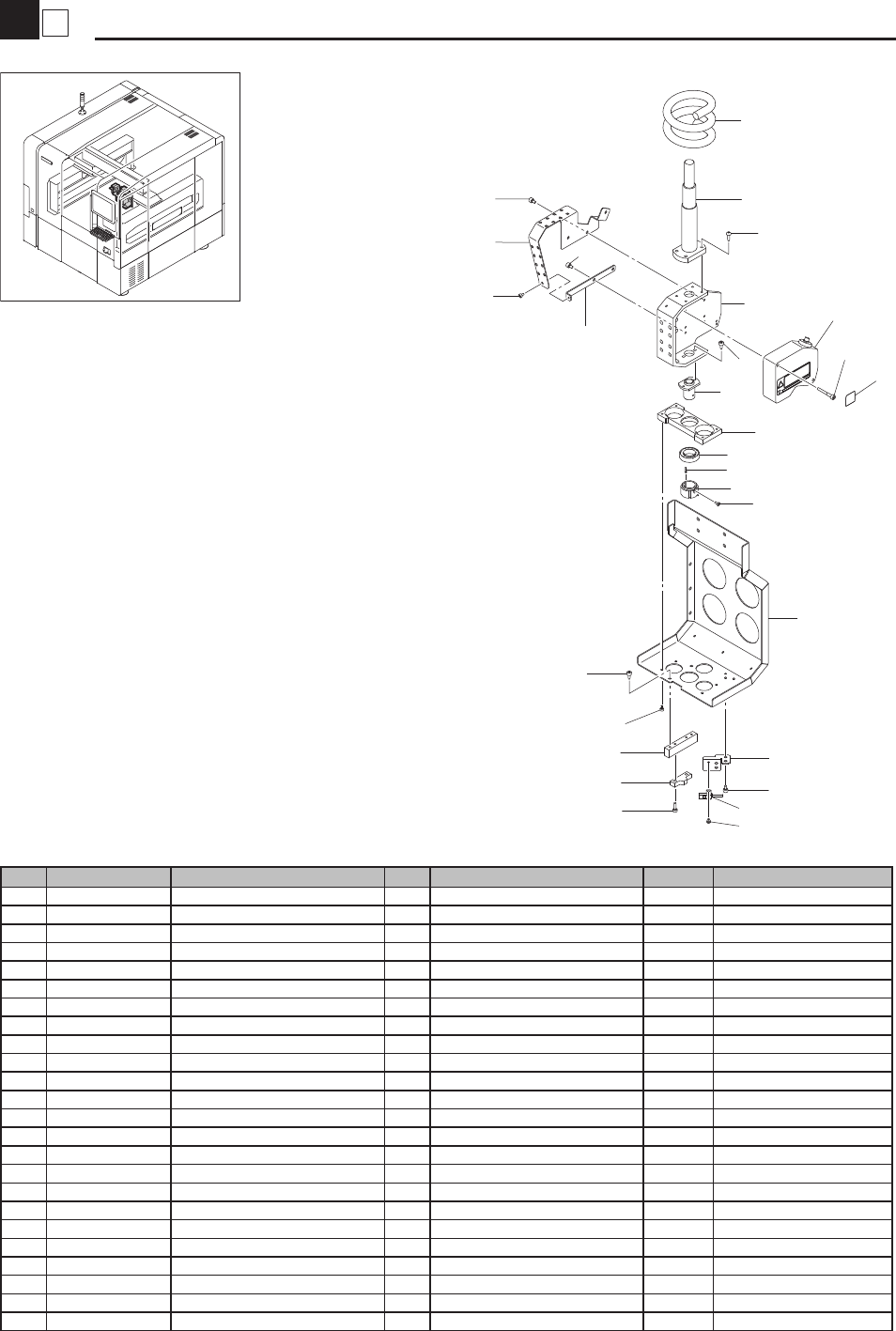

2 6 R-axis Laser Head KLC-1304 30 25 20 32 36 18 31 35 26 34 33 30 33 22 24 3 8 12 7 6 13 28 35 31 14 27 31 31 30 1 27 9 5 23 10 2 28 32 36 35 4 35 16 19 20 32 17 27 27 31 1 1 21 4 30 29 19 16 27 15 37 No. Part No. Part …
1
6
Head Unit
Laser Head
KLC-1304
10
20
11
21
2
1
24
22
6
16
19
18
22
20
4
5
17
20
13
21
12
8
3
7
23
15
9
21
14
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KKH-M5405-00 BRACKET,LASER 1
2 KLC-M5406-00 SHAFT 1
3 KLC-M5416-01 STOPPER PIN 1
4 KLC-M5418-00 PLATE STOPPER 1
5 KLC-M5419-00 STOPPER 1
6 KLC-M5420-01 SHAFT LOWER 1
7 KKH-M5421-00 LOWER BRG.TABLE 1
8 KLC-M5422-00 BRKT.SUPPORT 1
9 KKH-M5423-00 COILING CABLE ASSY 1
10 KLB-M5425-00 BRACKET 2,CABLE 1
11 KKH-M5426-00 BRACKET 3,CABLE 1
12 KLC-M5434-00 BRKT.34 1
13 KLC-M652M-00 SENSOR HL ORG ASSY 1
14 LE1-M50HR-10 HEAD UNIT 1 1
15 90K41-001320 LABEL,CAUTION 1
16 90933-01J902 BEARING 1
17 90990-01J019 BOLT,HEX.SOCKET HEAD 2
18 90990-01J049 BOLT,HEX.SOCKET HEAD 1
19 91B00-02610 KEY, STRAIGHT 1
20 91312-03005 BOLT HEX.SOCKET HEAD 7 M3X5
21 91312-04006 BOLT HEX.SOCKET HEAD 6 M4X6
22 91312-04008 BOLT HEX.SOCKET HEAD 4 M4X8
23 91312-04030 BOLT HEX.SOCKET HEAD 2 M4X30
24 92012-04012 BOLT,BUTTON HEAD 4

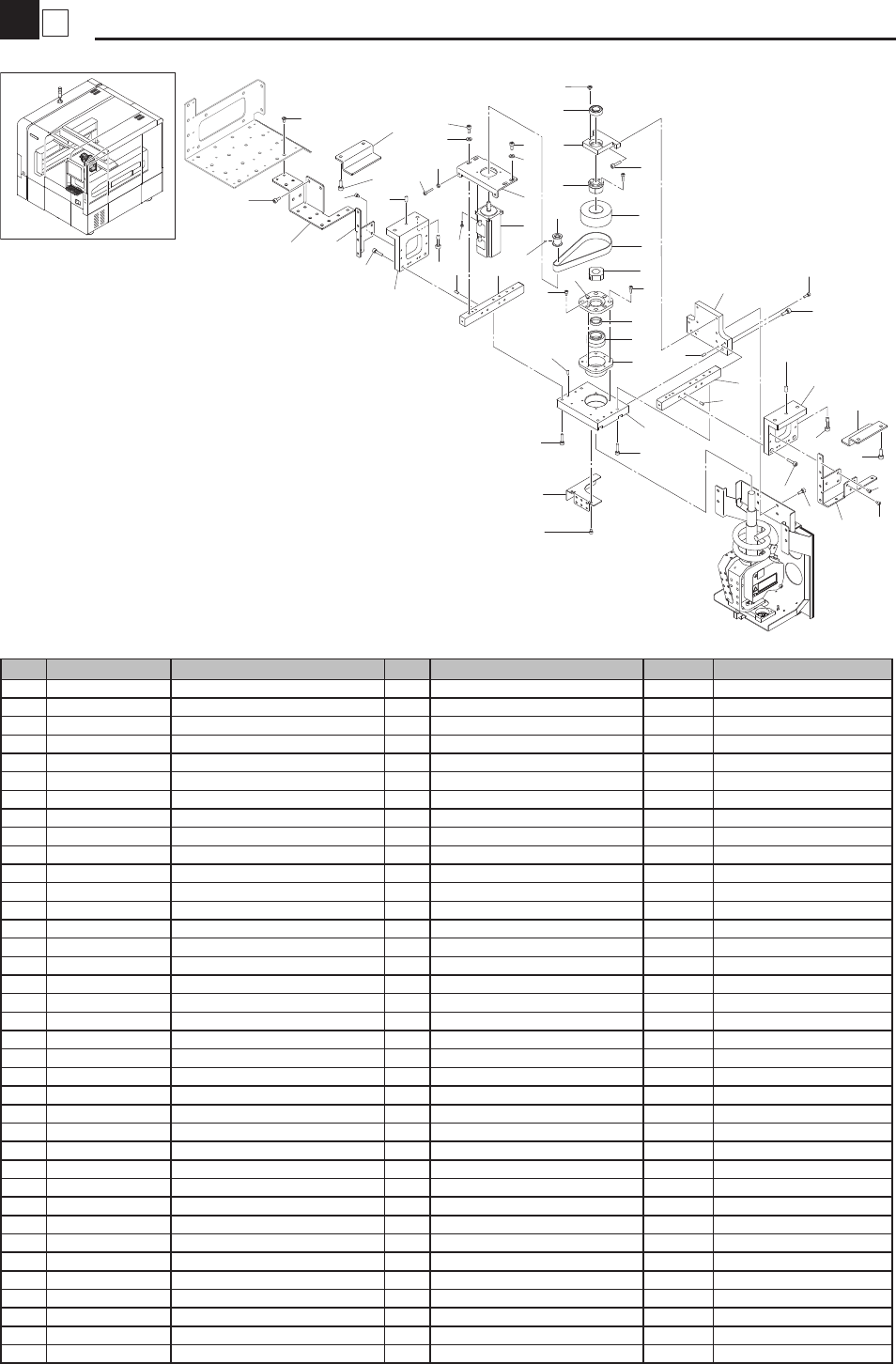

2
6
R-axis
Laser Head
KLC-1304
30
25
20
32
36
18
31
35
26
34
33
30
33
22
24
3
8
12
7
6
13
28
35
31
14
27
31
31
30
1
27
9
5
23
10
2
28
32
36
35
4
35
16
19
20
32
17
27
27
31
11
21
4
30
29
19
16
27
15
37
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLC-M5401-00 BLOCK BEARING 1
2 KLC-M5402-00 PLATE BASE 1
3 KLC-M5403-00 PLATE TOP 1
4 KLC-M5404-00 PLATE SIDE 2
5 KKH-M5407-00 SPACER 1
6 KKH-M5408-00 LOCK NUT 1
7 KKH-M5409-00 PULLEY,SHAFT 1
8 KKH-M5410-00 POWER LOCK 1
9 KKH-M5411-00 COVER,HOUSING BRG. 1
10 KKH-M5412-00 HOUSING,BRG. 1
11 KLC-M5413-00 BRKT.MOTOR 1
12 KKH-M5414-02 PULLEY,MOTOR 1
13 KLC-M5415-00 BELT 1
14 KLC-M5424-00 BRKT.24 1
15 KLC-M5428-00 STAY HNS 1
16 KLC-M5431-00 PLATE 31 2
17 KLC-M5432-00 BRKT.32 1
18 KLC-M5433-00 BRKT.33 1
19 KLC-M5435-00 BOLT 4
20 KLC-M5436-00 BRKT.36 2
21 90K63-201869 HL MOTOR ASSY 1
22 90933-01J902 BEARING 1
23 90990-26J003 BEARING 1
24 90990-46J001 BOLT,THIN HEAD 2
25 90990-46J010 BOLT,THIN HEAD 2
26 91312-03010 BOLT HEX.SOCKET HEAD 4 M3X10
27 91312-04006 BOLT HEX.SOCKET HEAD 12 M4X6
28 91312-04012 BOLT,HEX.SOCKET HEAD 6 M4X12
29 91312-04020 BOLT HEX.SOCKET HEAD 2 M4X20
30 91312-05012 BOLT HEX.SOCKET HEAD 10 M5X12
31 91312-05020 BOLT HEX.SOCKET HEAD 10 M5X20
32 91312-06016 BOLT HEX.SOCKET HEAD 6 M6X16
33 92902-05200 WASHER PLAIN 4
34 95302-04600 NUT HEXAGON 2
35 99480-04010 PIN PARALLEL: 4X10 10
36 99480-06012 PIN,PARALLEL 2
37 90152-03J03 SCREW,SET M3X3 2

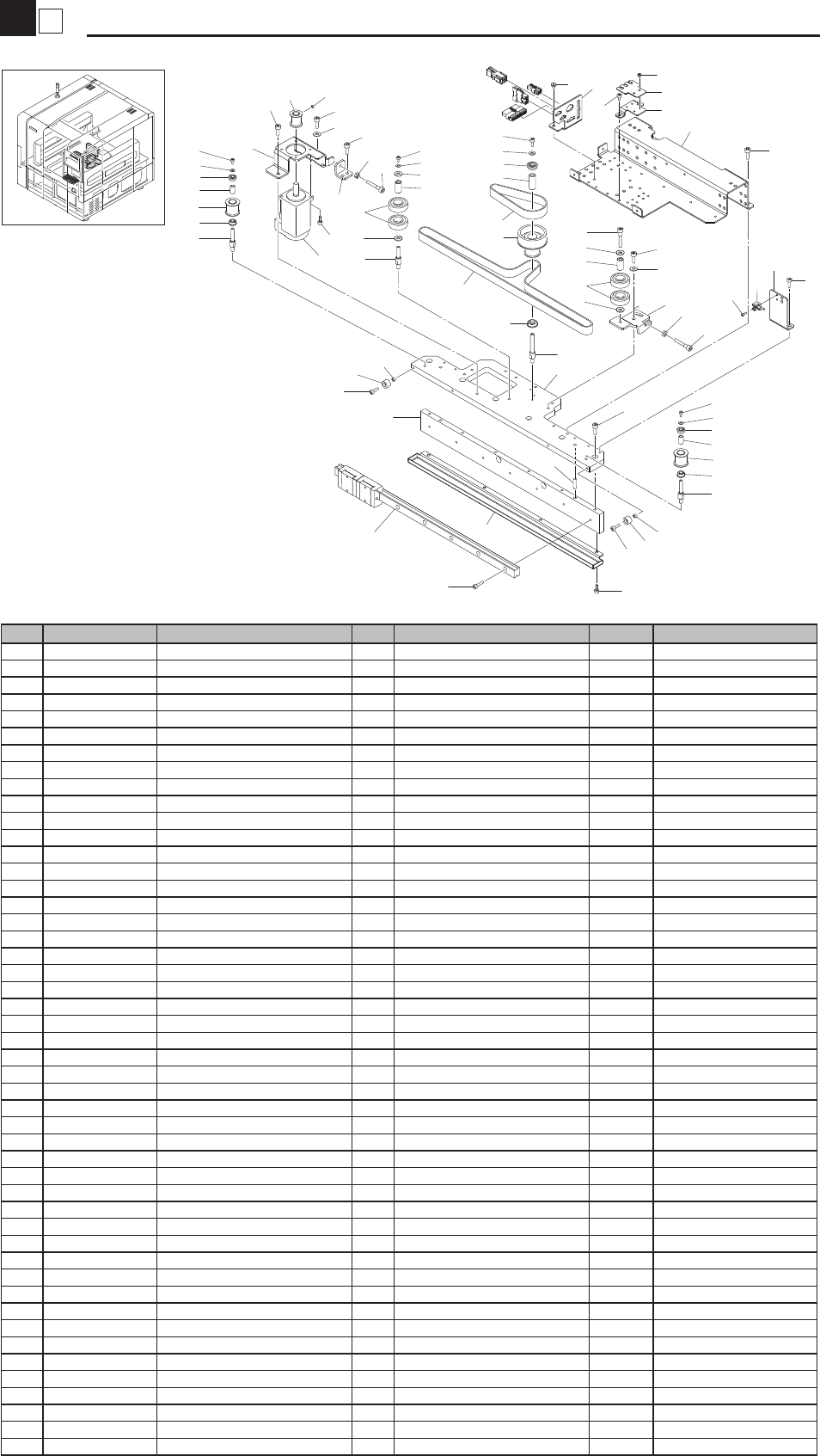

1
7
MS-Drive
Conveyor
KLC-1304
31
38
26
23
22
26
4
31
38
26
23
22
26
4
42
36
36
41
37
31
38
28
30
25
28
24
33
15
21
16
27
29
12
32
46
36
36
40
10
41
37
19
31
36
34
44
33
35
11
2
3
34
17
20
17
20
14
34
37
28
28
30
25
47
13
39
33
27
6
1
5
40
36
8
7
9
45
48
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLC-M9511-00 PLATE, DRIVE 1 1
2 KLC-M9512-00 LM RAIL&BLOCK 15,400 1
3 KLC-M9513-00 PLATE, DRIVE 2 1
4 KLC-M9514-00 SHAFT, PULLEY 1 2
5 KLC-M9515-00 SHAFT, PULLEY 2 1
6 KLC-M9516-00 SHAFT, PULLEY 3 1
7 KLC-M9517-01 BRKT., MOTOR 1
8 KLC-M9518-00 PULLY,MOTOR 1
9 KLC-M9519-00 BRKT., TENSIONER 1
10 KLC-M951A-00 BRKT., TENSIONER 2 1
11 KLC-M951B-01 COVER, GUIDE 1
12 KLC-M951C-01 BRKT., CABLE UPPER 1
13 KLC-M951D-02 BRKT.,HNS. MS 6 1
14 KLC-M951E-01 BRKT.,SENSOR ORG 1
15 KLC-M951F-00 BELT 1 1
16 KLC-M951H-00 BELT 3 1
17 KLC-M951R-00 STOPPER 2
18
19 KLC-M652N-00 SEN.,MS ORG ASSY 1
20 KHW-M2656-00 SPACER 2
21 KB0-M2255-01 PULLEY,5 1
22 KC4-M1751-00 PULLEY,1 2
23 KGX-M1828-00 COLLAR 1 2
24 90KA1-402349 AC SERVO MOTOR 1
25 90933-01J200 BEARING 4
26 90933-03J685 BEARING 4
27 90933-03J696 BEARING 2
28 90990-28J051 WASHER,PLAIN 4
29 90990-41J004 COLLAR 1
30 90990-41J028 COLLAR 2
31 91312-03006 BOLT HEX.SOCKET HEAD 5 M3X6
32 91312-04006 BOLT HEX.SOCKET HEAD 4 M4X6
33 91312-04010 BOLT HEX.SOCKET HEAD 7 M4X10
34 91312-04012 BOLT,HEX.SOCKET HEAD 4 M4X12
35 91312-04016 BOLT,HEX.SOCKET HEAD 7 M4X16
36 91312-05014 BOLT HEX.SOCKET HEAD 17 M5X14
37 91312-05030 BOLT HEX.SOCKET HEAD 3 M5X30
38 92902-03200 WASHER PLAIN 3
39 92902-04200 WASHER PLAIN 1
40 92902-05200 WASHER PLAIN 4
41 95302-05600 NUT HEXAGON 2
42 92A08-04003 SET SCREW M4X3 2
42-1 KLX-M18D4-00 SET SCREW 2 OK MPY0001-2017/12/12
44 99480-05018 PIN,PARALLEL 2
45 KLC-M9535-00 PLATE,HNS. 1
46 KLC-M9536-00 BRKT.,HNS.MS 7 1
47 90990-01J011 BOLT, HEX. SOCKET HE 2
48 98902-03004 SCREW BINDING HEAD 2
