MODEL FP-G10 0R 0801-002 エレベータ部 ELEV A TOR SECTION Fig. ER-6 エレベータ駆動部２ Elevator Driving Section 2 567 566 See Fig. ER-1 Key No.33 572 571 . 559 . 568 566 . 552 . 572 571 . 561 . 570 569 . 555 . 572 571 . 559 . 570 569 . …
MEMO
MODEL FP-G100R
0801-002
エレベータ部
ELEVATOR SECTION
Fig. ER-6
エレベータ駆動部２
Elevator Driving Section 2
567
566
See Fig. ER-1
Key No.33
572
571
.
559
.
568
566
.
552
.
572
571
.
561
.
570
569
.
555
.
572
571
.
559
.
570
569
.
557
.
570
569
.
556
.
570
569
.
554
.
572
571
.
560
.
570
569
.
558
.
572
571
.
559
.
524
553
536
544
573
574
543
514
508
567
566
551
See Fig. ER-1
Key No.34
512
507
559
535
537
511
545
525
513
564
531
538
546
562
563
564
518
563
See Fig. ER-1
Key No.17
502

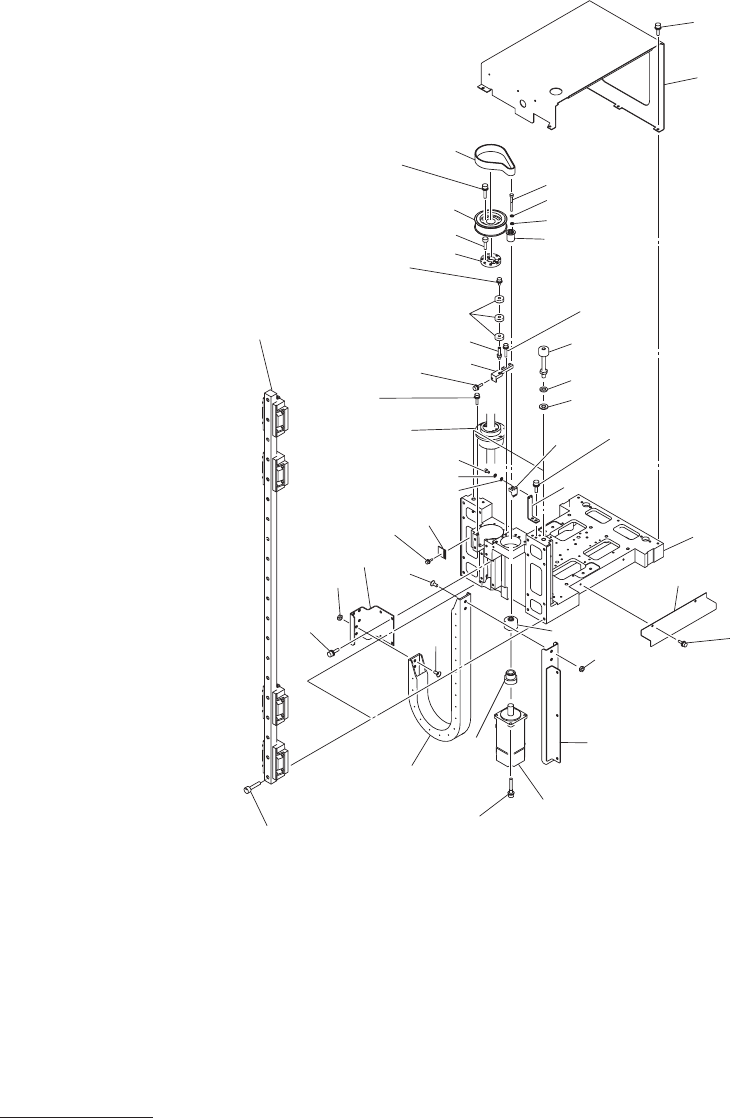

ER-6 illust-1
MODEL FP-G100R
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
ER-6
ER-6 list-1
502 6301310244 BASE 1 806ER-110-002 210A2248
507 6301291550 ROTOR 1 806ER-110-007 213G0200
508 6301281902 BRACKET 1 806ER-110-008 211F8492
511 6301291628 BLOCK 1 806ER-110-011 211G3646
512 6301291635 SHAFT 1 806ER-110-012 213A1090
513 6301281964 SHAFT 1 806ER-110-013 213A1068
514 6301291642 BRACKET 1 806ER-110-014 211F8648
518 6301474878 BRACKET 1 806ER-110-018 211FB070
524 6301620558 COVER 1 806ER-110-324 211AC662
525 6301292267 COVER 1 806ER-110-325 211A8875
531 6301280622 MOTOR,AC-SERVO 1 -M02 806ER-110-201 4M150212
535 6301280660 PULLEY,TIMING 1 806ER-110-205 223Q0575
536 6301280677 PULLEY,TIMING 1 806ER-110-206 223Q0576
537 6301280684 BELT,TIMING 1 806ER-110-207 223L0274
538 6300960808 COUPLING 1 806ER-110-208 223C0165
543 6300690545 SENSOR,PHOTO 1 -B0202 806ER-110-213 23G10056
544 6301282213 BOLT 2 806ER-110-214 221E0305
545 6301129679 BEARING,RADIAL 3 806ER-110-215 222D0380
546 6301501413 MECH PARTS(CABLEVEYOR) 1 806ER-110-216 226J2305
551 6300007503 BOLT,HEX-SCT 2 M3X6 221A0005
552 6300007527 BOLT,HEX-SCT 2 M3X10 221A0007
553 6300007589 BOLT,HEX-SCT 4 M3X30 221A0013
554 6300007619 BOLT,HEX-SCT 1 M4X8 221A0016
555 6300007633 BOLT,HEX-SCT 2 M4X12 221A0018
556 6300007640 BOLT,HEX-SCT 1 M4X14 221A0019
557 6300007657 BOLT,HEX-SCT 6 M4X16 221A0020
558 6300007664 BOLT,HEX-SCT 2 M4X20 221A0021
559 6300007763 BOLT,HEX-SCT 15 M5X16 221A0031
560 6300007770 BOLT,HEX-SCT 4 M5X20 221A0032
561 6300007794 BOLT,HEX-SCT 4 M5X30 221A0034
562 6300007909 BOLT,HEX-SCT 16 M6X25 221A0045
563 4110024307 SCR FLT 5X10 4 M5X10 FLT 221D0226
564 4111410604 NUT HEX 5 4 M5 221F0107
566 4111412806 WASHER SPR 3 8 SW3 221H0281
567 4111415807 WASHER F 3X6X0.5 6 FWS3 221H0338
568 4111413902 WASHER V 3X7X0.5 2 FW3 221H0312
569 4111412905 WASHER SPR 4 12 SW4 221H0284
570 4111414008 WASHER V 4X9X0.8 12 FW4 221H0315
571 4111416705 WASHER SPR 5 19 SW5 221H0287
572 4111414107 WASHER V 5X10X1 19 FW5 221H0318
573 4111413209 WASHER SPR 10 2 SW10 221H0293
574 4111414701 WASHER V 10X21X2 2 FW10 221H0325
