MEMO
MODEL FP-G100R
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
ER-8
ER-8 list-1
702 6301280639 UNIT,DRIVER 3 -A01,-A02,-A03
806ER-110-202 4U240445
711 6301281308 RESISTOR,SPECIA 2 806ER-110-211 4R500009
721 6301287157 BRACKET 1 806ER-110-121 211F8592
722 6301287164 BRACKET 1 806ER-110-122 211F8593
723 6301311074 BRACKET 1 806ER-110-123 211F8923
724 6301287188 BRACKET 1 806ER-110-124 211F8595
730 6301309941 COVER 1 806ER-110-130 211A9121
751 6300007619 BOLT,HEX-SCT 6 M4X8 221A0016
752 6300007732 BOLT,HEX-SCT 10 M5X8 221A0028
753 6300007749 BOLT,HEX-SCT 4 M5X10 221A0029
755 4110436803 SCR PAN 5X12 6 M5X12 PAN 221E0511
756 4111412905 WASHER SPR 4 6 SW4 221H0284
757 4111414008 WASHER V 4X9X0.8 6 FW4 221H0315
758 4111416705 WASHER SPR 5 14 SW5 221H0287
759 4111414107 WASHER V 5X10X1 14 FW5 221H0318
MEMO
MODEL FP-G100R
0801-002
Fig. TR
トラバース部
TRAVERSE SECTION

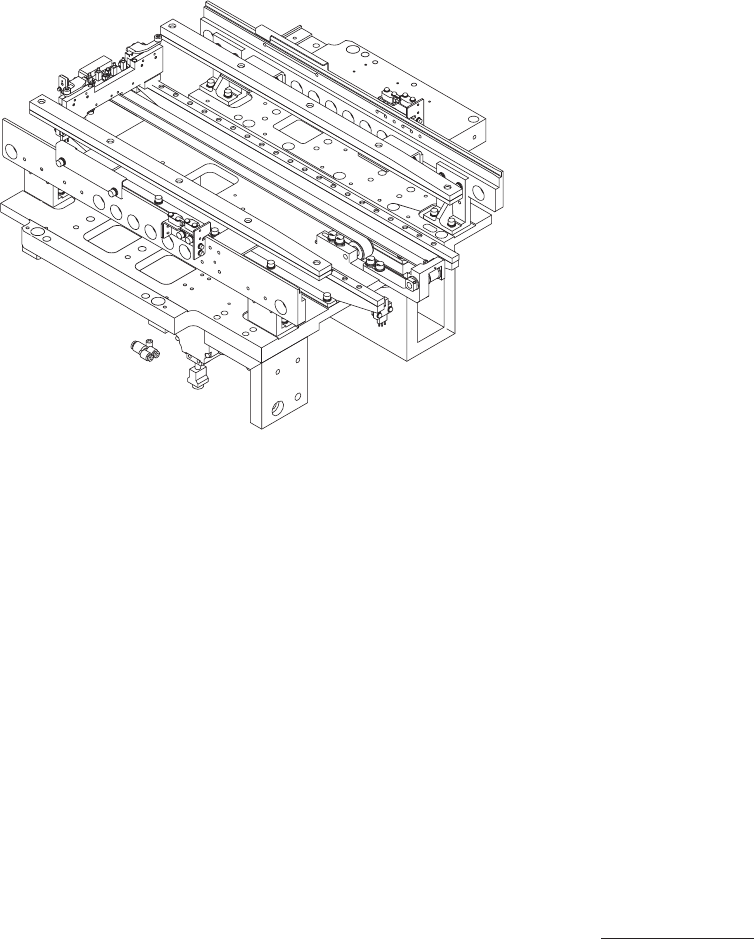

TR illust-1
