MODEL FP-G100L 1004-004 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE 51 6301291079 BASE 1 806TF-1 10-051 210A2225 52 6301309934 COVER 1 806TF-1 10-052 21 1A9120 53 6301284316 BRACKET 1 806TF-1 10-053 21 1F85…

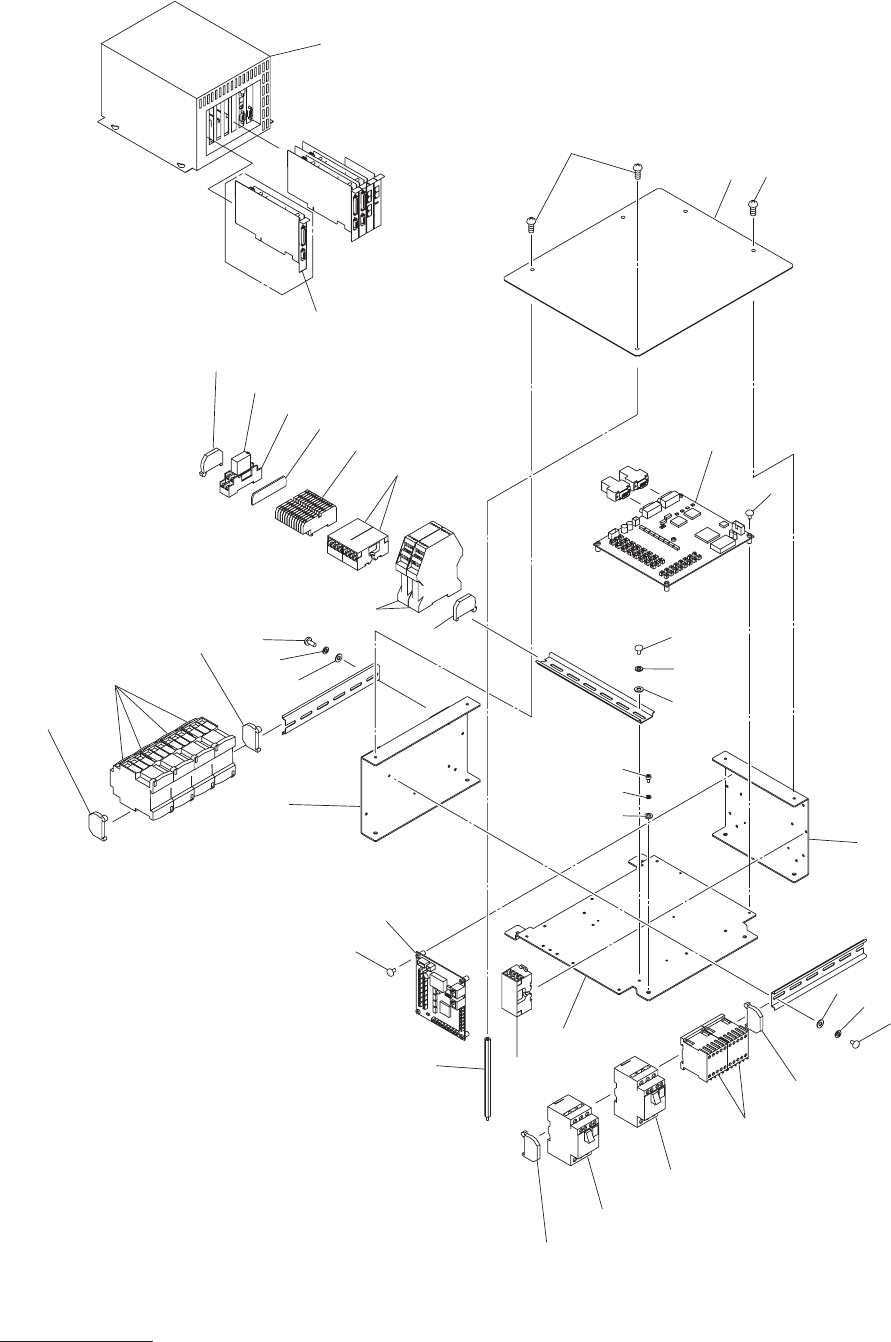

MODEL FP-G100L
0801-002
電装部
ELECTRICAL SECTION
Fig. TF-1
制御部
Control Section
56
GXH-3PH or GXH-3JPH
See Fig. FB-1 or FD-1
Key No.69
52
57
51
67
81
63
65
66
81
55
58
53
93
92
86
88
87
89
91
90
91
90
89
93
67
82
69
68
81
81
70
81
64
81
54
89
90
91
85
84
.
83
.
92
TF-1 illust-1
MODEL FP-G100L
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
51 6301291079 BASE 1 806TF-110-051 210A2225
52 6301309934 COVER 1 806TF-110-052 211A9120
53 6301284316 BRACKET 1 806TF-110-053 211F8547
54 6301300665 BRACKET 1 806TF-110-054 211F8800
55 6301284453 SHAFT 1 806TF-110-055 213A1074
56 6301230115 P.C.B,MOUNT 1 -U90 806TF-110-151 4B111437
57 6301235707 P.C.B,MOUNT 1 -U04 806TF-110-152 4B111448
58 6301376103 P.C.B,MOUNT 1 -U05 806TF-110-153 4B111516
63 6301083520 CIRCUIT PROTECTOR 1 -Q101 806TF-110-163 4S250252
64 6301288925 EM-CONTACTOR 4 -K201,-K202,-K301,-K302
806TF-110-164 4S210116
65 6301192260 CIRCUIT PROTECTOR 1 -Q201 806TF-110-165 4S250275
66 6300941418 EM-CONTACTOR 2 -K101,-K102
806TF-110-166 4S210086
67 6300854152 RELAY 3 806TF-110-167 4S200112
68 6300635423 RELAY 1 806TF-110-168 4S200086
69 6300635430 SOCKET 1 806TF-110-169 4J120099
70 6301158440 RELAY 2 -K001,-K002
806TF-110-170 4S200142
81 6300911749 BRACKET,WIRING 6 806TF-110-181 23N10027
82 6301268729 ACCESSORY,WIRING 1 806TF-110-182 23N30609
83 6301268736 ACCESSORY,WIRING 6 806TF-110-183 23N30610
84 6301268705 TERMINAL 12 806TF-110-184 4J320185
85 6300969917 ACCESSORY,WIRING 1 806TF-110-185 23N30524
86 6300007619 BOLT,HEX-SCT 4 M4X8 221A0016
87 4111412905 WASHER SPR 4 4 SW4 221H0284
88 6300010213 WASHER 4 BW4 221H0004
89 4111131400 SCR PAN 4X6 6 M4X6 PAN 221E0509
90 4110081706 WASHER SPR 4 6 SW4 F 221H0283
91 4111192104 WASHER V 4X9X0.8 6 FW4 F 221H0314
92 4111130700 SCR PAN 3X16 8 M3X16 PAN 221E0491
93 4110511708 SCR TRS 4X6 5 M4X6 TRS 221E0532
TF-1
TF-1 list-1
MODEL FP-G100L
0801-002
電装部
ELECTRICAL SECTION

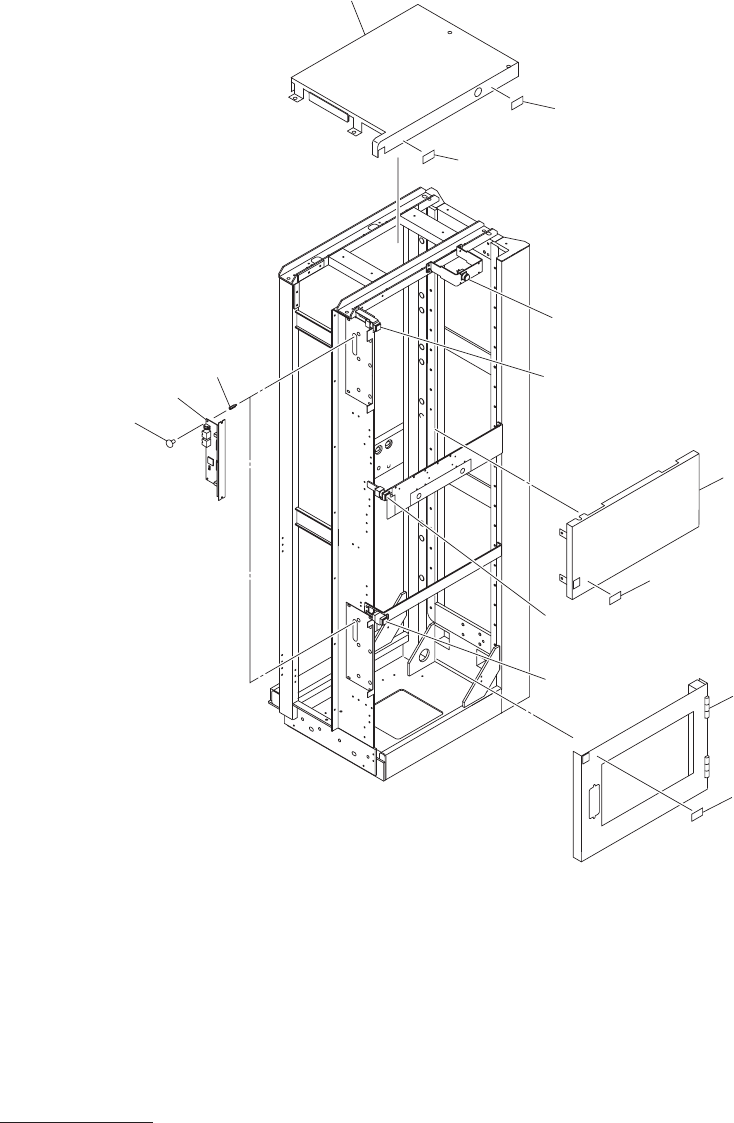

Fig. TF-2
エレベータ操作部
Elevator Operating Section
183
182
184
187
187
187
See Fig. EL-3
Key No.208
187
See Fig. EL-3
Key No.215
154
180
191
See Fig.EL-3
Key No.203
181
TF-2 illust-1
