2 Installation
2.3 Installation of the SST25 camera
14 Assembly Instructions E by SIPLACE SST25 Camera Option 03/2018
2.3 Installation of the SST25 camera
Fig.3: Interface plate
► Mount the interface plate W/Fastening [03112787‑xx] onto the machine frame as shown with
four cap screws (ISO-M6x12-8.8).
2 Installation
2.3 Installation of the SST25 camera
Assembly Instructions E by SIPLACE SST25 Camera Option 03/2018 15

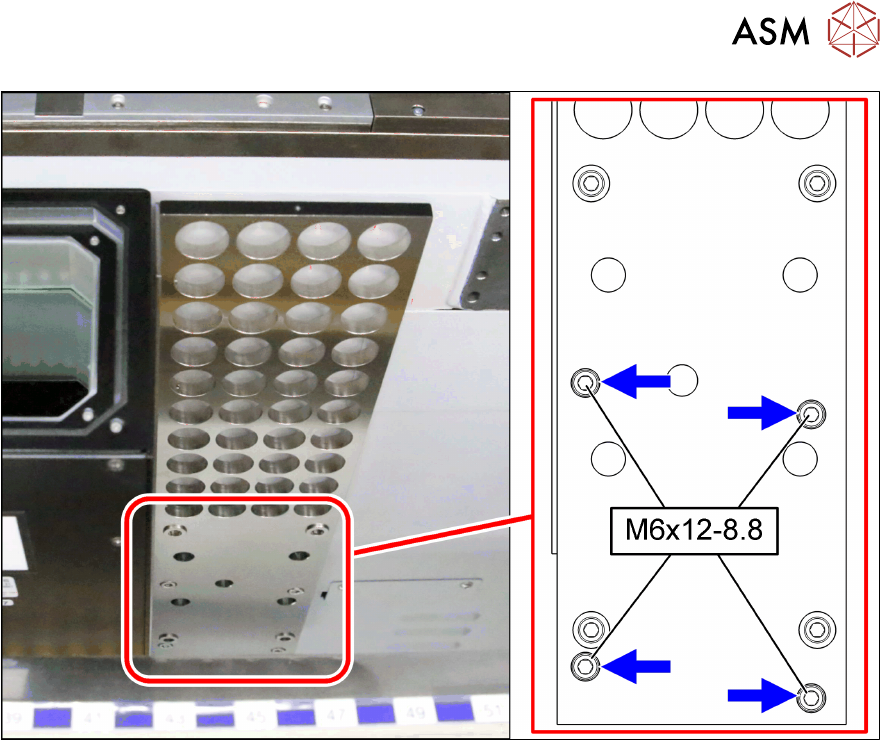

Fig.4: Support plate
► Mount the support plate complete [03112717‑xx] onto the machine frame as shown with four
cap screws (ISO-M6x12-8.8).
2 Installation
2.3 Installation of the SST25 camera
16 Assembly Instructions E by SIPLACE SST25 Camera Option 03/2018

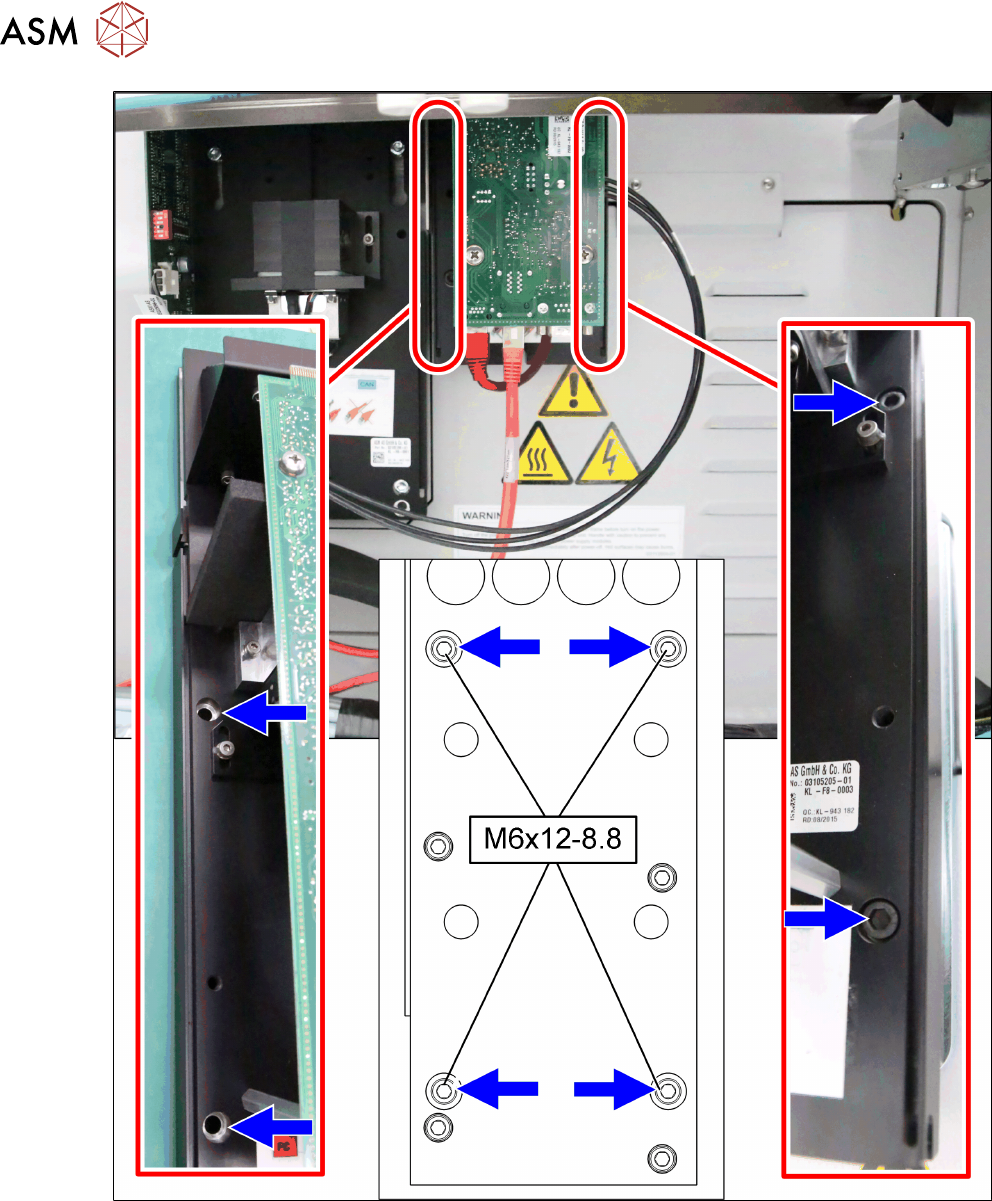

Fig.5: Camera
► Mount the camera onto the plate as shown with four cap screws (ISO-M6x12-8.8).
