2 Installation 2.3 Installation of the SST25 camera Assembly Instructions E by SIPLACE SST25 Camera Option 03/2018 17 Fig.6: Dip switch ► Set the dip switch as shown. Dip Switch Number ON / OFF 1 OFF 2 ON 3 OFF 4 OFF 5 …
2 Installation
2.3 Installation of the SST25 camera
16 Assembly Instructions E by SIPLACE SST25 Camera Option 03/2018
Fig.5: Camera
► Mount the camera onto the plate as shown with four cap screws (ISO-M6x12-8.8).
2 Installation
2.3 Installation of the SST25 camera
Assembly Instructions E by SIPLACE SST25 Camera Option 03/2018 17

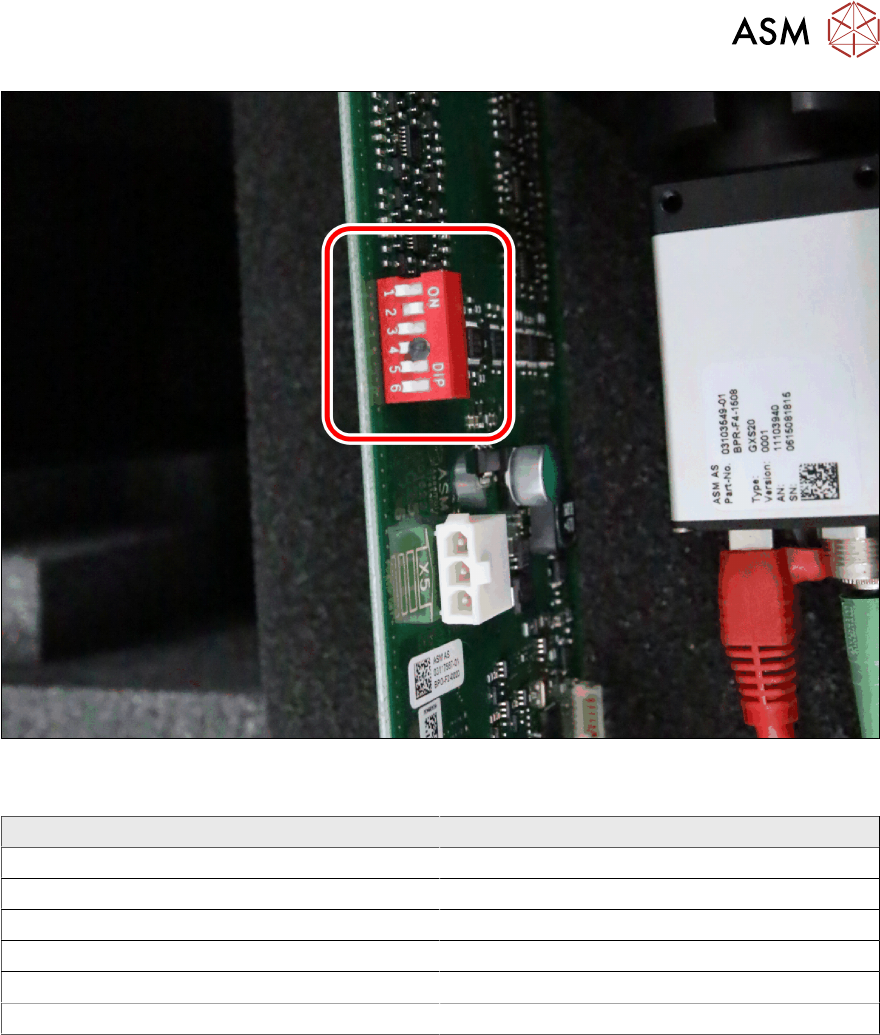

Fig.6: Dip switch
► Set the dip switch as shown.
Dip Switch Number ON / OFF
1 OFF
2 ON
3 OFF
4 OFF
5 OFF
6 OFF
2 Installation
2.3 Installation of the SST25 camera
18 Assembly Instructions E by SIPLACE SST25 Camera Option 03/2018
Fig.7: Cables overview
Connect the cables as shown in the following steps.
