2 Installation 2.4 Final Tasks Assembly Instructions E by SIPLACE SST25 Camera Option 03/2018 21 Fig.10: Cable 4 and 5 ► Connect the cable x4am [03102503‑xx] from the bundle of cables to the stationary camera as shown. …
2 Installation
2.3 Installation of the SST25 camera
20 Assembly Instructions E by SIPLACE SST25 Camera Option 03/2018
Fig.9: Cable 2 and 3
► Connect the cable x22.1dm/x21am [03102500‑xx] to the flip chip camera as shown.
► Connect the cable x21am [03102502‑xx] to the stationary camera and cable x22.2dm
[03102502‑xx] to the flip chip camera as shown.
2 Installation
2.4 Final Tasks
Assembly Instructions E by SIPLACE SST25 Camera Option 03/2018 21

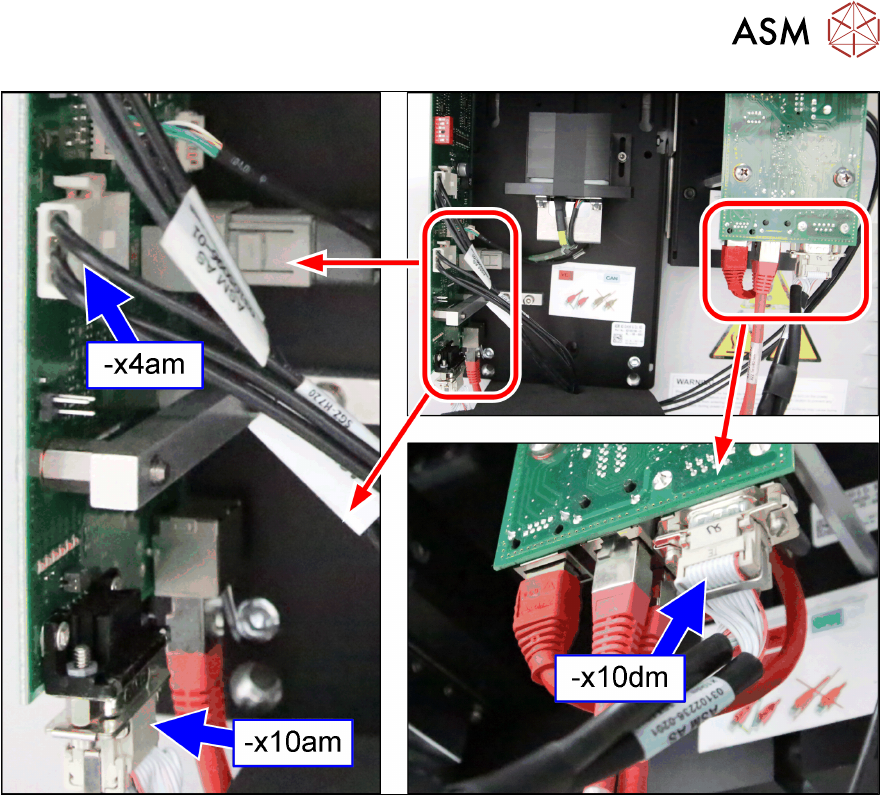

Fig.10: Cable 4 and 5
► Connect the cable x4am [03102503‑xx] from the bundle of cables to the stationary camera as
shown.
► Connect the cable x10dm [03102236‑xx] to the flip chip camera and cable x10am
[03102236‑xx] to the stationary camera as shown.
2.4 Final Tasks
► Proceed with necessary SIRIO configuration.
► Proceed with necessary SIPLACE Pro configuration.
2 Installation
2.4 Final Tasks
22 Assembly Instructions E by SIPLACE SST25 Camera Option 03/2018
