User Manual SIPLACE F5/F5 HM 6 Vision functions
Software version SR.407.xx 01/2001 US Edition 6.6 Test Component
305
6
Fig. 6.6 - 14 Test component menu, options
6 Vision functions User Manual SIPLACE F5/F5 HM
6.6 Test Component Software version SR.407.xx 01/2001 US Edition
306
6.6.4.1 Pick Up Component Option
NOTE 6
Before you can activate this option you must have already loaded a package form number. If this
is not the case, the button will remain inactive.
6
Fig. 6.6 - 15 Test component menu, Pick up component option
When this option is activated the following actions are started: 6
– A component is picked up from a specific track.
– If there already is a component beneath the component camera, it will be discarded.
– The options Test and Measure can be clicked on.
User Manual SIPLACE F5/F5 HM 6 Vision functions
Software version SR.407.xx 01/2001 US Edition 6.6 Test Component
307
6.6.4.2 Display Component Option
NOTE 6
Before you can activate this option you must have already loaded a package form number.
6

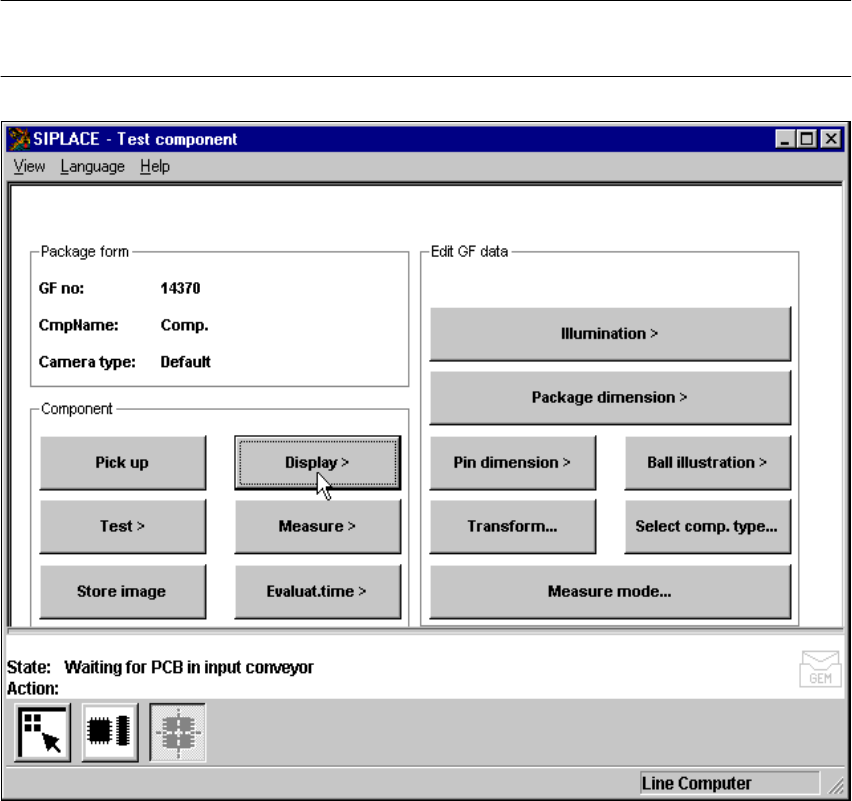

Fig. 6.6 - 16 Test component menu, Display component option
When this option is activated the following actions are started: 6
– The teach command will be given.
– The vision system generates the outside contours of the component from the synthetic descrip-
tion.
– The video image with the real camera image and the model overlaid on it will be displayed on
the screen.
– The header with commentaries is displayed.
The operator can now check the synthetic description visually against the real component. 6
