1.5 Machine description
1.5.1 Functional description of the SIPLACE F5
1
Fig. 1.5 - 1 General view of the F
5
placement machine
(1) 6-segment Collect&Place head with component vision module
(2) Gantry with PCB vision module
(3) Pick&Place head
(4) Fine-pitch vision module for the Pick&Place head
(5) Stationary component supply (location 1)
(6) Stationary component supply (location 3)
(7) PCB conveyor ( dual conveyor option)
1 Introduction and technical data User Manual SIPLACE F5/F5 HM
1.5 Machine description Software version SR.407.xx 01/2001 US Edition
32
The F5 placement machine is a high-speed placement machine with a gantry axis system. The
gantry supports: 1
– a PCB vision module,
– a star-shaped 6-segment Collect&Place head, and
– a Pick&Place head.
The 6-segment Collect&Place head will increase the placement rate if the proportion of ICs in the
placement process is very high. 1
The Pick&Place head is particularly suitable for inserting fine-pitch components. In addition to the
vision module for PCB centering, the F5 machine also has component vision modules for the Col-
lect&Place head and Pick&Place head. 1
A coplanarity laser module and a flip-chip vision module can also be retrofitted as options. 1
A wafflepack changer can be used to supply components. 1
The placement heads pick up components from stationary feeders and then place them in the
PCBs clamped on the PCB conveyor. 1
User Manual SIPLACE F5/F5 HM 1 Introduction and technical data
Software version SR.407.xx 01/2001 US Edition 1.5 Machine description
33
1.5.2 General view of the SIPLACE F5 with wafflepack changer
1

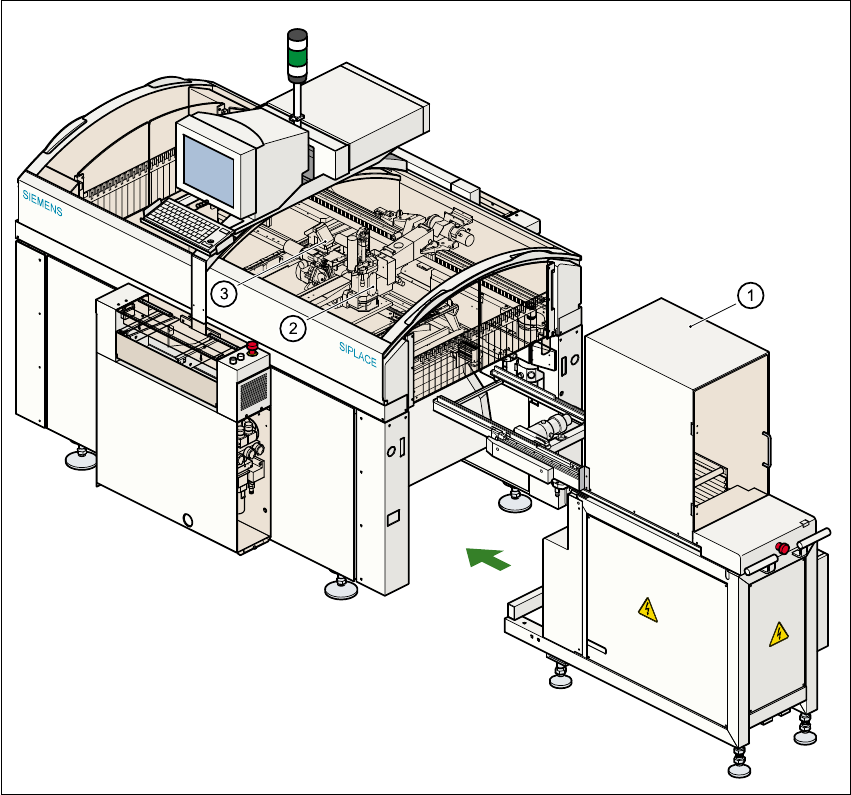

Fig. 1.5 - 2 General view of the F
5
with wafflepack changer
(1) Wafflepack changer
(2) Pick&Place head
(3) 6-segment Collect&Place head
