1.9 Dimensions and weight of the machine
1.9.1 Dimensions of the machine

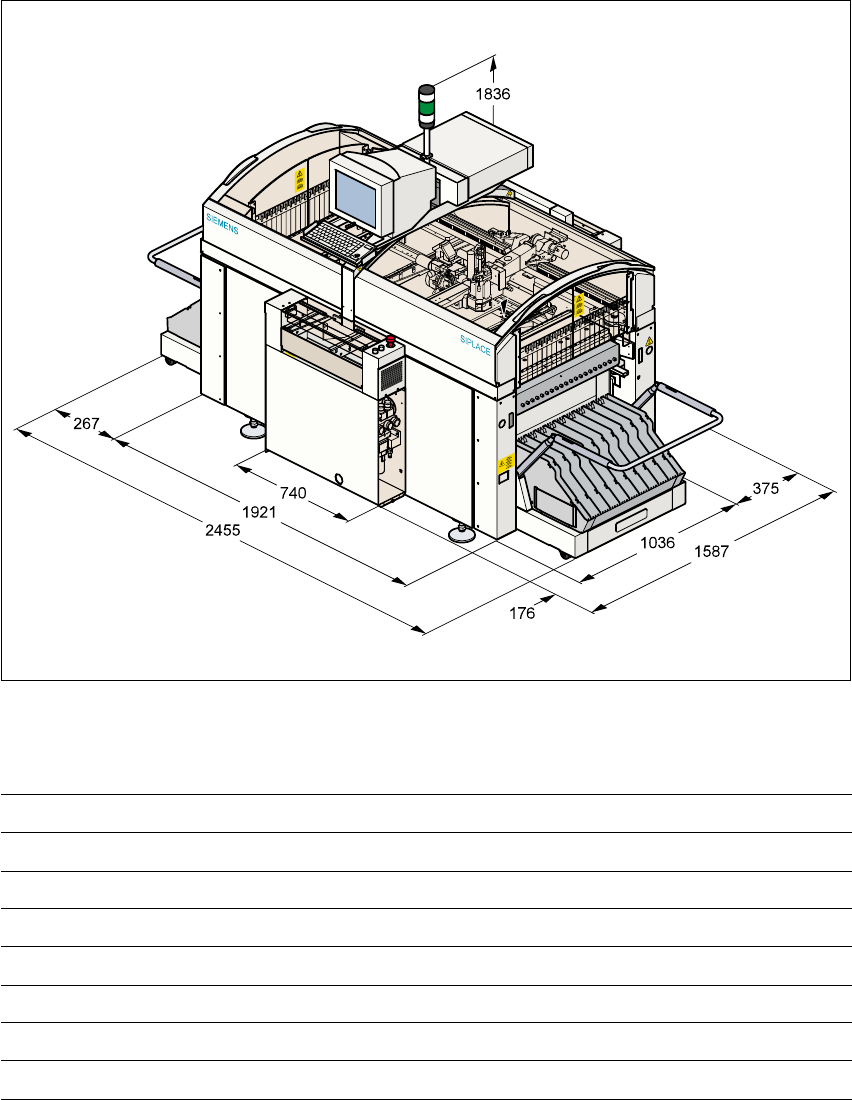

Fig. 1.9 - 1 Dimensions of the machine
1.9.2 Technical data – dimensions, weight
Length 1587 mm with conveyor belts
Width 2455 mm with brackets
Height with warning lamp 1836 mm standard height
Ground clearance 120 mm standard height
Weight of basic module 1500 kg
Weight fully equipped approx. 2000 kg
Permissible load per unit area on foundation Min. 1000 kg/m²
Load per unit area on mounting feet 4.42 kg/cm²
1 Introduction and technical data User Manual SIPLACE F5/F5 HM
1.9 Dimensions and weight of the machine Software version SR.407.xx 01/2001 US Edition
44
1.9.3 Center of gravity of the machine
1

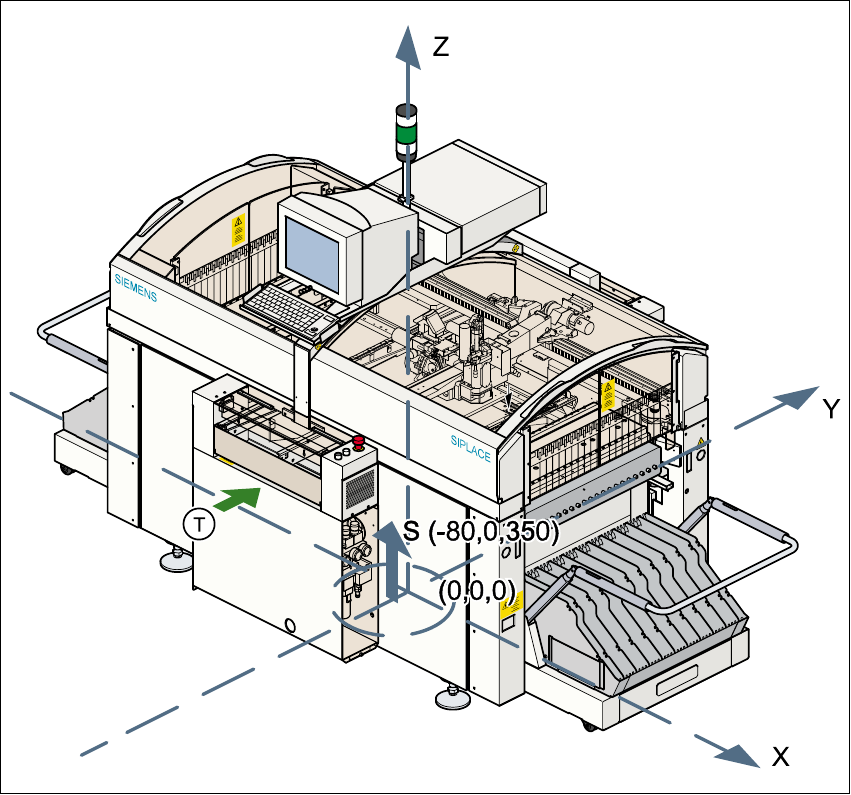

Fig. 1.9 - 2 Center of gravity of the machine
X coordinate - 80 mm
Y coordinate 0 mm
Z coordinate 350 mm high
T PCB transport direction 1
1
These center of gravity coordinates relate to machines with a PCB transport height of 830 mm.1
User Manual SIPLACE F5/F5 HM 1 Introduction and technical data
Software version SR.407.xx 01/2001 US Edition 1.10 Setting up the placement machine
45
1.10 Setting up the placement machine
1.10.1 Transport dimensions
1

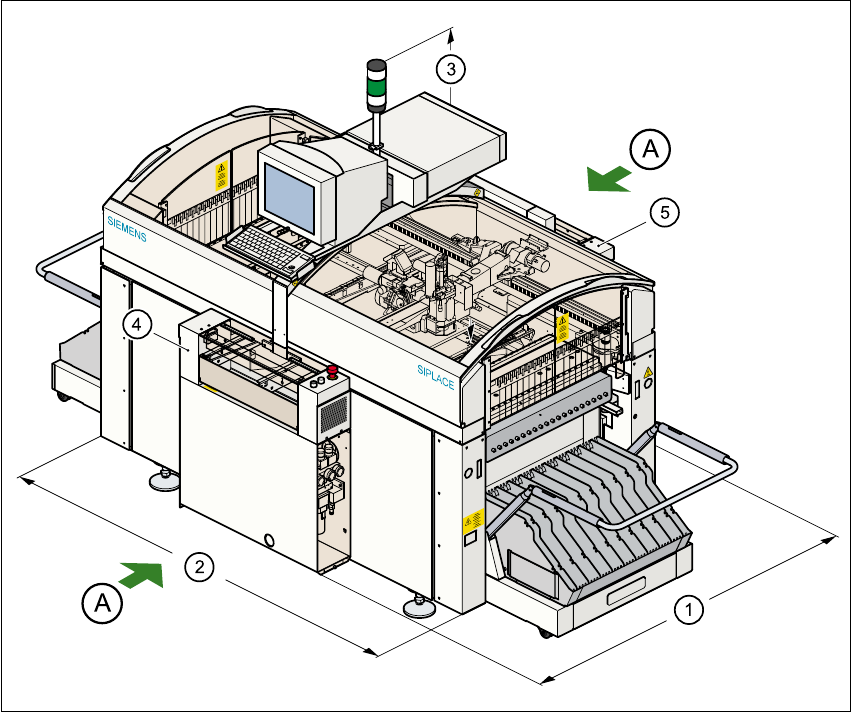

Fig. 1.10 - 1 Dimensions of the placement machine during transportation and setting up
A Points for attaching the pallet jack (fork length 1600 mm) 1
(1) Length 1587 mm
(2) Width 1921 mm
(3) Height 1836 mm
(4) Input conveyor
(5) Output conveyor
The PCB transport height is 830 mm ± 15 mm. 1
