10 Component handling User Manual SIPLACE F5/F5 HM
10.10 Surftape feeder module (with DCA option only) Software version SR.407.xx 01/2001 US Edition
476
10.10 Surftape feeder module (with DCA option only)
10.10.1 Overview
You will need the surf tape feeder module to supply the components in order to insert bare dies.
Feeder module versions are available for 8 mm tapes and 12 or 16 mm tapes. 10

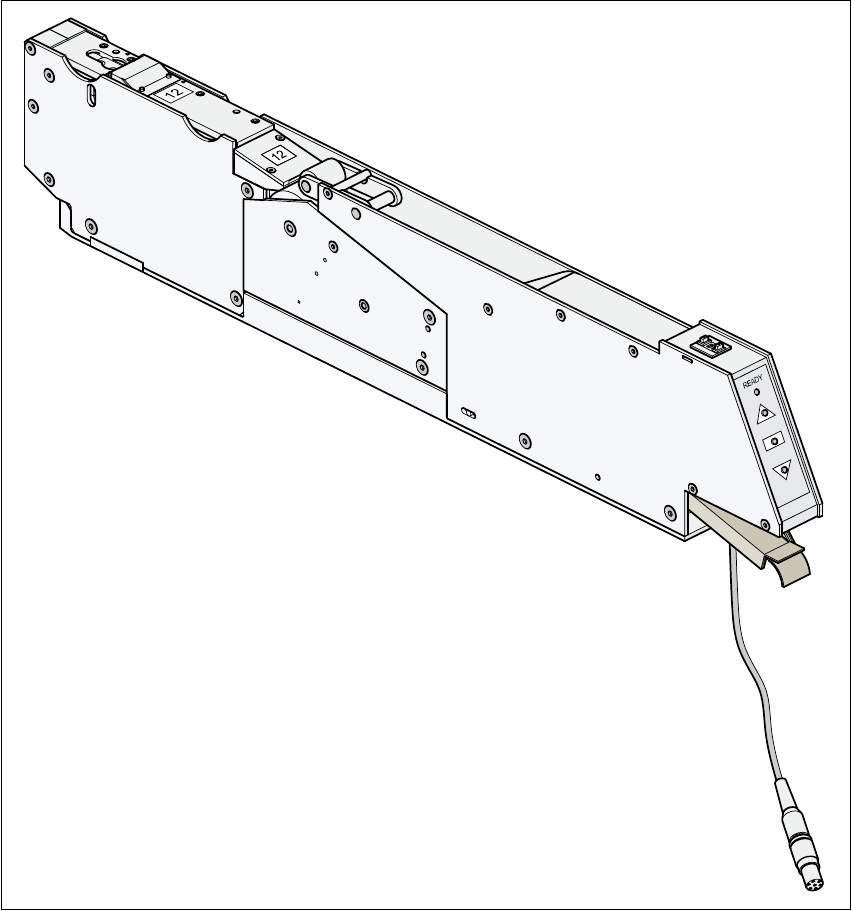

Fig. 10.10 - 1 Surf tape feeder module
Use of the feeder module is described in chapter 16 of the feeder module operating instructions.10
User Manual SIPLACE F5/F5 HM 10 Component handling
Software version SR.407.xx 01/2001 US Edition 10.10 Surftape feeder module (with DCA option only)
477
10.10.2 Machine data file DCA.MA
You will need version 404 or higher of the machine controller software if you want to insert bare
dies. 10
The file DCA.MA contains the machine data for the surf tape feeder modules. It is located in the
directory 10
C:\SRDaten\Srcma\ 10
The machine data can be modified using the WINDOWS NT text editor. 10
10.10.3 Editing the file DCA.MA
PLEASE NOTE:
All the actions for modifying the DCA.MA file described below can only be carried out at the ’Ser-
vice engineer’ operator level. 10
You must exit the SIPLACE program before you can edit the machine data in the DCA.MA file. To
do this, proceed as follows: 10
– In the main view, open the ’Options’ pull-down menu.
– Select the ’Service engineer’ operator level.
– Open the ’Mode’ pull-down menu and click on the ’Close user interface ...’ option. You can also
exit the SIPLACE program by pressing the Alt and F4 keys at the same time.
10
You are now in the WINDOWS NT 4.0 desktop. 10
– Click on the ’Start’ button at the bottom of the screen.
– Under ’Programs’ and then ’Accessories’, open the ’Editor’.
PLEASE NOTE:
We recommend that you use the Windows NT editor. However, if you would prefer to use WORD
or NOTEPAD to edit the data, you must ensure that you save the DCA.MA file as an ASCII file,
i.e. without formatting. If you forget to do this, the machine controller will be unable to read
DCA.MA. 10
– In the directory C:\SRDaten\Srcma\, open the file DCA.MA using the ’File’ option and edit the
file to suit your requirements.
10
Up to 20 package form numbers for the Pick&Place head and up to 100 package form numbers
for the Collect&Place head can be entered in the package form arrays in the DCA.MA file. The
package forms can be fetched from four different surf tape feeder module types. 10
10
10 Component handling User Manual SIPLACE F5/F5 HM
10.10 Surftape feeder module (with DCA option only) Software version SR.407.xx 01/2001 US Edition
478
Settings for the individual values:
Meaning: Settings:
\ *** Maschinendaten Surftape-Feeder *** \
\ Datei "DCA.MA"| File name none
\ Version \ "8.404.03"| Current version none
\ Maschinentyp \ "80F4"| Machine type 80S4 or 80F4 none
\ *** Schalteroptionen 0/1 *** \
\ Surftapeablauf ein/aus \ 1, Special surf tape sequence 0:off, 1:on *1)
\ immer Bestueckzeit fuer Listen-GF \ 0, Placement wait time for PF specified below 0:off, 1:on *1)
\ Kraftstufe beim Abholen mit SP-Kopf\ 0, Z axis values from power record :default, 14:pwr stage 14 *2)
\ Kraftstufe beim Abholen mit IC-Kopf\ 0| Z axis values from power record 0:default, 14:pwr stage 14 *2)
\ *** Feederdaten-Array *** \
\ Feedertyp 1 - 8mm Feeder \
\ Feeder-Typ -- Spurart \ 80, Track type for 8mm surf tape feeder none
\ R: Feeder Nadelhub [1/10mm] \ 0, Reserved none
\ Wartezeit Ausstossernadel [0.01s] \ 20, Time for extending the feeder needle *3) time value
\ Folienabloesezeit [0.01s] \ 20, Wait time for removing the foil time value
\ Reserve \ 0> Reserved none
\ Feedertyp 2 - 12mm Feeder \
\ Feeder-Typ -- Spurart \ 81, Track type for 12mm surf tape feeder none
\ R: Feeder Nadelhub [1/10mm] \ 0, Reserved none
\ Wartezeit Ausstossernadel [0.01s] \ 30, Time for extending the feeder needle *3) time value
\ Folienabloesezeit [0.01s] \ 20, Wait time for removing the foil time value
\ Reserve \ 0| Reserved none
\ Feedertyp 3 – 16mm Feeder \
\ Feeder-Typ -- Spurart \ 82, Track type for 16mm surf tape feeder none
\ R: Feeder Nadelhub [1/10mm] \ 0, Reserved none
\ Wartezeit Ausstossernadel [0.01s] \ 40, Time for extending the feeder needle *3) time value
\ Folienabloesezeit [0.01s] \ 30, Wait time for removing the foil time value
\ Reserve \ 0| Reserved none
\ Feedertyp 4 - 24mm Feeder \
\ Feeder-Typ -- Spurart \ 83, Track type for 24mm surf tape feeder none
\ R: Feeder Nadelhub [1/10mm] \ 0, Reserved none
\ Wartezeit Ausstossernadel [0.01s] \ 50, Time for extending the feeder needle *3) time value
\ Folienabloesezeit [0.01s] \ 50, Wait time for removing the foil time value
\ Reserve \ 0| Reserved none
\ *** Gehaeuseformarray IC-Kopf *** \ List of PFs for pick-up from surf tape feeder with IC head
\ Gehaeuseform 1 \
\ Gehaeuseform-Nr. \ 2001, Consec. package form for special treatment 0:off, PF no.
\ R: Offset Abholhoehe [1/10mm] \ 0, Reserved none
\ R: Verweilzeit Abholen [0.01s] \ 0, Reserved none
\ Verweilzeit Bestuecken [0.01s] \ 100, Wait time during placement with Z axis downtime value
\ Kraftstufe beim Bestuecken \ 0, Power stage during placement 0:standard, X:other
\ R: Offset Kleberhoehe [1/100mm] \ 0, Reserved none
\ Reserve \ 0> Reserved none
etc. up to:
\ Gehaeuseform 20 \
\ Gehaeuseform-Nr. \ 0, Consec. package form for special treatment 0:off, PF no.
\ R: Offset Abholhoehe [1/10mm] \ 0, Reserved none
\ R: Verweilzeit Abholen [0.01s] \ 0, Reserved none
\ Verweilzeit Bestuecken [0.01s] \ 50, Wait time during placement with Z axis downtime value
\ Kraftstufe beim Bestuecken \ 0, Power stage during placement 0:standard, X:other
\ R: Offset Kleberhoehe [1/100mm] \ 0, Reserved none
\ Reserve \ 0| Reserved none
\ *** Gehaeuseformarray SP-Kopf *** \ List of PFs for pick-up from surf tape feeder with SP head
\ Gehaeuseform 1 \
