11.12 Nozzle changer for the 6-segment Collect&Place
head
11.12.1 Overview
A nozzle changer for the 6-segment Collect&Place head can be installed, without loss of feeder
locations, to the left of the PCB conveyor. This enables the nozzle configuration to be changed
quickly, thus allowing the Collect&Place head to be quickly adapted to the needs of the placement
process.
The nozzle changer consists of at least one and up to five magazines, each with six nozzle holders
(see Fig. 11.12 - 1
). The magazines are seated on a common support. Each magazine is centered
using two parallel pins and fixed in place with a spring hook. 11
Magazines for the 9xx (
5
HM), 7xx (F
5
) and 8xx nozzle types can be set up. The magazines can
be arranged as required. 11
11.12.2 Technical data - Nozzle changer for the 6-segment Collect&Place head
Nozzle changer for the Collect&Place head
Space required (length x width x height) 575 mm x 70 mm x 60mm
Number of nozzle holders min.6 / max.30
Possible nozzle types 7xx (F
5
); 8xx (F
5
/F
5
HM); 9xx (F
5
HM)
Opening and closing the plate < 200 ms
Capacity of the reject bin approx. 50 type 7xx / 9xx nozzles
approx. 5 type 8xx nozzles
Pneumatic system 5.3 bar air line
User Manual SIPLACE F5/F5 HM 11 Station extensions /Hardware
Software version SR.407.xx 01/2001 US Edition 11.12 Nozzle changer for the 6-segment Collect&Place head
545
11

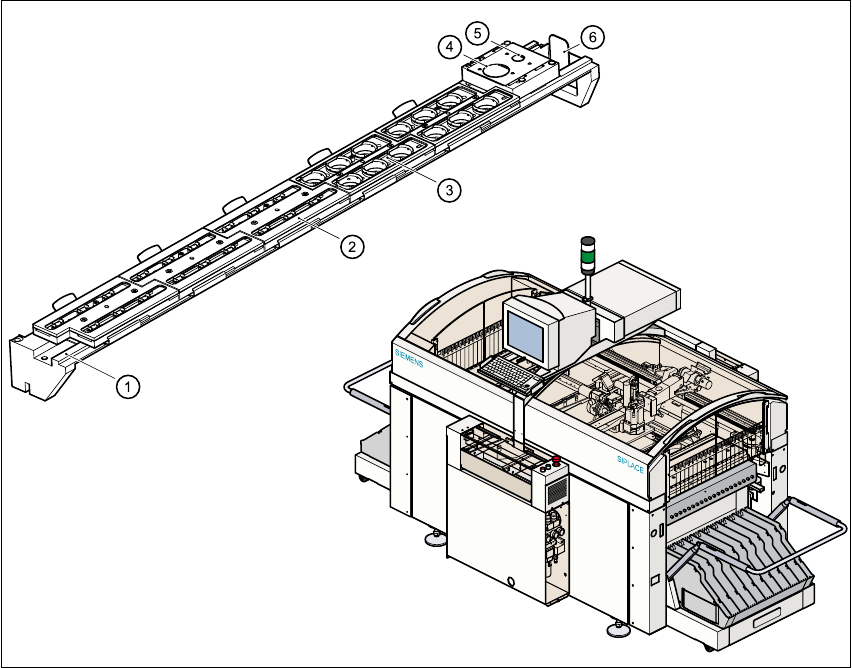

Fig. 11.12 - 1 Overview of the nozzle changer for the 6-segment Collect&Place head
11
(1) Nozzle changer, support
(2) Magazine for the 7xx/9xx nozzle type
(3) Magazine for the 8xx nozzle type
(4) Reject device for the 8xx nozzle type
(5) Reject device for the 7xx/9xx nozzle type
(6) Collecting bin for rejected nozzles
11 Station extensions /Hardware User Manual SIPLACE F5/F5 HM
11.12 Nozzle changer for the 6-segment Collect&Place head Software version SR.407.xx 01/2001 US Edition
546
11

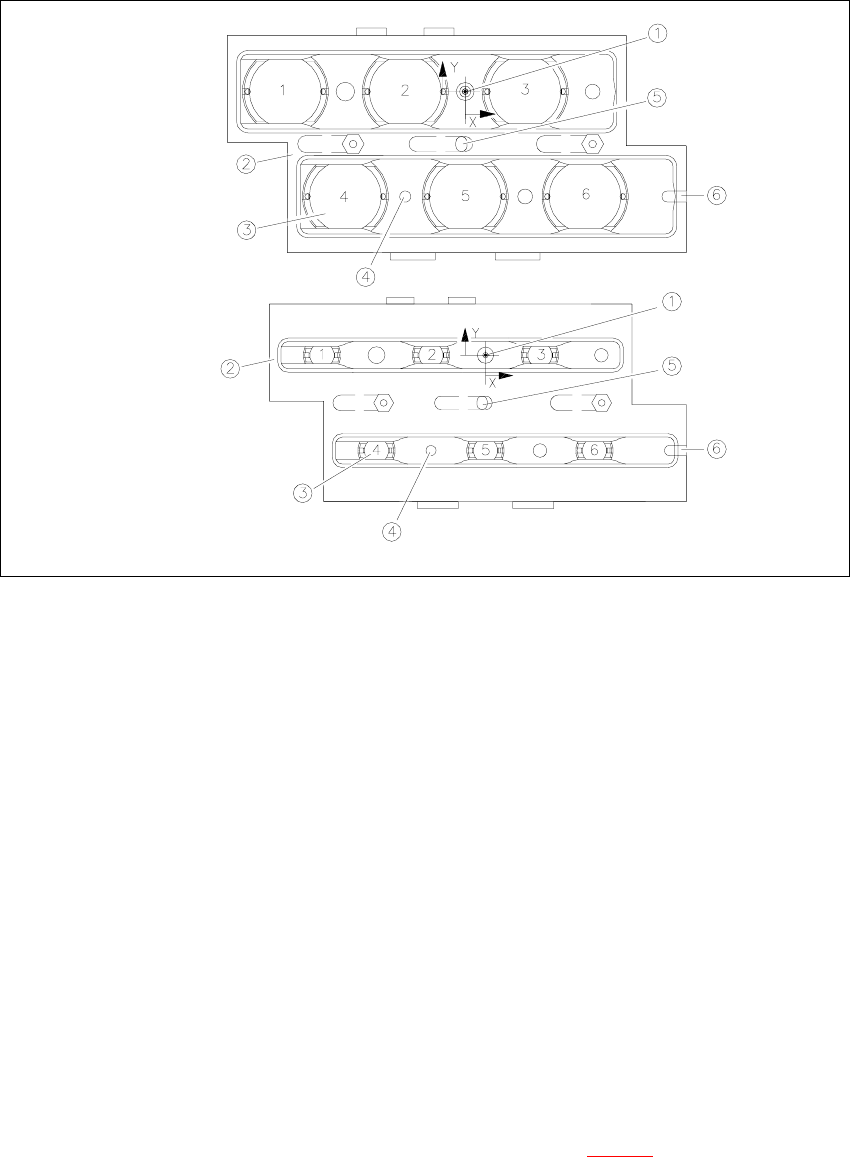

Fig. 11.12 - 2 Overview - magazine and nozzle holder
(1) Position fiducial
(2) Locking plate
(3) 7xx / 9xx or 8xx nozzle holder
(4) Hole for the parallel pin for centering the magazines
(5) Hole for the parallel pin of the moving mechanism
(6) Slot for the parallel pin for centering the magazines
11.12.3 Basic principles
The nozzles are seated in nozzle holders, and are fixed in place by a movable locking plate. The
locking plate can be moved up to 6 mm by a pneumatic cylinder. All the nozzles are either clamped
or released, depending on the position of this plate. The locking plate is always left in the “closed”
position if no nozzle exchange is taking place. 11
All the nozzle changer magazines have a position fiducial for position recognition purposes. The
magazine locations on the nozzle changer are identified by numbers 1 to 7. The nozzle holders in
the magazines are numbered consecutively from 1 to 12 (see Fig. 11.1 - 3
). 11
