2 Operational Safety User Manual SIPLACE F5/F5 HM
2.1 Safety instructions Software version SR.407.xx 01/2001 US Edition
78
2

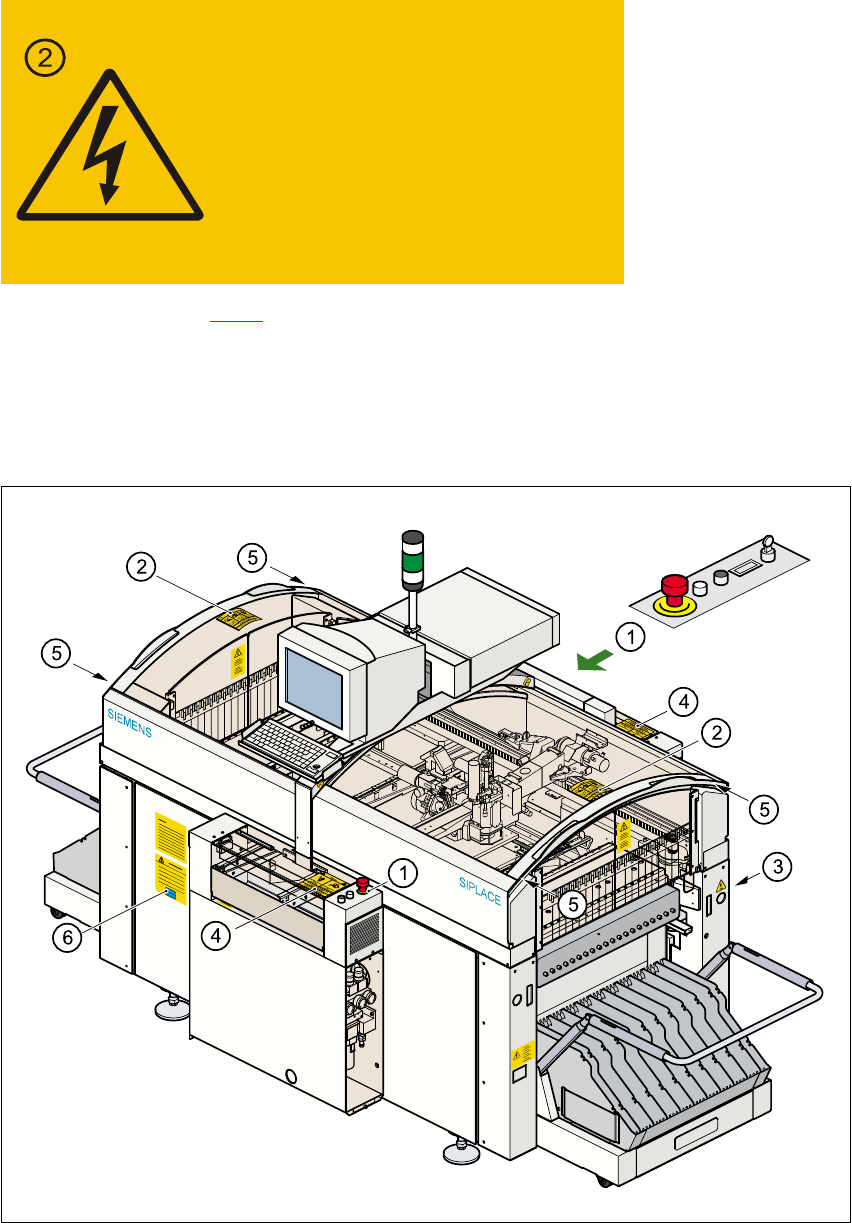

Fig. 2.1 - 3 Warning signs on the basic machine - part 3
Key to Fig. 2.1 - 3
T Direction of PCB transport 2
2

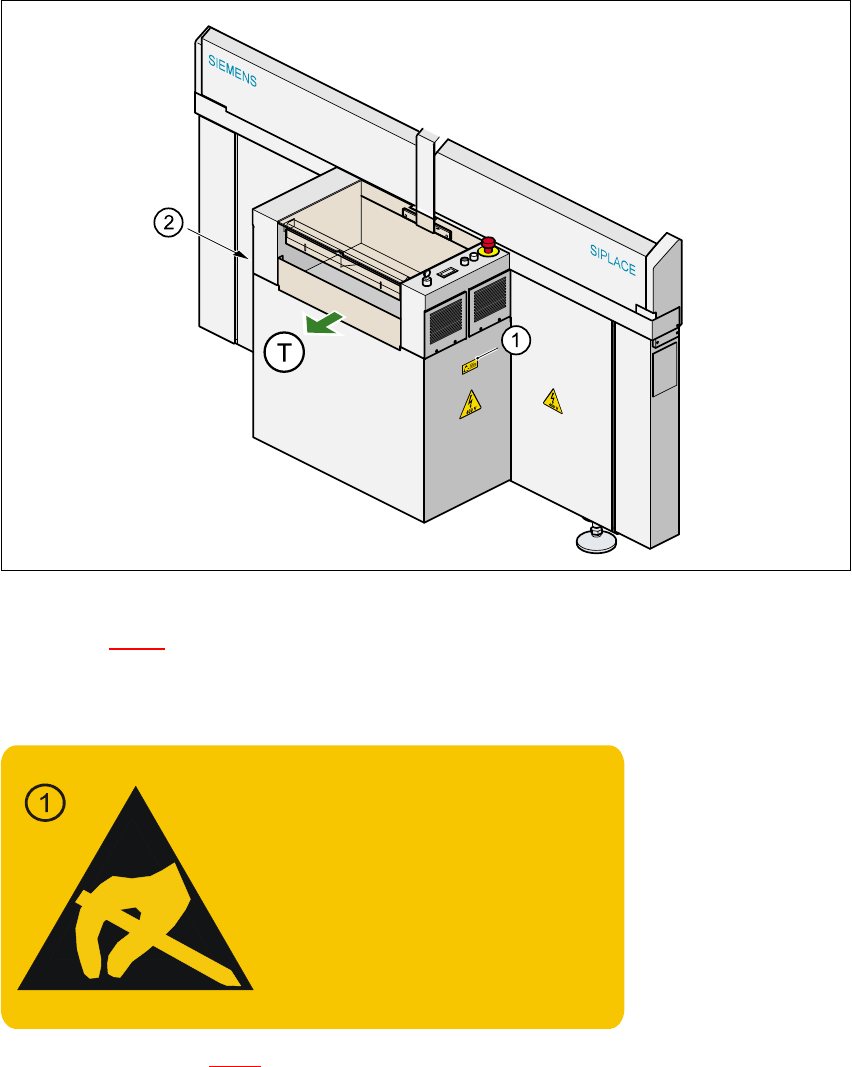

Item 1 from the diagram 2.1 - 3
showing the warning signs on the control unit on the basic machine 2
2
2
2
ACHTUNG
Handhabungsvorschriften
beachten
Elektrostatisch gefährdete
Bauelemente
ATTENTION
Electrostatic sensitive devices
Observe precautions for
handling
User Manual SIPLACE F5/F5 HM 2 Operational Safety
Software version SR.407.xx 01/2001 US Edition 2.1 Safety instructions
79
2
Item 2 from the diagram 2.1 - 3
showing the warning signs on the control unit of the basic machine 2
2
2.1.6 Additional warning signs for the NAFTA region
Fig. 2.1 - 4 Warning signs on the basic machine - NAFTA region
WARNING! MAIN POWER VOLTAGE
Completely isolate the machine
before removing the protective cover.
Capacitor discharge time
tmin. = wait 0.3 minutes
2 Operational Safety User Manual SIPLACE F5/F5 HM
2.1 Safety instructions Software version SR.407.xx 01/2001 US Edition
80
2
Item 1 in Fig. 2.1 - 4
showing the warning signs on the basic machine - NAFTA region 2
2
Item 2 in Fig. 2.1 - 4
showing the warning signs on the basic machine - NAFTA region 2
2
Item 3 in Fig. 2.1 - 4
showing the warning signs on the basic machine - NAFTA region (on the cover
over the terminal panels) 2
