FCP IV-3 Operation
7. No. 14 Detail
All of the graphic functions are displayed along with the details of the
data of each function. In this case the trackball is necessary.
8. No. 15 Pause
This raises the flag when the trackball is used. When used together with
other functions, this is used for verifying the device process while these
other functions such as zoom in or zoom out are being used.
9. No. 24 Clp
This is used for verifying the device process for devices that use calipers.
This function is presently used for SOIC's and when the frontlight system
is used, for PLCC's and SQFP's.
10. No. 25 Blob
This is used for process verification when the blob function is used. This
function is used for carrying out rough device positioning. This function
is presently used for SOIC's and when the frontlight system is used, for
PLCC's and SQFP's.
11. No. 26 Agf
This is used when the angle finder carries out detail verification. This
function is used when the angle or corner check is carried out during
vision processing.
Chapter 3 Description of Commands
Part 3
3 – 61
Version 5.0
FCP IV-3 Operation
12. No. 30 AcqTime
This is used for the timing of acquisition when output is being sent to a
parallel port.
13. No. 31 InsTime
This is used for the timing of inspection when output is being sent to a
parallel port.
Note: For more details concerning trace mode settings refer to Part 5, Chapter 2 of this
manual.

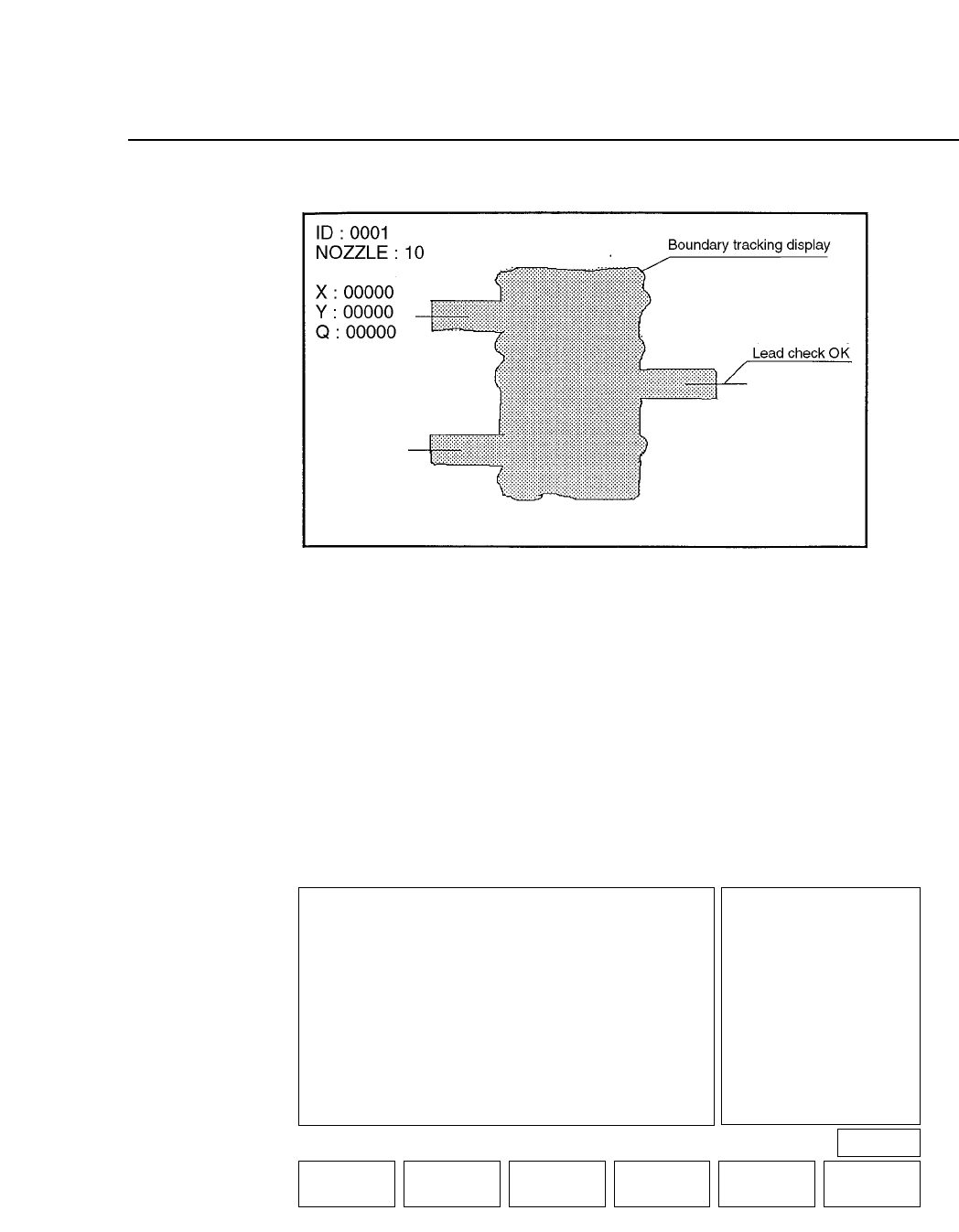

• First Display Area
• First Status Area
TRACE
VISION TRACE STATUS
No
0 Result OFF
1 Tole OFF
2 Window OFF
3 Point OFF
4 Line OFF
5 RS232C OFF
6 * * * * * * * *
7 * * * * * * * *
8 * * * * * * * *
9 * * * * * * * *
Mode
No Mode
10 * * * * * * * *
11 * * * * * * * *
12 * * * * * * * *
13 Color OFF
14 Detail OFF
15 Pause OFF
16 Clp OFF
17 Place OFF
18 Results OFF
19 Timers OFF
No
20 Inspect OFF
21 * * * * * * * *
22 * * * * * * * *
23 * * * * * * * *
24 Clp * * *
25 Blob OFF
26 Agf OFF
27 BT OFF
28 * * * * * * * *
29 * * * * * * * *
30 Acqtime OFF
31 Instime OFF
select No
▲▼ON / OFF QTY.CLEAR THROUGH RETURN
PAGE 522
Operation : FRONT
Ready
Chapter 3 Description of Commands
Part 3
3 – 62
Version 5.0
• Action of the Function Keys
BUFFER IMG1 : Press to display the most recent image in
memory on the vision processing board.
(Normally the acquired image is of the part
at station 4.)
BUFFER IMG2 : Press to display the image prior to the most
recent image in memory on the vision
processing board. (Normally this is the
image of the part that is at station 5.)
ZOOM IN : Press this key to zoom in on the image
displayed on the vision processing monitor.
ZOOM OUT : Press this key to zoom out the image
displayed on the vision processing monitor.
However the image cannot be zoomed out
farther than the original image.
REINSPECT : Press to vision process the selected image
one more time.
RETURN : Press to return to Page 522/110.
There will be no display if there is nothing in memory on the
vision processing board. Even if the image in memory on the
vision processing board is something other than a part image
this image will display if it is selected.
• First Display Area
DEVICE
DSP MEM-IMG
BUFFER IMG 1
BUFFER IMG 2
• Function Key Menu
Chapter 3 Description of Commands
To Page 522/110
Displaying Memory of Parts
Part 3
3 – 63
DSP MEM-IMG
Page
522 111
BUFFER IMG 1 BUFFER IMG 2 ZOOM IN ZOOM OUT REINSPECT RETURN
Version 5.0
FCP IV-3 Operation
