Chapter 1 T race Mode Part 5 1.2 V ision T race Diagnostic Flags The details of the vision trace function are explained below . 1. No. 0 Result A graphic display is carried out based on the results of inspection. When ei…
Chapter 1 Trace ModePart 5
(3) The vision trace display lists a number of diagnostic flags which can
be turned ON or OFF. When power is turned on, all flags are set to
OFF. Flag settings are not saved when the power is turned off.
The currently selected flag is highlighted. To select a different flag,
press [▲] or [▼] to move the cursor up or down, or enter the flag
number directly from the numerical keypad. Press [ON/OFF] to turn
a flag ON or OFF. Press [CLEAR] to turn all flags OFF.
Press [THROUGH] to display a realtime image on the monitor.
5 – 2Version 2.0
Chapter 1 Trace ModePart 5
1.2 Vision Trace Diagnostic Flags
The details of the vision trace function are explained below.
1. No. 0 Result
A graphic display is carried out based on the results of inspection.
When either the [REINSPECT] or [ACQR INSPECT] vision
command is carried out this flag will automatically be set to ON.
Details of the Inspection Results Graphic Display
After vision processing is complete the recognized device center
value is displayed graphically. The amount of correction that is
indicated by the outline of the device shape and the nozzle position
is then carried out. If an error has occurred the details of the error
will be displayed.
(1) Normal Display
5 – 3Version 2.0
Chapter 1 Trace ModePart 5

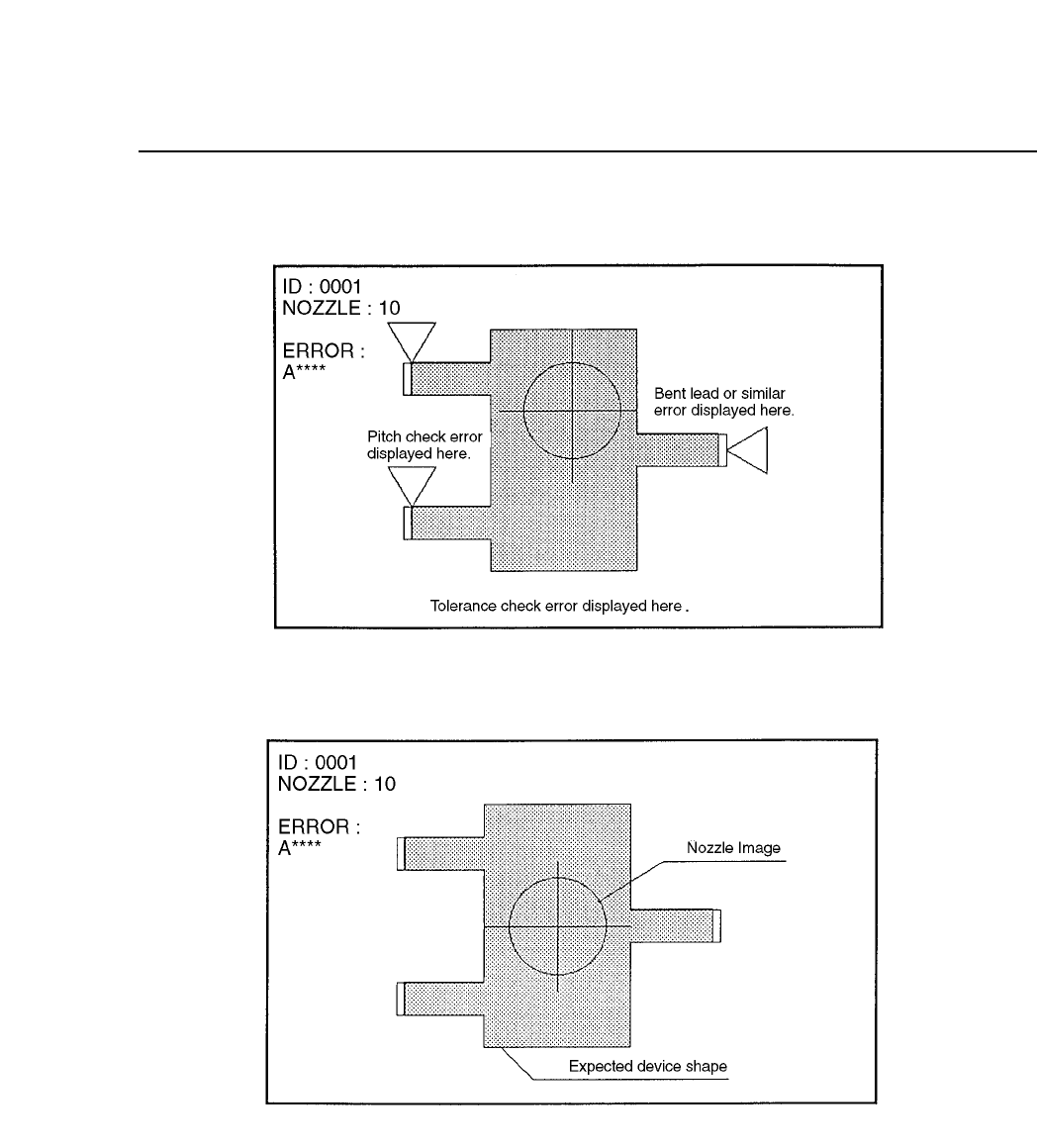

(2) Tolerance Error Display

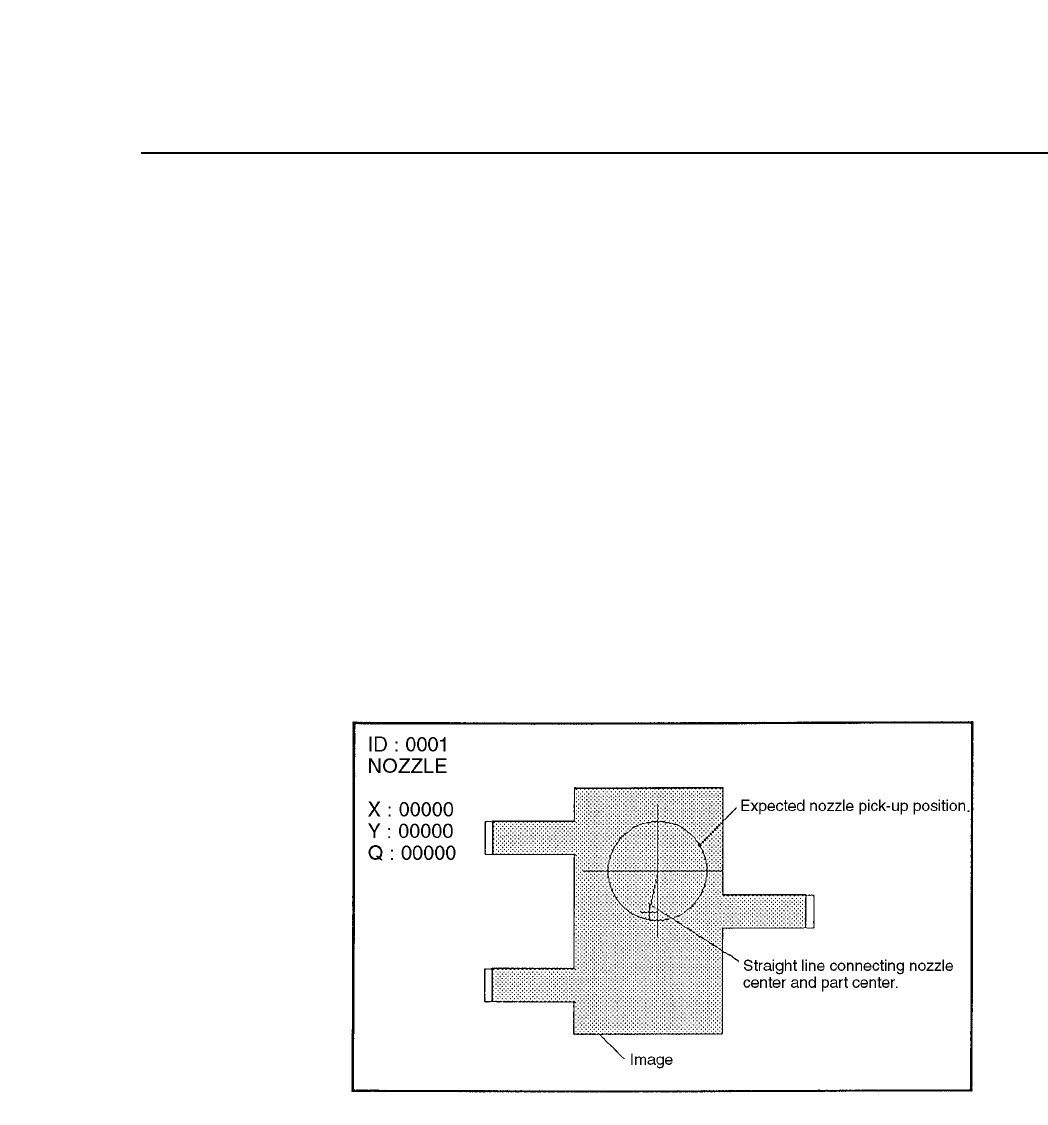

(3) Pickup Error Display
5 – 4Version 2.0
