Chapter 1 T race Mode Part 5 No. 1 T ole A display of the inspection results graph laid over the tolerance graph is carried out. When either the [REINSPECT] or [ACQR INSPECT] vision command is carried out this flag will …
Chapter 1 Trace ModePart 5
(2) Tolerance Error Display
(3) Pickup Error Display
5 – 4Version 2.0
Chapter 1 Trace ModePart 5

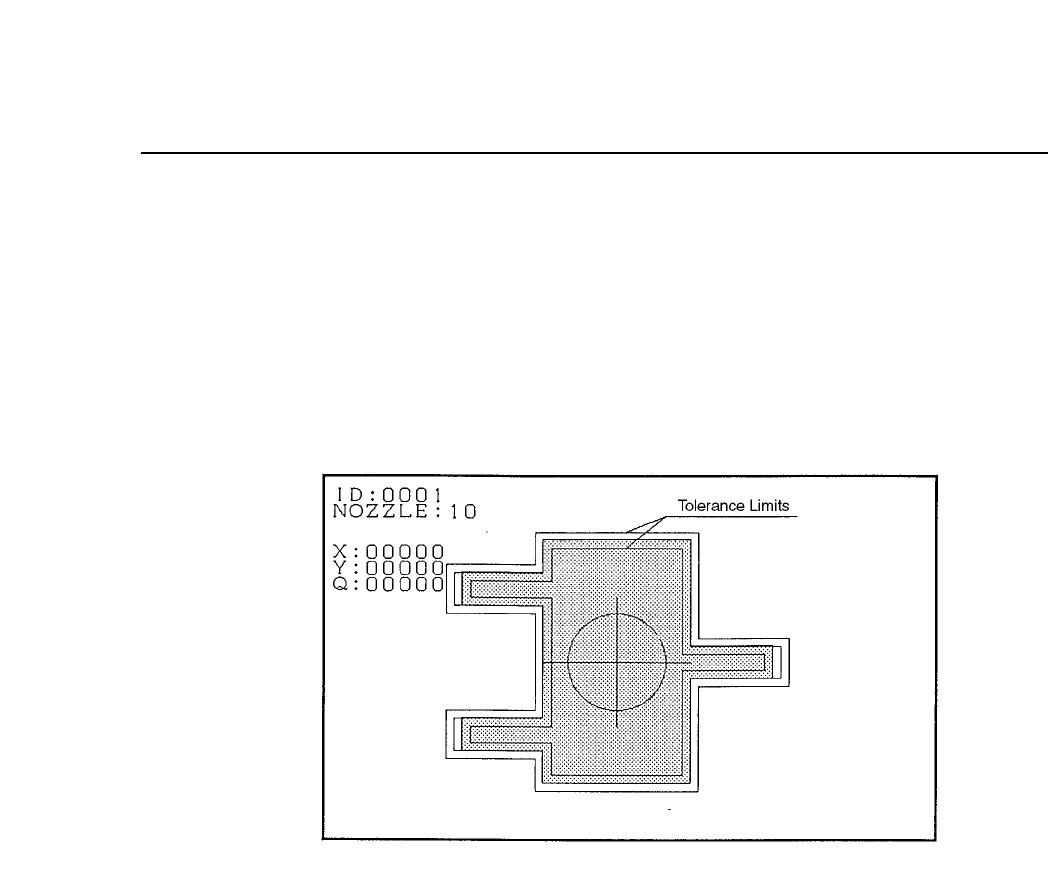

No. 1 Tole
A display of the inspection results graph laid over the tolerance
graph is carried out. When either the [REINSPECT] or [ACQR
INSPECT] vision command is carried out this flag will
automatically be set to ON. A graphic display of the inspection
reults is laid over the tolerance information.
Tolerance Display Mode
No. 3 Point
In accordance with the algorithm the position and size of each
observation window will display along the entire inspection
distance.
5 – 5Version 2.0
Chapter 1 Trace ModePart 5

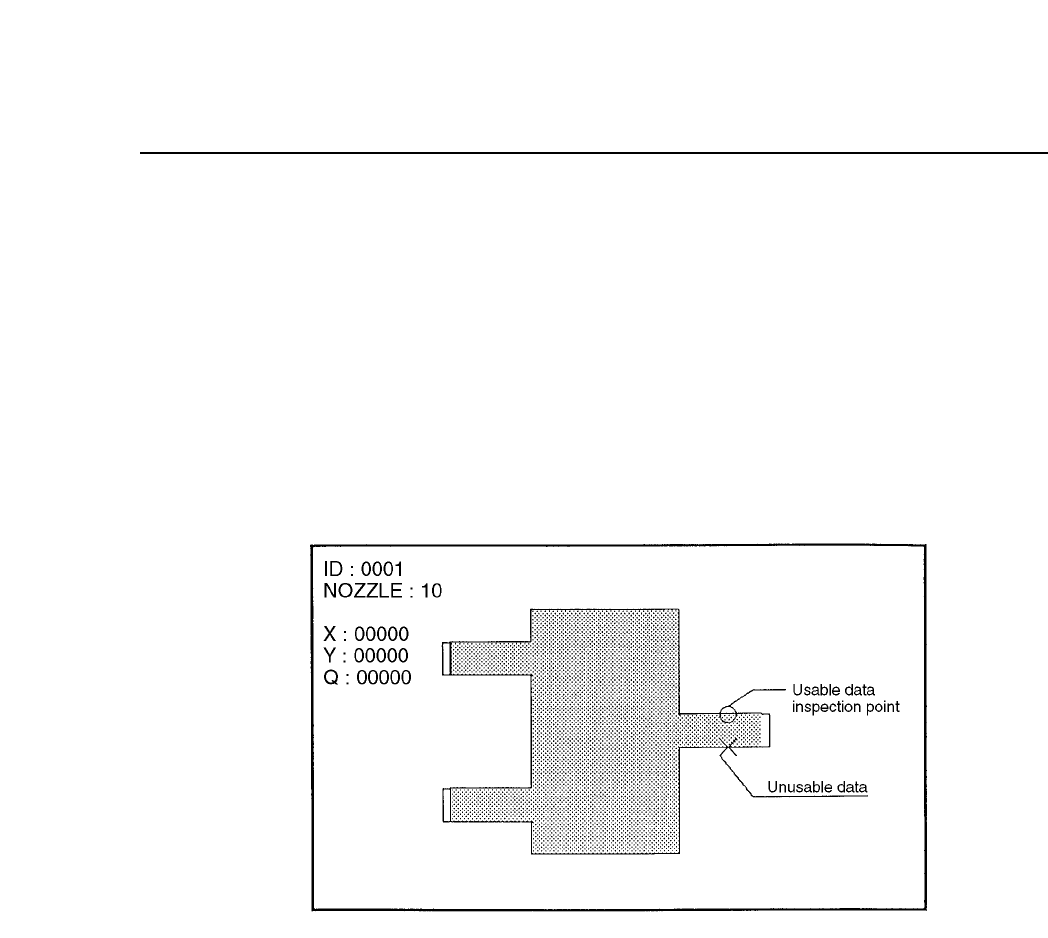

No. 4 Line
Display of observation points is carried out. For example, if calipers
are used then by searching for the caliper boundaries and using the
boundary points as data, the algorithm will be able to make use of
these observation points to display a graph.
If the observation point that has been found can be used as data
then it will be indicated by an [o] and if the observation point found
is not suitable foe use as data then it will be indicated by an [x].
Observation Point Display Mode
No. 5 Line
Display of the auxilary observation lines is carried out. These
auxilary observation lines can be displayed when seeking to base
these lines on the observation points. In determining the auxilary
observation lines the obsevation points that are used are indicated
by an [o] while the observation points that are not used are
indicated by an [x]. In addition, the results of the angle finder and
the output results of the other essential tools are displayed for
finding the blob center of gravity and the direction of inertia of the
main axis.
No. 13 Color
This is used to change the color of the graphic display to black.
Normally this is not set in which case the display appears in white.
