DEUKYX 2-33 193-41 10 3.2 Maschinen-Informationsliste Fehler-Code (HEX) Anzeigebereich A Anzeigebereich B 80f906 Nozzle auto. Replace Nozzle is replaced automatically because of a lowering of pick-up rate. There is not s…
DEUKYX
2-32193-4110
3.2 Maschinen-Informationsliste
Fehler-Code
(HEX)
Anzeigebereich A Anzeigebereich B
80f002 Auto Opn.Mode Stop Auto Opn.Mode.
80f003 Auto Opn.Mode Stop Auto Opn.Mode. (Error stop)
80f101 ACV Registration Comp.Reld. execution.
80f102 ACV Registration Splicing execution.
80f201 Auto Cover Locked
The safety door is locked for pass running. Please stop the machine and
move the head if there is a head on the conveyor. There is an interference
with PCB if a head is on the conveyor.
80f202 Auto Cover Locked
Connector (Block1) of Feeder Base is taken off. Do not take it off when
Feeder Base is rising up. Please go on if it’s on operating.
80f203 Auto Cover Locked
Connector (Block2) of Feeder Base is taken off. Do not take it off when
Feeder Base is rising up. Please go on if it’s on operating.
80f204 Auto Cover Locked
Manual Movement and Load. This operation will be done while [START]
button is pushed. Please push the button continuously before PCB moves to
the proposal position.
80f301 Barcode Detection The bar code data is not read. Bar code ID is generated automatically.
80f302 Barcode Detection Illegal bar code ID. Bar code ID is generated automatically.
80f401
FF func. for Print Pos
Correction
Standard PCB Mounting will be executed without Print Pos. Correction
because the standard of Device’s Coordinates for PP data in Printer differs
from it in Mounter.
80f402
FF func. for Print Pos
Correction
Standard PCB Mounting will be executed without Print Pos. Correction
because Global Recognition of PP Data does not have 2 points.
80f403
FF func. for Print Pos
Correction
Standard PCB Mounting will be executed without Print Pos. Correction
because Unit PCB Recog or Local PCB Recog of PP Data is being used.
80f404
FF func. for Print Pos
Correction
Standard PCB Mounting will be executed without Print Pos. Correction
because could not receive Print Pos. Correction values normally.
80f405
FF func. for Print Pos
Correction
Standard PCB Mounting will be executed without Print Pos. Correction
because of time-out of receiving Print Pos. Correction values.
80f501
Auto Cover Locked
Start
After Auto Cover Locked, it is stopped because NG Items are found by Free
Check before product opreation. Please conrm the guide for start-up.
80f601 Feeder Base Connector for Feeder Cart is not connected.
80f602 Feeder Base Not turned Feeder Cart on yet.
80f603 Feeder Base Communicating with Feeder.
80f701
Library Tape feeding
High-speed
It is necessary to take out and in a feeder if tape high-speed feeding is set
enable.
80f801
Unit PCB recognition
data transfer func.
There is a possibility that the operation changed to PCB recog. manual
alignment during data processing, or PCB which is being data processing is
taken off. Please change the same current program in the head mounter (Unit
1). Or, set unit PCB recog. data communication of operation mode [Disable]
for a moment, and then set [Enable] in the head mounter (Unit 1).
80f901 Nozzle auto. Replace Nozzle is replaced automatically because of a lowering of pick-up rate.
80f902 Nozzle auto. Replace
Pick-up rate of nozzle went down, and nozzle was replaced automatically.
But nozzle position teaching failed.
80f903 Nozzle auto. Replace
Pick-up rate of nozzle went down, but it is interrupted to replace nozzle
automatically.
80f904 Nozzle auto. Replace
Pick-up rate of nozzle went down. It planned to replace nozzle automatically,
but there was no place to store it.
80f905 Nozzle auto. Replace
Pick-up rate of nozzle went down. It planned to replace nozzle automatically,
but there was no spare nozzle.
DEUKYX
2-33193-4110
3.2 Maschinen-Informationsliste
Fehler-Code
(HEX)
Anzeigebereich A Anzeigebereich B
80f906 Nozzle auto. Replace
Nozzle is replaced automatically because of a lowering of pick-up rate.
There is not spare nozzle anymore.
80fa01
Automatic correction
of missed standard
mark
Standard mark position offset is automatically corrected.
80fb01 Comp. Insertion error A component could not insert it in a PCB. Recovery is performed.
80fc01 Auto Retry Start Auto retry mode is starting.
80fd01 Label Feeder Check Check the label holding bracket is closed.
DEUKYX
2-34193-4110

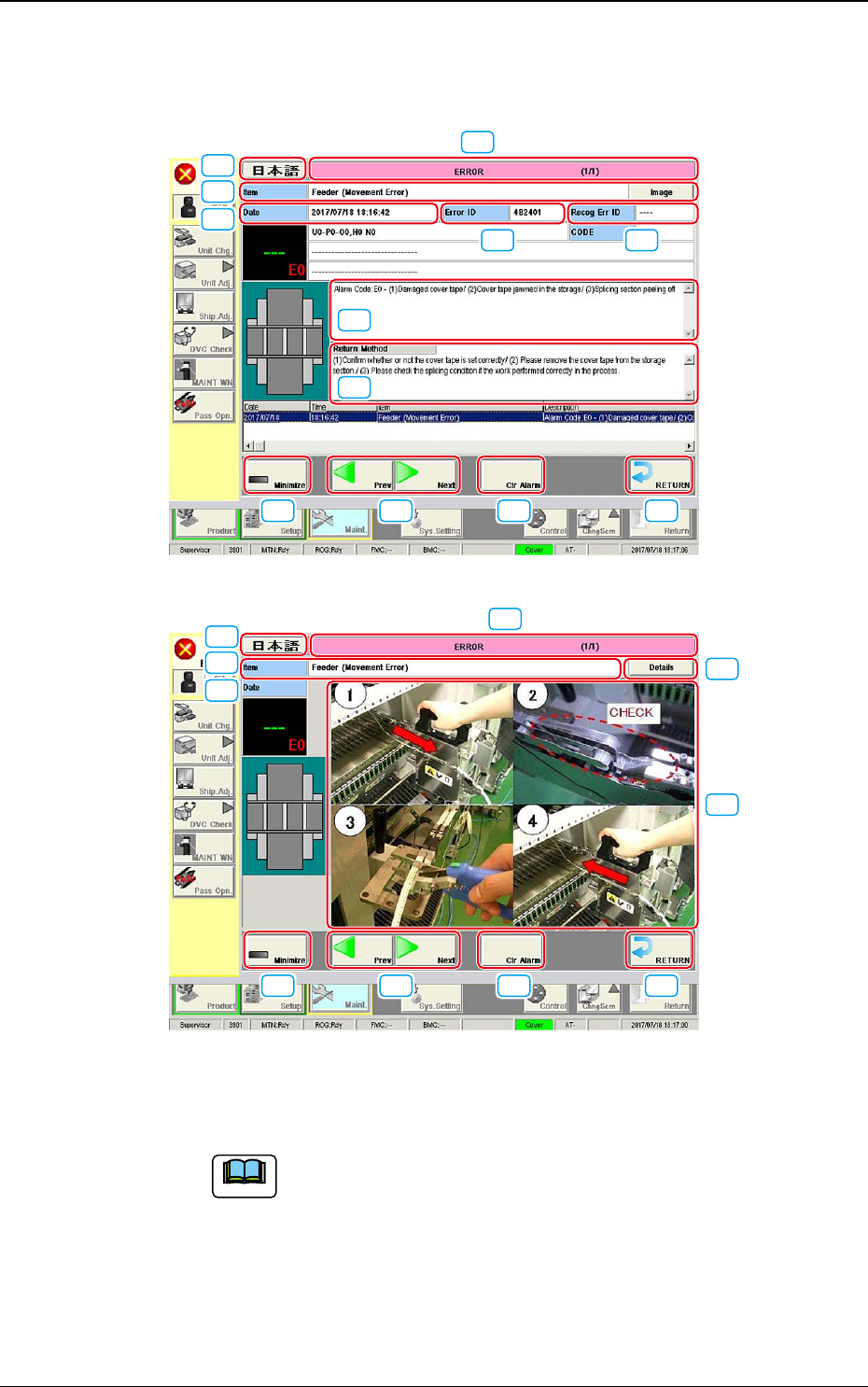

4. „Error“-Bildschirms
4. „Error“-Bildschirms
Erkennt die Mschine einen Fehler, wird der folgende Fehlerbildschirm angezeigt.
[7]
[10]
[11] [12] [13] [14]
[1] [2]
[3]
[6]
[4]
[5]
F4B4
[7]
[8]
[9]
[10]
[11] [12] [13] [14]
[3]
[6]
F4B5
[1] Error ID
Die Fehlerart wird über eine 6-stellige Zahl angezeigt.
Hinweis
Verwenden Sie, wenn ein Fehler auftritt, diese Zahl als Index und schauen
Sie in „Kapitel 3 Fehlerbehebung anhand der Error ID“, um weitere
Informationen zu erhalten.
[2] Recog Err ID
In diesem Textfeld wird die Fehlerart wird über eine 8-stellige Zahl
angezeigt.
