Service Ma nual W PC5 / WPC6 3.7.14 Sensor 15 NSM-Modul (WPC6) – Safety flap ope n Spare Part • Sensor safet y flap open [03 056958-xx] Removal / Install ation ➢ Remove the c over on the lo ad unit (see "3.5. 1.1 Re…
Service Manual WPC5 / WPC6
➢ Fix the load axis drive motor (see "3.5.2 Replacing the Load Axis Drive Motor" [➙ 3-34]).
➢ Fit the cover back on the loading unit.

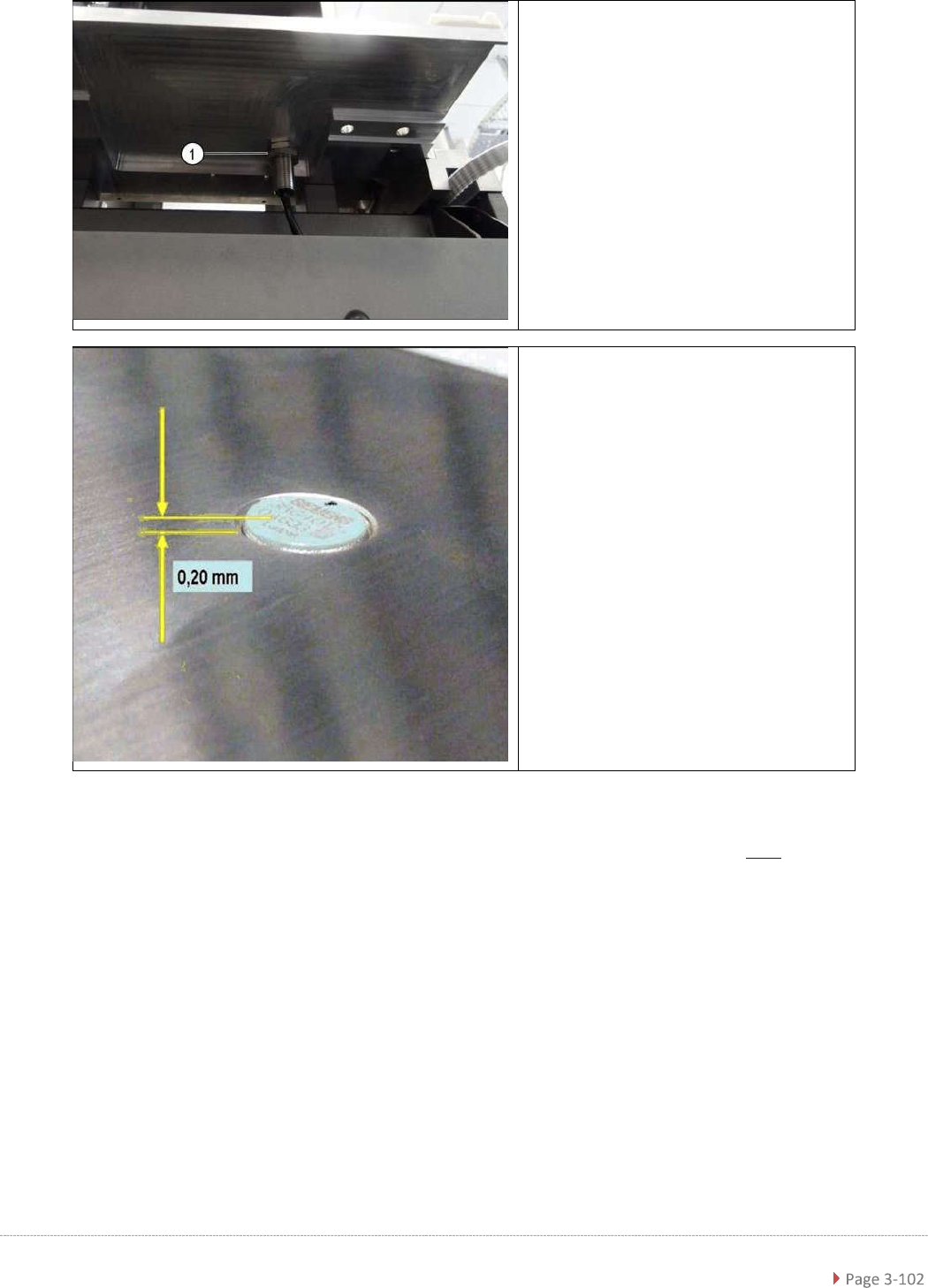

➢ Loosen the counternut fastening
the sensor on the underside of the
base plate and unscrew the sensor
(1).
➢ Screw the new sensor into place.
➢ The sensor should protrude at least
0.2 mm above the table plate.
➢ Use a counternut to fix the sensor
on the underside
(1).
➢ Reconnect connector X4 to the
circuit board.
Service Manual WPC5 / WPC6
3.7.14 Sensor 15 NSM-Modul (WPC6) – Safety flap open
Spare Part
• Sensor safety flap open [03056958-xx]
Removal / Installation
➢ Remove the cover on the load unit (see "3.5.1.1 Remove the Cover on the Load Unit" [➙ 3-
32]).
➢

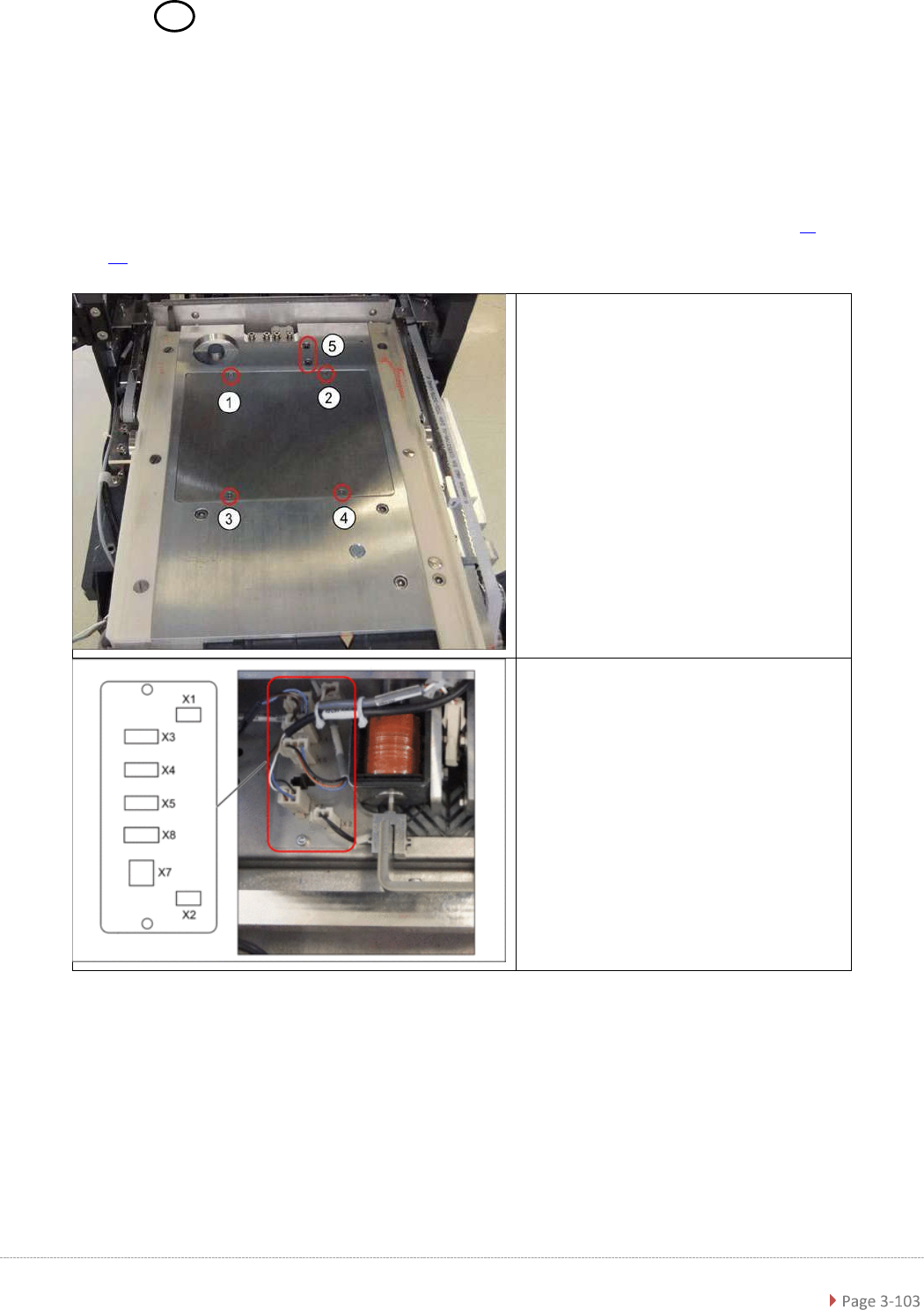

Loosen the screws marked at 1 to 4
and lift off the cover.
➢ Disconnect connector X3 for the
safety flap when open from the
circuit board.
Service Manual WPC5 / WPC6
➢ Fit the cover back on the loading unit and screw tight.
See also...
3.5.2
Replace the Load Axis Drive Motor [➙ 3-34]
➢ Unscrew the sensor (1) from its
mount.
➢ Screw the sensor into its mount.
➢ Use a feeler gauge to set the
distance between the safety flap
and the sensor to 0.2 mm.
➢ Reconnect connector X3 to the
circuit board.
