Service Manual WPC5 / WPC6
➢
Loosen the two motor support fastening screws (4) sealed with locking varnish.
➢ Loosen (do not remove) the tensioning screw (5) on the tensioning device. This relaxes the
drive toothed belt.
➢ Loosen and remove the 2 fastening screws (2) and then remove the drive motor with motor
support. Make sure that the drive toothed belt is not buckled or damaged..
➢ Remove the toothed belt.
➢ Mark the installation position of the drive motor on the motor support.
➢ Loosen the 4 drive motor fastening screws (4) on the motor support.
➢ Fit the new drive motor with the 4 fastening screws (4) to the motor support. Observe the
original installation position.
NOTICE
Screw joints difficult to loosen
Each screw joint has an O-ring seal. This can make opening the screw joint difficult. Use a pair of
water pump pliers to help you unscrew the connection. Make sure that the O-
rings do not fall out of
the screw joint and that they are not damaged. When refitting, grease the thread and the O-rings
with a little Vaseline.

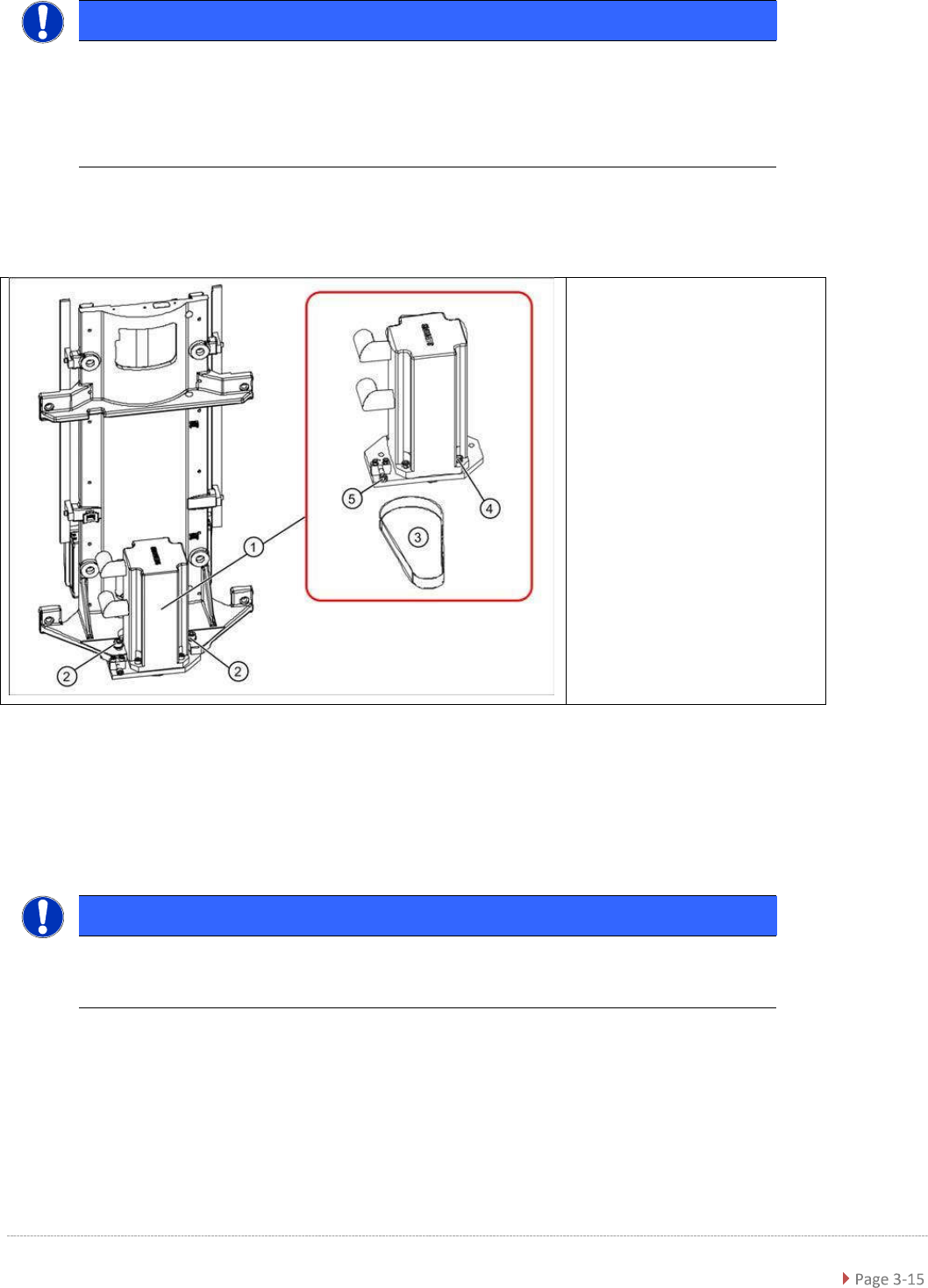

(1)
Lifting axis drive motor.
(2)
2 x motor support fastening
screws with drive motor.
(3)
Toothed belt for the drive
(4)
4 x drive motor fastening
screws
(5)
Tensioning screw
NOTICE
Tower moves down
The tower moves down about 1 mm, to the bottom, red bumper
Service Manual WPC5 / WPC6
Installation
➢ Loosely fix the motor support and drive motor into the installation position, with the 2
fastening screws (2).
➢ Reconnect the electrical connections with the motor. When fitting, note that there is an anti-
twist lock (notch) present. Tighten the connection appropriately.
➢ Run the drive toothed belt around the motor pinion and the spindle toothed wheel and
tension (pretension) the toothed belt at the slot provided, with the help of the motor support.
➢ Set the final belt tension. To do this, tension the drive toothed belt at the tensioning device,
with the help of the tensioning screw (5). This moves the motor support accordingly in the
slots.
⇨
: Set the belt tension to +/- 10Hz.
➢ Tighten the 2 fastening screws (2) on the motor support, check the belt tension and adjust
where necessary.
➢ Seal the 2 fastening screws (2) with locking varnish.
➢ Calibrate the lifting axis..
3.3.3 Replacing the Lifting Axis Toothed Belt
Spare Part
• Toothed belt 16AT5/450 [03046971-01]
(1)
Lifting axis drive motor.
(2) 2 x motor support fastening screws
with drive motor.
(3) Toothed belt for the drive
(4) 4 x drive motor fastening screws
(5)
Tensioning screw
Service Manual WPC5 / WPC6
Removal / Installation
The drive motor (1) of the lifting axis is located behind the front cover. If the drive motor is
disconnected from the power supply, the drive is fixed with a brake.
CAUTION
Do not move the motor against the brake
Do not move the lifting axis motor shaft against the brake. This could impair the braking function or
damage the brake.
➢ Loosen the two motor support fastening screws (2) sealed with locking varnish.
➢ Loosen (do not remove) the tensioning screw (5) on the tensioning device. This relaxes the
drive toothed belt.
➢ Loosen and remove the 2 fastening screws (2) and then remove the toothed belt (3).
➢ Loosely fix the motor support and drive motor into the installation position, with the 2
fastening screws (2).
➢ Run the new drive toothed belt around the two toothed wheels and tension (pretension) the
toothed belt at the slot provided, with the help of the motor support.
➢ Set the final belt tension. To do this, tension the drive toothed belt at the tensioning device,
with the help of the tensioning screw (5). This moves the motor support accordingly in the
slots.
⇨
: Set the belt tension to .
➢ Tighten the 2 fastening screws (2) on the motor support, check the belt tension and adjust
where necessary.
➢ Seal the 2 fastening screws (2) with locking varnish.
➢ Calibrate the lifting axis.
NOTICE
Tower moves down
The tower moves down about 1 mm, to the bottom, red bumper.
