TM-300 Ope ration Ins truct ion s 61170613. fm Page 7 of 27 Assemb l ing Proced u re Figur e 2.1

TM-300 Operation Instructions 61170613.fm Page 6 of 27

Cover Tape Guide #1 (Ref. E)

Loosen the screw holding the tape guide (5/

32” allen wrench) and position at a 45° angle.

Tighten screw.

Feed Reel Support Arm (Ref. F)

Remove the black knob from the loading track

support arm (right side). Slide the feed reel

support arm onto the threaded rod, position it

at about 45°, and secure with the black knob.

Control Module Base Plate (Ref. G)

Slide the base plate into the control module

pedestal (Ref. K).

Control Module (Ref. H)

Place the control module on the control mod-

ule base plate. Connect all cables to the

matching connectors. (See External Connec-

tions, Page 9-10).

Assembling Procedure

Refer to Figure 2.1 for information below.

You will need:

1. 3/16” hex wrench

2. 5/32” hex wrench

3. 80 PSI air pressure system

Follower Track Support Arm (Ref. A)

Using the 3/16” hex wrench, attach the sup-

port arm to the base plate with the (5) bolts

provided.

Take-up Reel Drive Arm (Ref. B)

Remove the black knob from the follower track

support arm (Fig. 1, Ref. A). Slide the take-up

reel drive arm onto the threaded rod, position

it at about 45°, and secure with the black

knob.

Cover Tape Reel Support (Ref. C)

Using the 5/32” hex wrench, attach the cover

tape reel support to the seal assembly up-right

plate with the (2) bolts provided (See Fig. 2,

Ref. A). Remove the protective paper from

the cover tape front and rear covers (Ref. D)

and assemble as shown on page 3.

TM-300 Operation Instructions 61170613.fm Page 7 of 27

Assembling Procedure

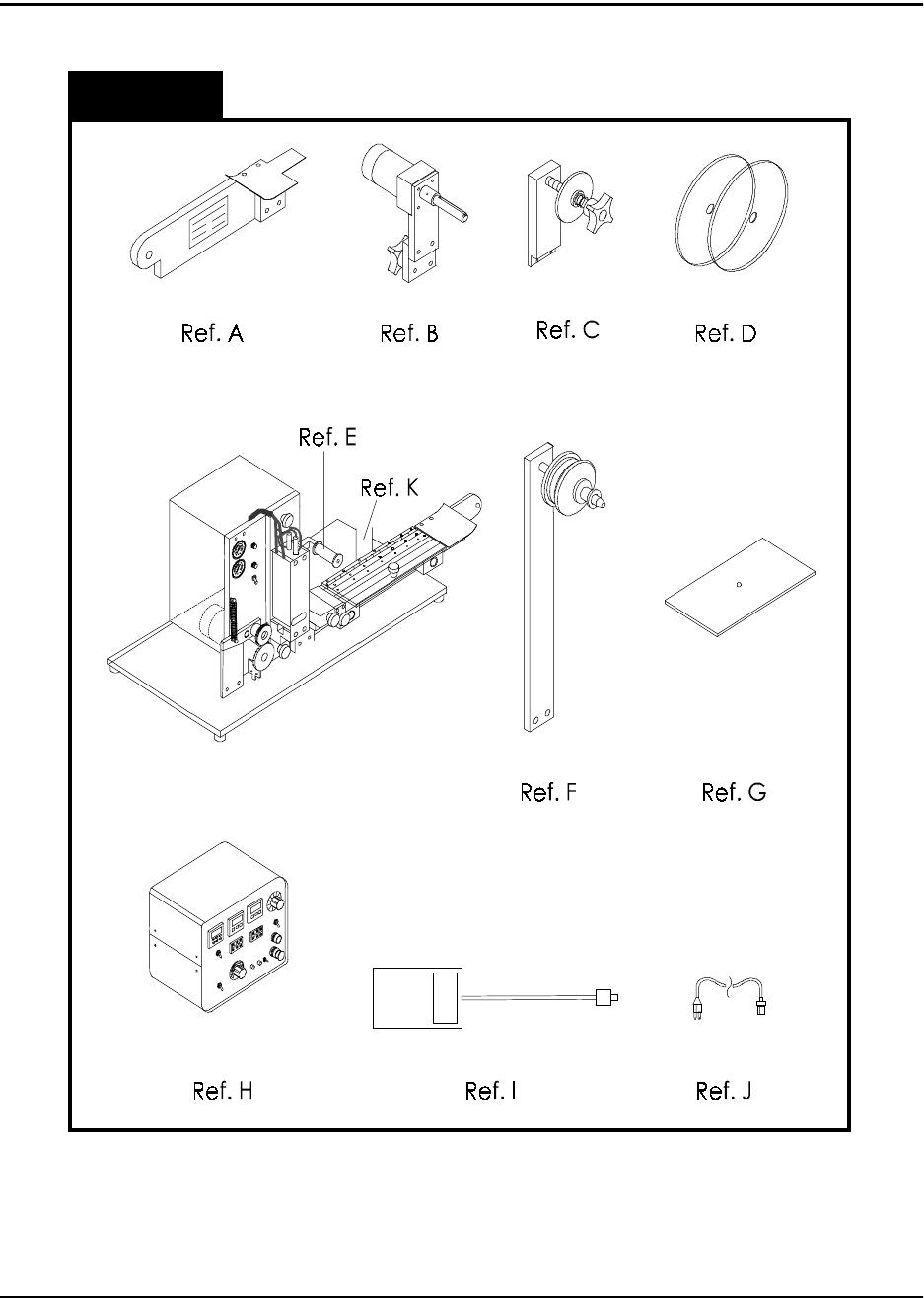

Figure 2.1

TM-300 Operation Instructions 61170613.fm Page 8 of 27

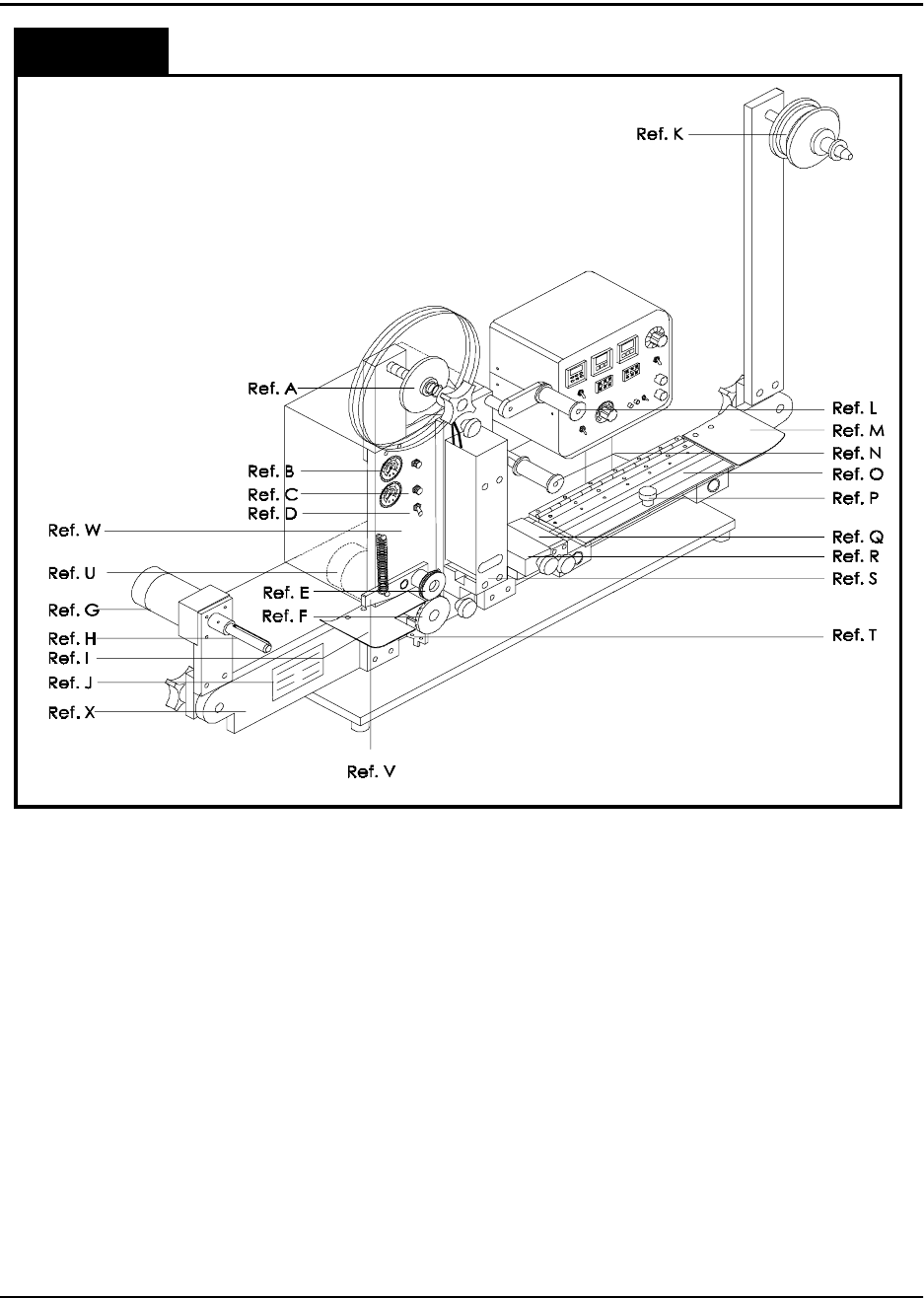

Completed Mechanical Assembly

Figure 2.2
